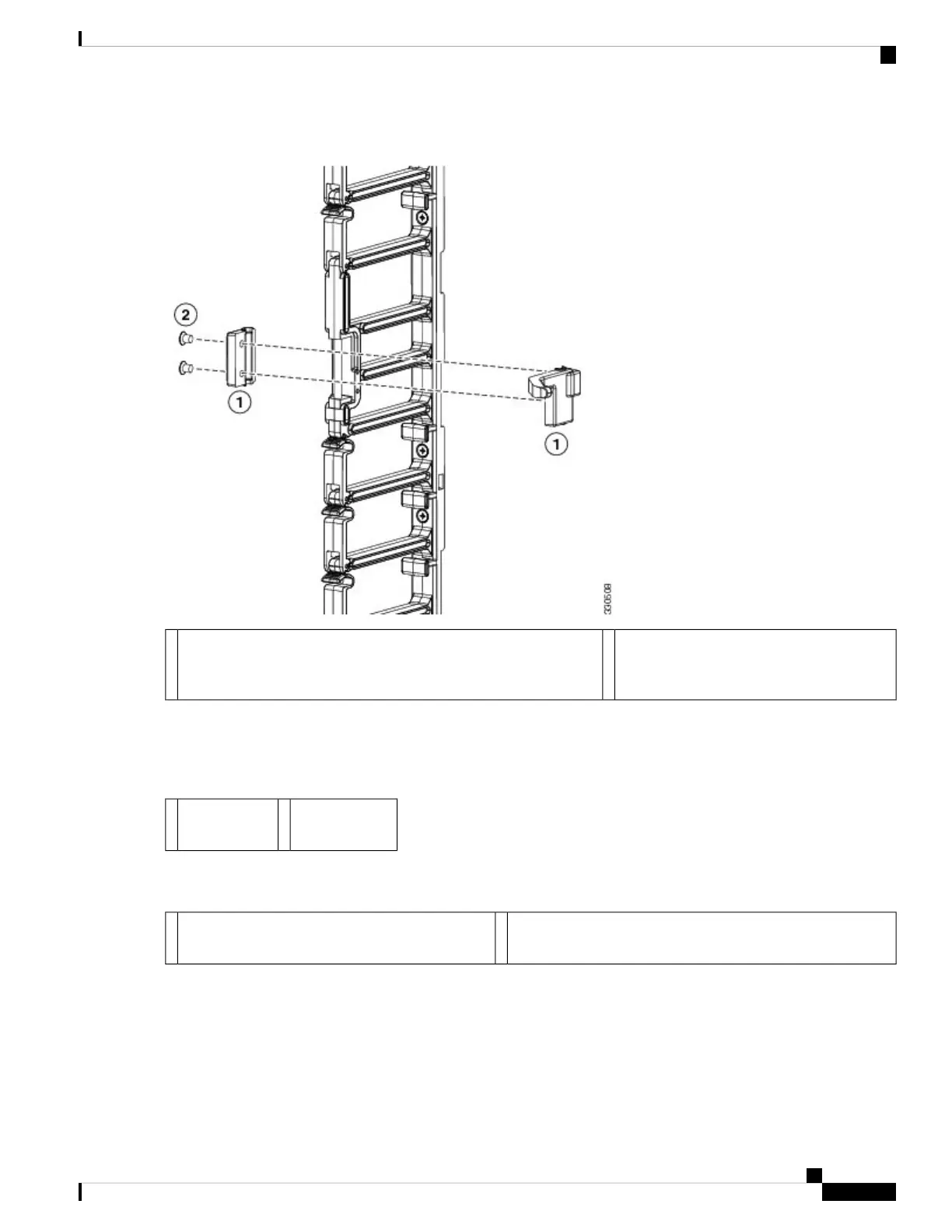

Figure 29: Assembling the Right Door Stop
Use two M4 flat head screws to fasten the
two door stop pieces together.
2Assemble the right and left sides of the right door stop around the
cable management post. Be sure that each bushing sticks out above
or below the assembled door stop.
1
Step 4 Position the hinge bracket at the bottom of the two cable management side frames and align two alignment pins on the
hinge bracket (part number 700-31339-01) to two alignment holes in the chassis as shown in . Push the hinge bracket
to the chassis so that the pins go into the chassis. Two screw holes in each of the cable management side frames should
align to screw holes in the hinge bracket.
Alignment
holes
2Alignment
pins
1
Step 5 Attach the bracket to the chassis and cable management frames with eight loosely fastened M4x8 screws, as shown in
.
Four M4x8 pan-head screws that fasten the hinge bracket to
the left and right cable management assemblies.
2Four M4x8 pan-head screws that fasten the hinge
bracket to the chassis.
1
Step 6 Tighten the four M4x8 screws that fasten the hinge bracket to the chassis to 11 to 15 in-lb (1.2 to 1.7 N·m).
Step 7 Tighten the four M4x8 screws that fasten the hinge bracket to the cable management frame to 11 to 15 in-lb (1.2 to 1.7
N·m).
Step 8 Align the two captive screws on the air intake frame to the two screw holes below the cable management frames on
the chassis as shown in Figure 30: Positioning the Air Intake Frame on the Chassis, on page 64.
