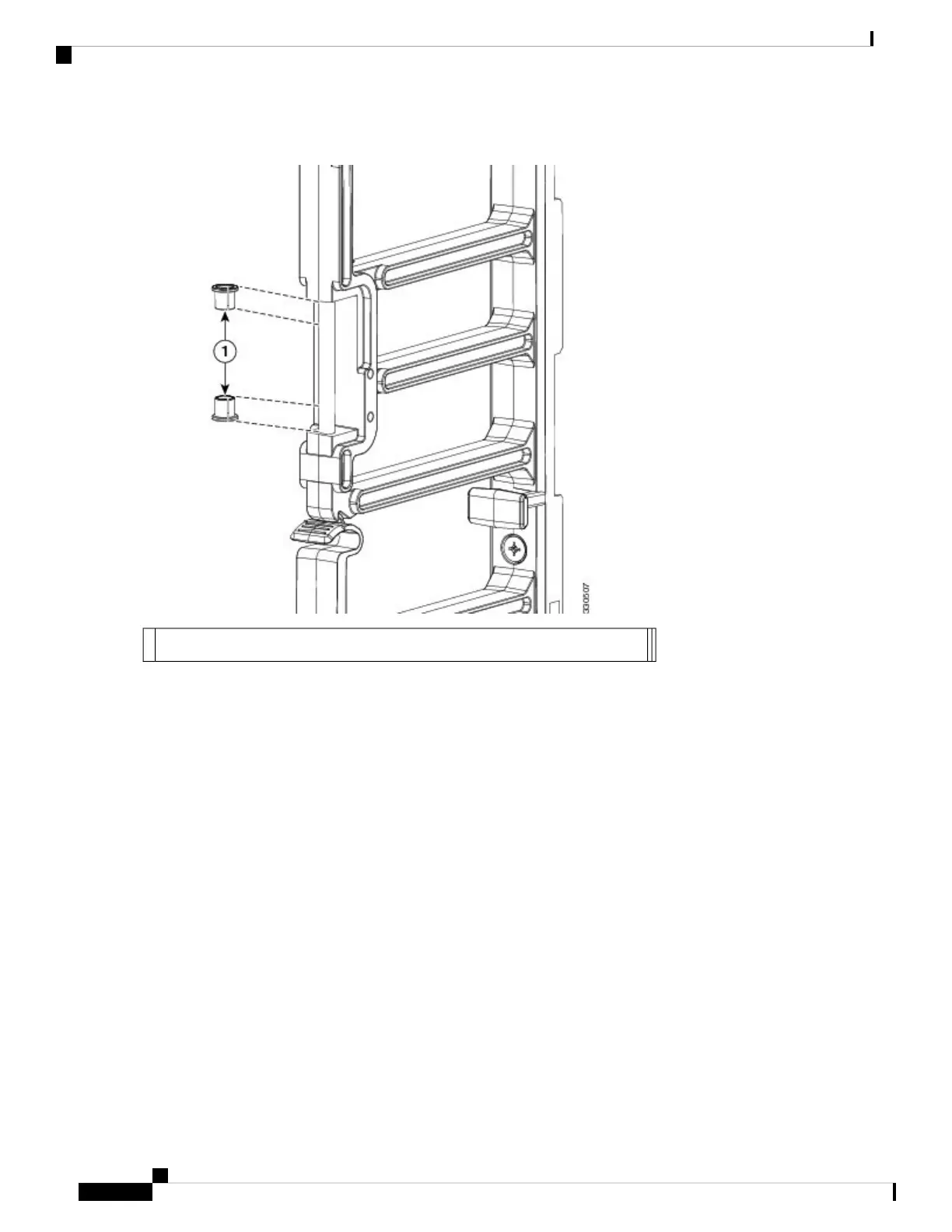

Figure 28: Placing Two Bushings on a Cable Management Frame Hinge Post
Split open the bushings and fit them around the cable management frame post.1
Step 3 Assemble the two pieces of the right door stop over the bushings and post. Fasten the two pieces together with two M4
flathead screws (see Figure 29: Assembling the Right Door Stop, on page 63).
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
62
Installing a Cisco Nexus 7009 Chassis
Installing the Front Door and Air Intake Frame
