Step 4 Remove the adhesive label from one of the two system grounding pads, and secure the grounding wire lug to the grounding
pad with two M4 screws. Figure 38: Grounding Pad on the Front of the Cisco Nexus 7010 Chassis, on page 81 shows
the location of the grounding pads on the front side of the chassis. Figure 39: Grounding Pad on the Rear of the Cisco
Nexus 7010 Chassis, on page 82 shows the location on the rear of the chassis. Ensure that the grounding lug and the
grounding wire do not interfere with other switch hardware or rack equipment.

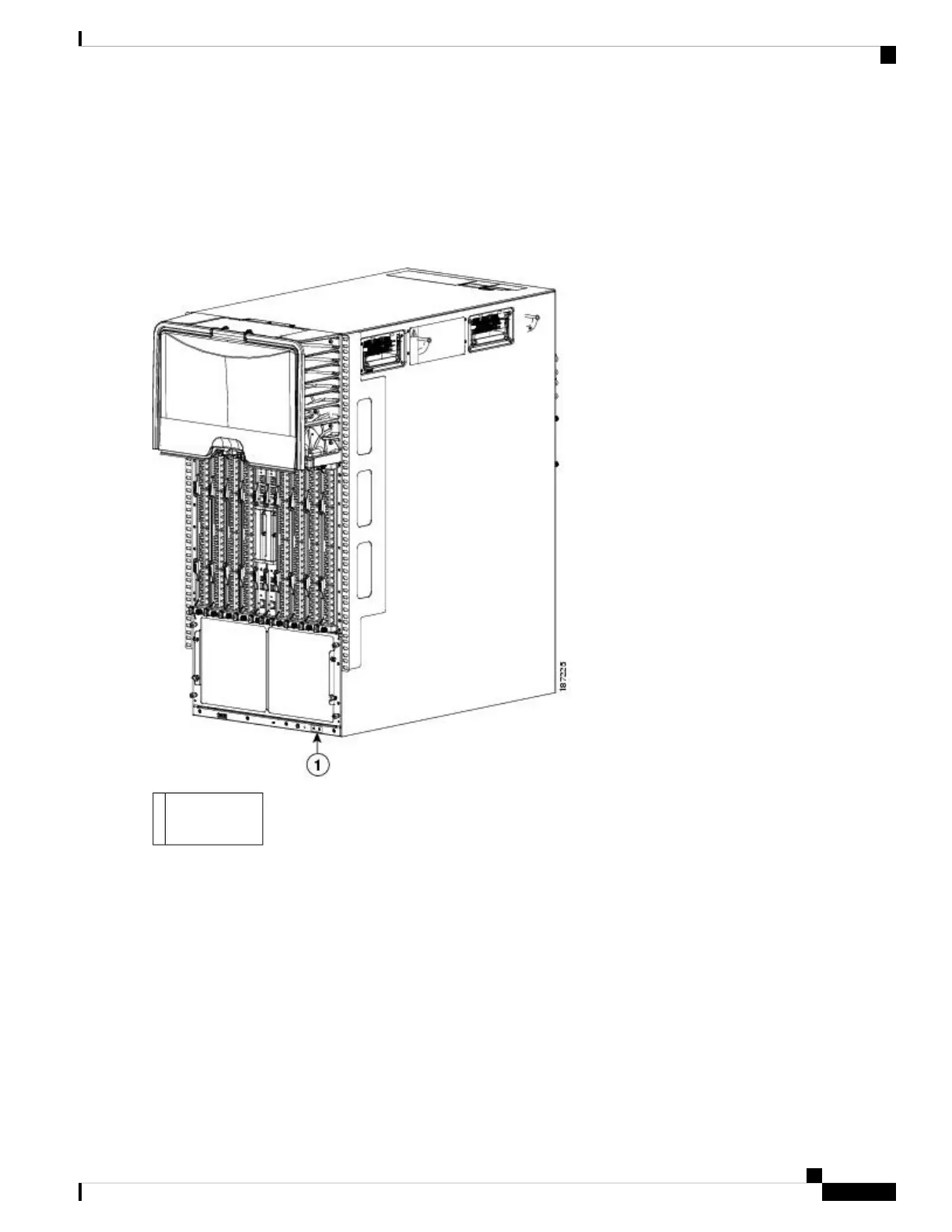

Figure 38: Grounding Pad on the Front of the Cisco Nexus 7010 Chassis
Grounding
pad
1
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
81
Installing a Cisco Nexus 7010 Chassis
Connecting the System Ground
