Configuring a Gateway-to-Gateway VPN Tunnel Between RV0xx Series Routers
To p o l o g y O p t i o n s
Cisco Small Business RV0xx Series Routers Administration Guide 172
D
VPN Mesh Topology
In a VPN mesh topology, each VPN router can communicate securely with all other
VPN routers. Multiple secured tunnels extend from each site to all other sites.
In the following example, four sites are connected in a VPN mesh topology. Three
VPN tunnels extend from each site, providing secure communications with all
other sites. Data can travel directly between any two sites.

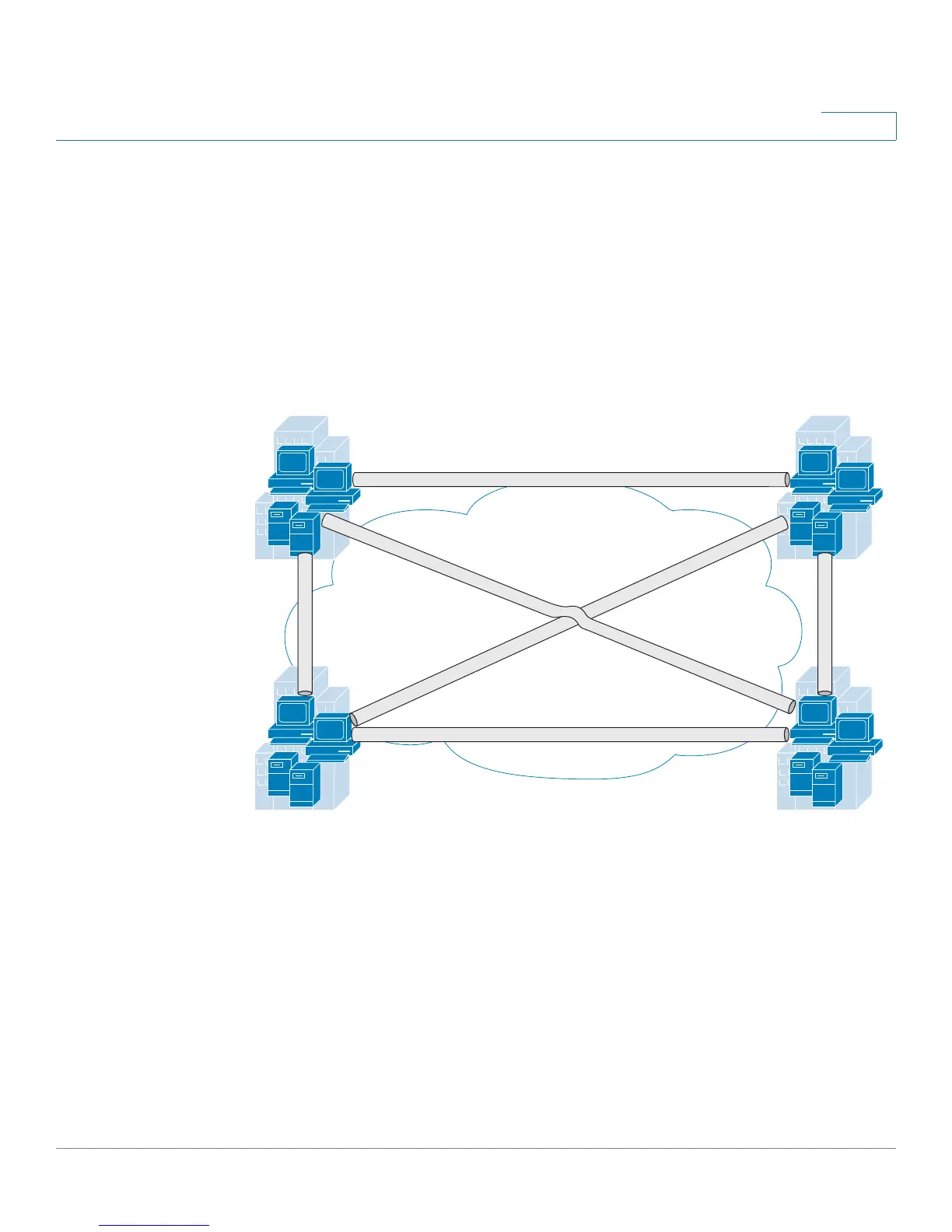

Figure 2 Mesh
This topology requires much more configuration on each router. However, it works
well in a complicated network with data traveling between multiple sites. Because
all devices have direct peer relationships with one another, this design prevents
the bottlenecks that can occur with a hub-and-spoke topology. This design also
ensures that if one site is down, the other sites can continue to exchange data.
NOTE When the number of nodes in a full mesh topology increases, scalability may
become an issue—the limiting factor being the number of tunnels that the devices
can support at a reasonable CPU utilization.
Site 1 Site 2
Site 3 Site 4
VPN Tunnel
VPN Tunnel
VPN
Tunnel
VPN
Tunnel
284287
VPN
Tunnel
VPN
Tunnel
Internet

Cisco RV082 - Small Business VPN Router Specifications

General

VPN Tunnels	50
DHCP Server	Yes
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Humidity	10% to 85% non-condensing
LAN Ports	8 x 10/100 Mbps RJ-45
VPN Protocols	IPSec, PPTP, L2TP
Firewall	SPI
Encryption	DES, 3DES, AES
Memory	8 MB Flash, 32 MB DRAM
Operating Temperature	0 to 40°C
Storage Temperature	-4 to 158°F (-20 to 70°C)
Weight	0.69 kg
