Cisco RV082 - Small Business VPN Router User Manual

VPN
Viewing the Summary Information for VPN
Cisco Small Business RV0xx Series Routers Administration Guide 126
9
Viewing the Summary Information for VPN

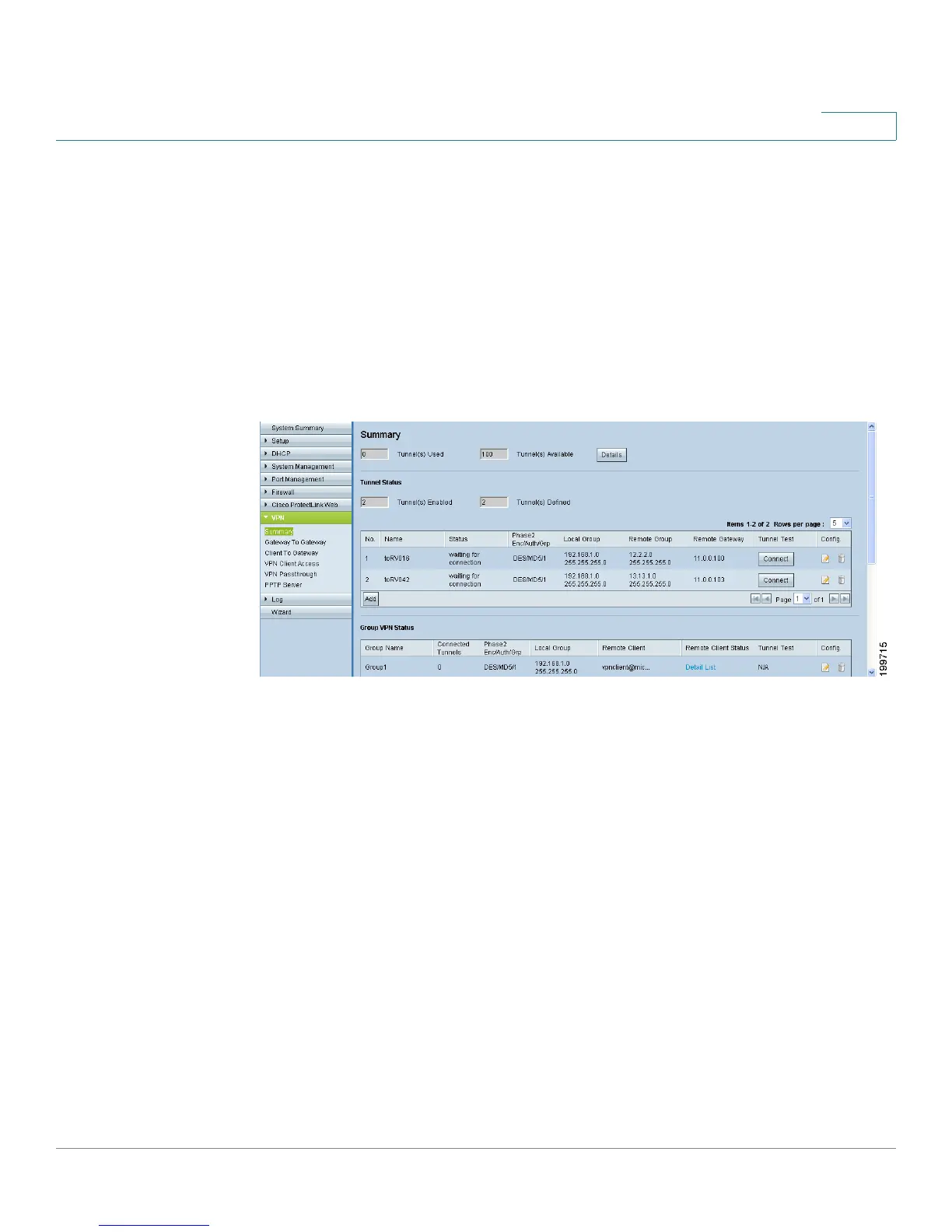

The VPN > Summary page displays general information about the router’s VPN
tunnel settings. The router supports up to 100 tunnels.
NOTE If the PPTP Server is enabled, summary information about PPTP clients appears on
the VPN > PPTP Server page. For more information, see Setting Up PPTP Server,
page 150.
To open this page: Click VPN > Summary in the navigation tree.
Summary
• Tunnel(s) Used: The number of VPN tunnels in use.
• Tunnels Available: The number of available VPN tunnels.
• Detail: Click Detail for more information. Click Refresh to update the data,
or click Close to return to the VPN > Summary page. For each VPN tunnel,
the No., Name, Status, Phase 2 Enc/Auth/Grp, Local Group, Remote Group,
and Remote Gateway will be displayed.

Cisco RV082 - Small Business VPN Router Specifications

General

VPN Tunnels	50
DHCP Server	Yes
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Humidity	10% to 85% non-condensing
LAN Ports	8 x 10/100 Mbps RJ-45
VPN Protocols	IPSec, PPTP, L2TP
Firewall	SPI
Encryption	DES, 3DES, AES
Memory	8 MB Flash, 32 MB DRAM
Operating Temperature	0 to 40°C
Storage Temperature	-4 to 158°F (-20 to 70°C)
Weight	0.69 kg
