Cisco RV082 - Small Business VPN Router User Manual

DHCP
Viewing the DHCP Status Information
Cisco Small Business RV0xx Series Routers Administration Guide 70
4

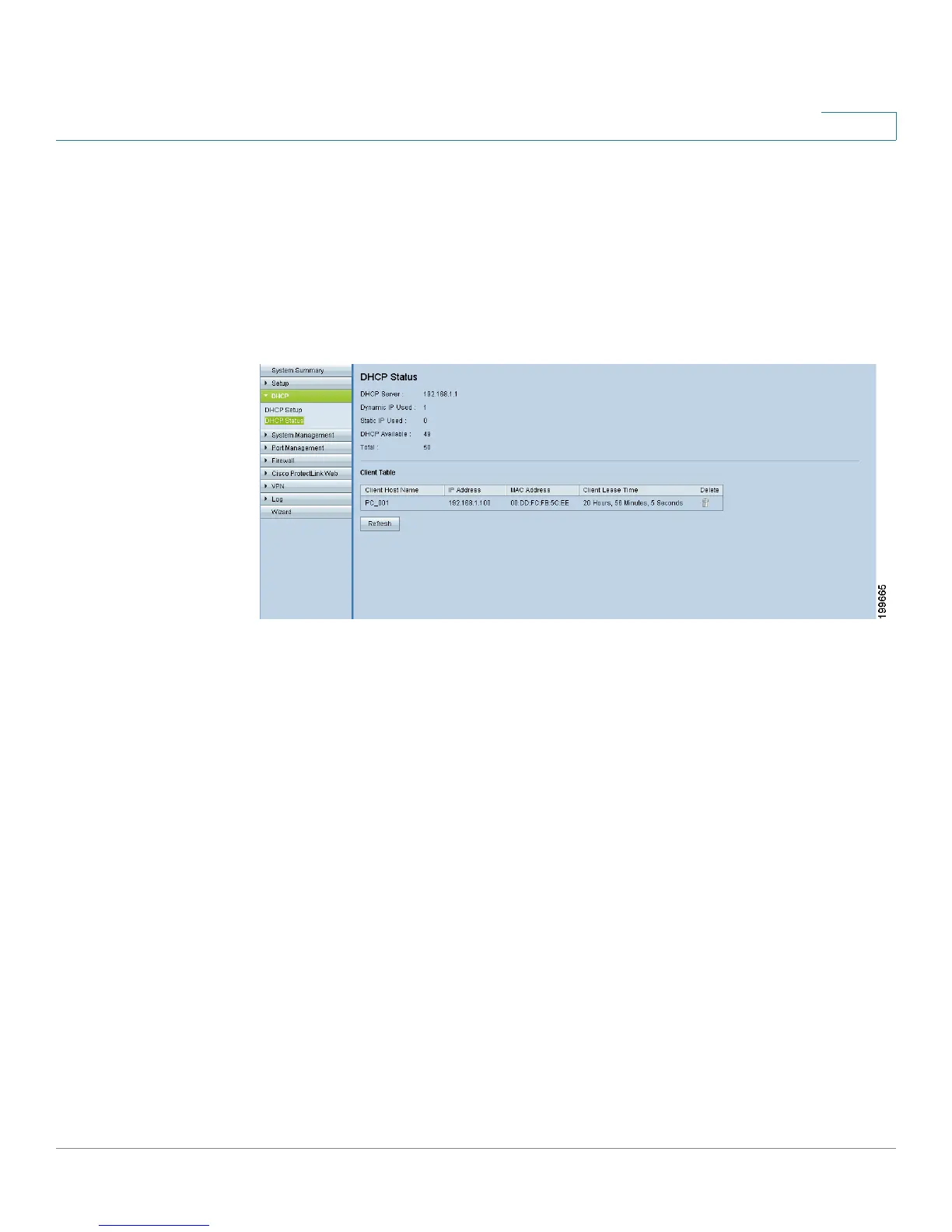

Viewing the DHCP Status Information
Use the DHCP > Status page to view the status of the DHCP server and its clients.
You can click Refresh to refresh the data. To release a client’s IP address, you can
click the Delete icon.
To open this page: Click DHCP > DHCP Status in the navigation tree.
DHCP Server
For the DHCP server, the following information is shown:
• DHCP Server: The IP address of the DHCP server
• Dynamic IP Used: The number of dynamic IP addresses used.
• Static IP Used (IPv4 only): The number of static IP addresses used.
• DHCP Available: The number of dynamic IP addresses available
• Total: The total number of dynamic IP addresses that can be assigned by
the DHCP server.
Client Table
For all network clients using the DHCP server, the Client Table shows the current
DHCP client information. Click the IPv4 tab or the IPv6 tab to view the clients.
Note: The IPv6 tab is available only if you enabled Dual-Stack IP on the Network >
Setup page.
• Client Host Name: The name assigned to a client host.
• IP Address: The dynamic IP address assigned to a client.

Cisco RV082 - Small Business VPN Router Specifications

General

VPN Tunnels	50
DHCP Server	Yes
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Humidity	10% to 85% non-condensing
LAN Ports	8 x 10/100 Mbps RJ-45
VPN Protocols	IPSec, PPTP, L2TP
Firewall	SPI
Encryption	DES, 3DES, AES
Memory	8 MB Flash, 32 MB DRAM
Operating Temperature	0 to 40°C
Storage Temperature	-4 to 158°F (-20 to 70°C)
Weight	0.69 kg
