Managing the Bandwidth Settings
Cisco Small Business RV0xx Series Routers Administration Guide 81
5
Managing the Bandwidth Settings

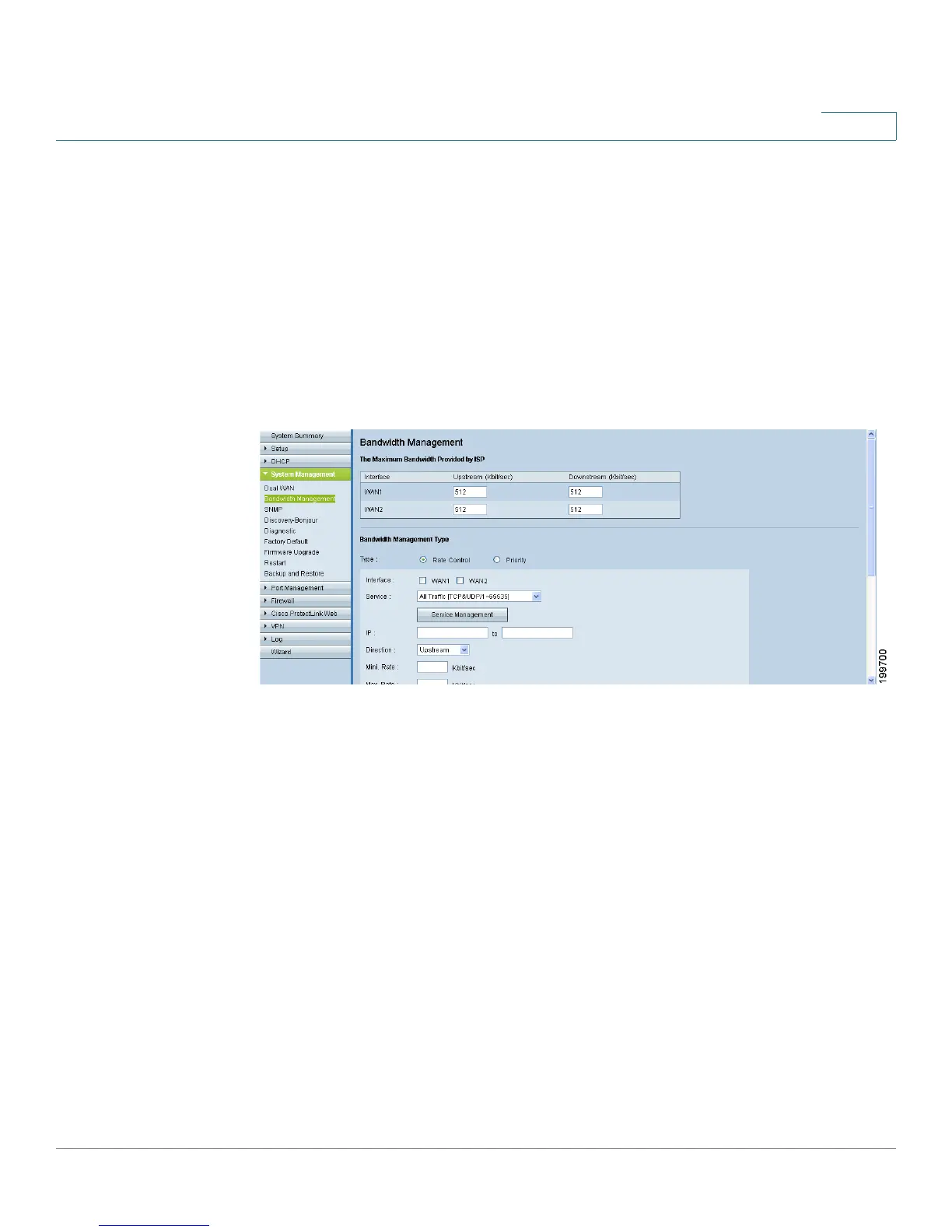

Use the System Management > Bandwidth Management page to adjust the
bandwidth settings for upstream and downstream traffic and to configure Quality
of Service (QoS) settings for various types of traffic. For example, you can enter
bandwidth rules to ensure quality for voice services. For a detailed example, see
Appendix F, “Bandwidth Management.”
To open this page: Click System Management > Bandwidth Management in the
navigation tree.
NOTE Before navigating away from this page, click Save to save your settings, or click
Cancel to undo them. Any unsaved changes are abandoned.
Max Bandwidth Provided by ISP
Enter the maximum bandwidth settings as specified by your Internet Service
Provider.
• Upstream: Enter the maximum upstream bandwidth provided by your ISP.
The default is 512 kbit/sec.
• Downstream: Enter the maximum downstream bandwidth provided by
your ISP. The default is 12 kbit/sec.
Bandwidth Management Type
Choose one of the following management options:
• Rate Control: Choose this option to specify minimum (guaranteed)
bandwidth and maximum (limited) bandwidth for each service or IP
address.

Cisco RV082 - Small Business VPN Router Specifications

General

VPN Tunnels	50
DHCP Server	Yes
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Humidity	10% to 85% non-condensing
LAN Ports	8 x 10/100 Mbps RJ-45
VPN Protocols	IPSec, PPTP, L2TP
Firewall	SPI
Encryption	DES, 3DES, AES
Memory	8 MB Flash, 32 MB DRAM
Operating Temperature	0 to 40°C
Storage Temperature	-4 to 158°F (-20 to 70°C)
Weight	0.69 kg
