Cisco RV082 - Small Business VPN Router User Manual

Viewing System Summary Information
Cisco Small Business RV0xx Series Routers Administration Guide 23
2

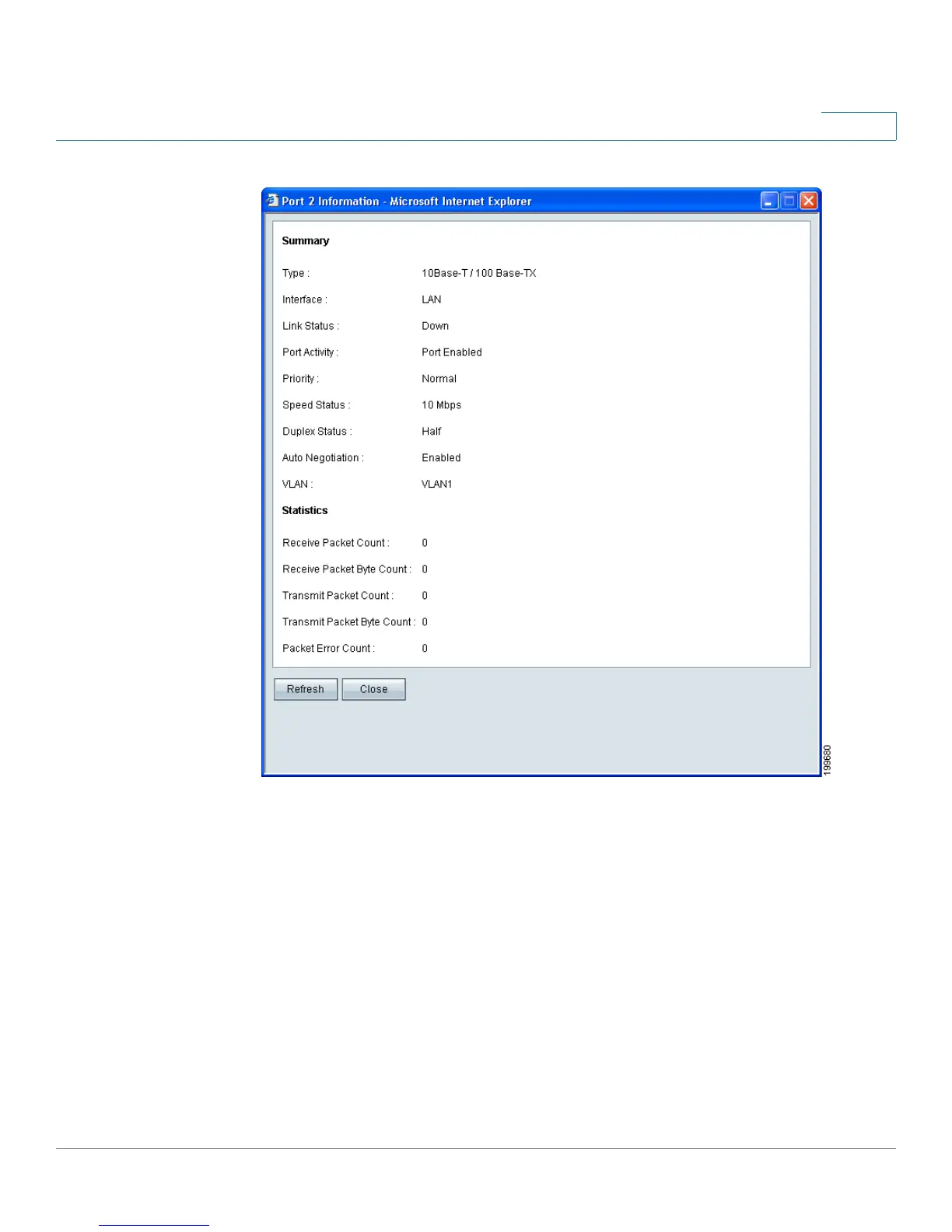

This window displays the following information:
- Type: The type of port, 10Base-T/100 Base-TX.
- Interface: The type of interface, such as LAN, DMZ, or WAN.
- Link Status: The current status of the link: Up or Down.
- Port Activity: The current activity on the port, either Port Enabled, Port
Disabled, or Port Connected.
- Priority: The priority setting, High or Normal.
- Speed Status: The speed, 10Mbps or 100Mbps.
- Duplex Status: The duplex mode, Half or Full.

Cisco RV082 - Small Business VPN Router Specifications

General

VPN Tunnels	50
DHCP Server	Yes
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Humidity	10% to 85% non-condensing
LAN Ports	8 x 10/100 Mbps RJ-45
VPN Protocols	IPSec, PPTP, L2TP
Firewall	SPI
Encryption	DES, 3DES, AES
Memory	8 MB Flash, 32 MB DRAM
Operating Temperature	0 to 40°C
Storage Temperature	-4 to 158°F (-20 to 70°C)
Weight	0.69 kg
