6. [ ] Next Track Button
7. ID3 Information
Touch the area of the ID3 Information to display the
current play list.
Touch the [
] icon can return to ID3 information
display.
8. Next Page [ ] / Previous Page [ ] Button
9. Category List
Select different category songs to play. The category
is same as the iPod/iPhone.
10. [
] System Time
11. Bluetooth Status
12. MUTE Status
13. Playback Status
14. Art Work
15. Progress bar

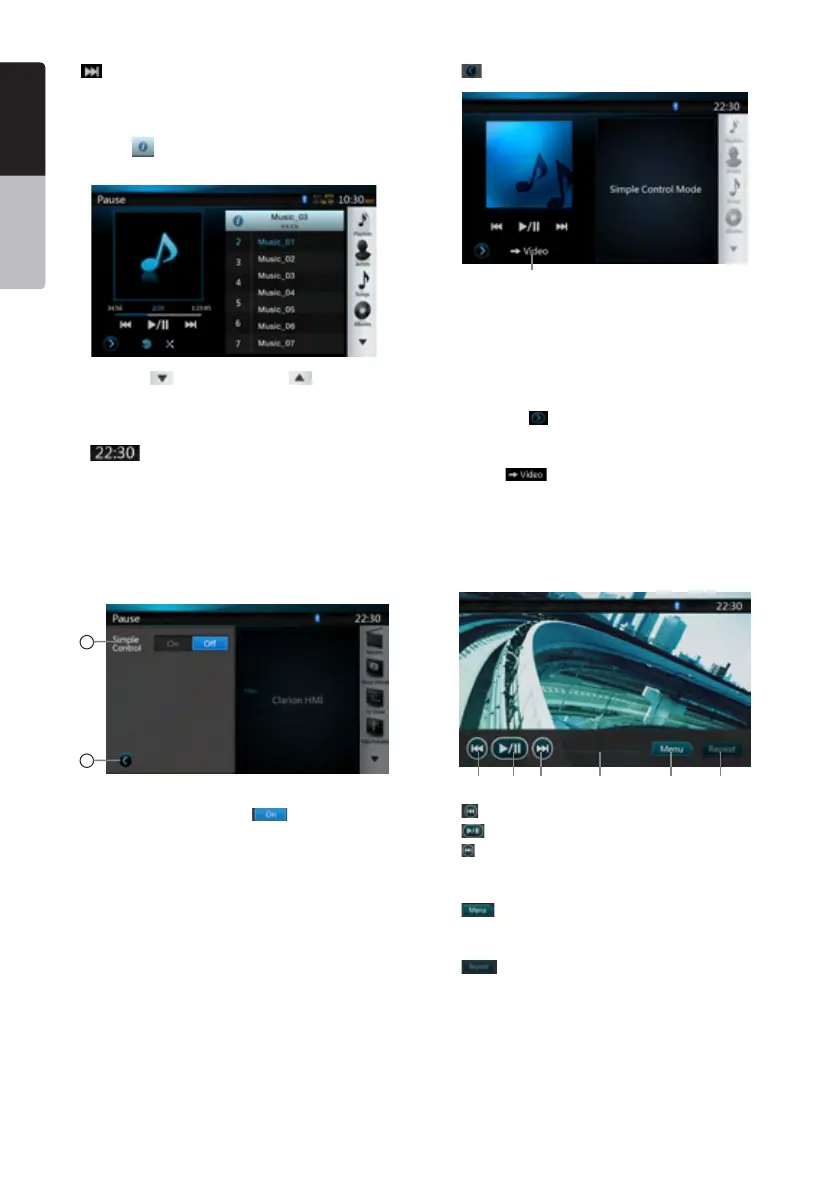

iPod audio settings mode screen
16
17
16. Simple Control:
If the Simple Control is set to [
]. The screen will
become to Simple Control Mode. It can also display
the video of iPod/iPhone regardless it is iPod Audio
or iPod Video mode. But only “Previous Track”, “Play/
Pause” and “Next Track” can be operated. (Refer
to17)
17. [
] Close the Settings Page
18
18. Display video of iPod/iPhone.
Follow operation steps to display video of iPod/iPhone
in Simple Control Mode.
• Connect the iPod to USB connector via CCA-748
cable.
• Select iPod Audio mode.
• Press the [
] button on iPod audio mode screen
to display Settings page.
• Set the Simple Control to “On”.
• Press [
] button.
• Set iPod Video settings TV Out to “ON” in iPod.
• Now play video from iPod
• Video of iPod will display on the screen.
• iPhone and iPod Touch are not supported with
video output in Simple Mode.
19 2120 22 23 24
19. [ ] Previous files
20. [
] Play or Pause video
21. [
] Next files
22. Progress bar
The “Progress bar” is not available on this screen.
23. [
] Menu:
Press the Menu button can display the Simple Control
Mode.
24. [
] Repeat
The “Repeat” Button can’t operate on this screen.
