62 NX501E/NZ501E
English
Owner’s Manual

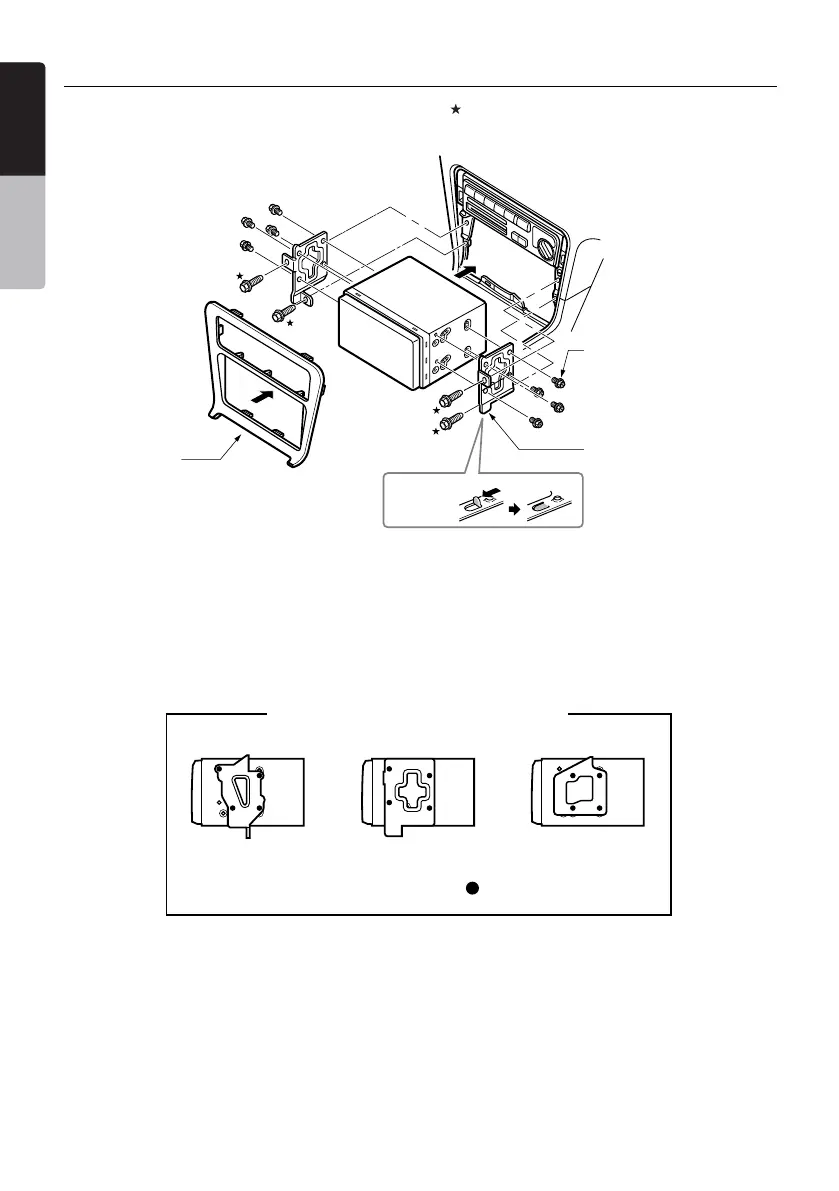

Installing the Main Unit in TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked are attached to the vehicle.)
*2. Some panel openings are too small for the unit
depending on the vehicle type and model. In such
a case, trim the upper and lower sides of the panel
frame by about 0.5 to 1.5 mm so the unit can be
inserted smoothly.
*3. If a hook on the installation bracket interferes with
the unit, bend and flatten it with a nipper or similar
tool.
Vehicles other than NISSAN and TOYOTA
In some cases the center panel may require modification. (Trimming, filing, etc.)
• Removing the Main Unit
When the main unit is to be removed, disassemble it in the reverse of the order in
“INSTALLING THE MAIN UNIT”.
Typical Mounting Brackets
Example 1 Example 2
Affix the screws to the
marks.
Example 3
* 3
8- Hexagonal screws
(M5x8)
Mounting bracket
(1 pair for the left
and right sides)
Center Panel
(*2)
Main Unit
Figure 7
To Next Page
