Service Manual-CA60 14 Wheel System 30
Wheels Disassembly/Assembly
Disassembly
1.
Drain the recovery tank.
2.
Drain the clean water tank.
3.
Remove the brush.
4.
Remove the squeegee.
5.
Remove the machine’s batteries.
6.
Position a flattened cardboard box the same size as the machine’s side. With the assistance of a
second person, turn the machine over sideways and rest its right-hand side on the box positioned on
the floor.
7.

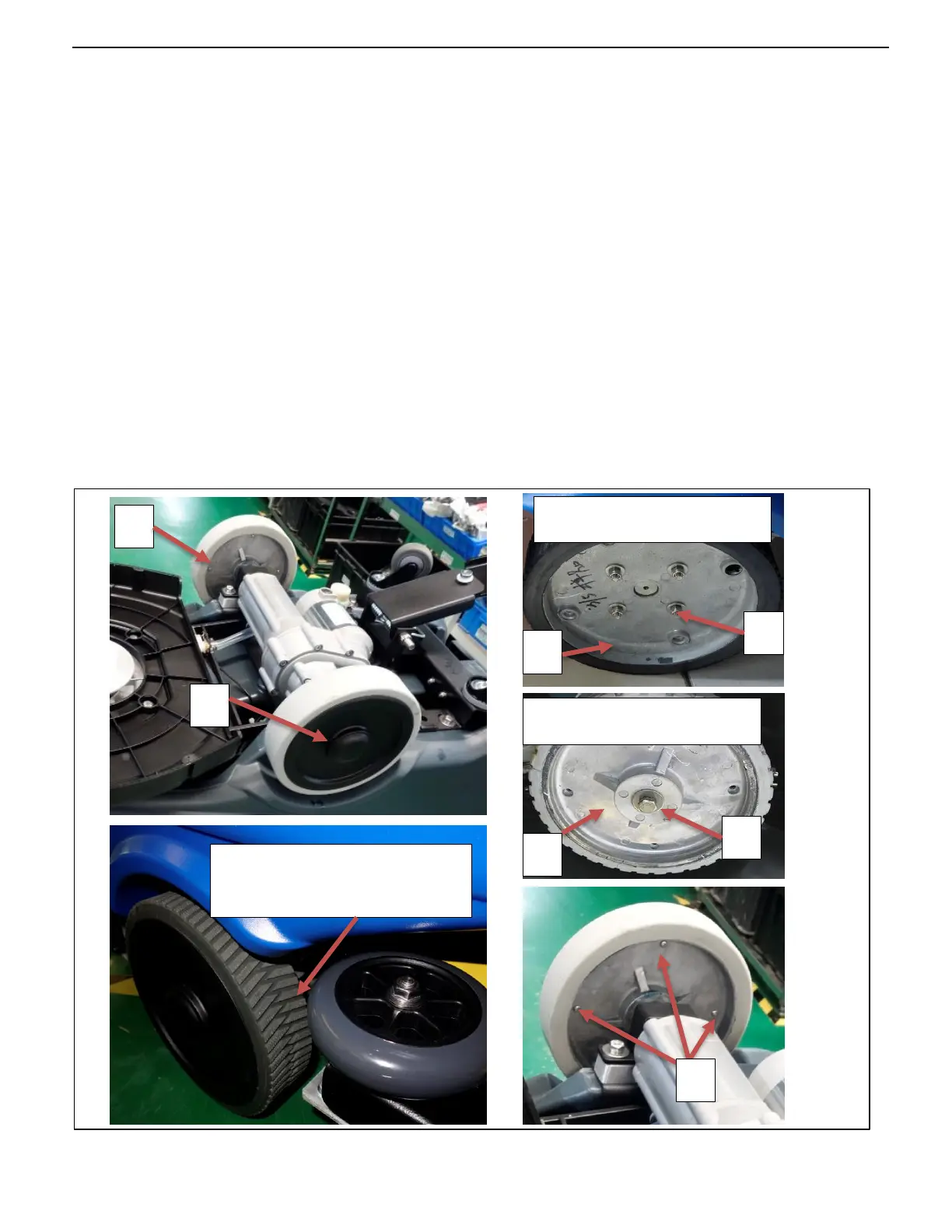

Unscrew the screws (A) inside the wheel.
8.
Remove the outer cover (B) of the wheel.
9.
Unscrew the screw (C) and remove the wheel (D).
Assembly
10.
Assemble the components in the reverse order of disassembly.
