Drive System Motor disassembly/assembly (M3)
Disassembly
1. Remove the wheels assembly with drive system motor (see the procedure in the relevant paragraph).
2. Unscrew the screws (A) inside the two wheels.
3. Remove the outer cover (B) of the wheels.
4. Unscrew the screws (C) and remove the wheels (D).
5. Remove the drive motor.
Assembly
6. Assemble the components in the reverse order of disassembly.

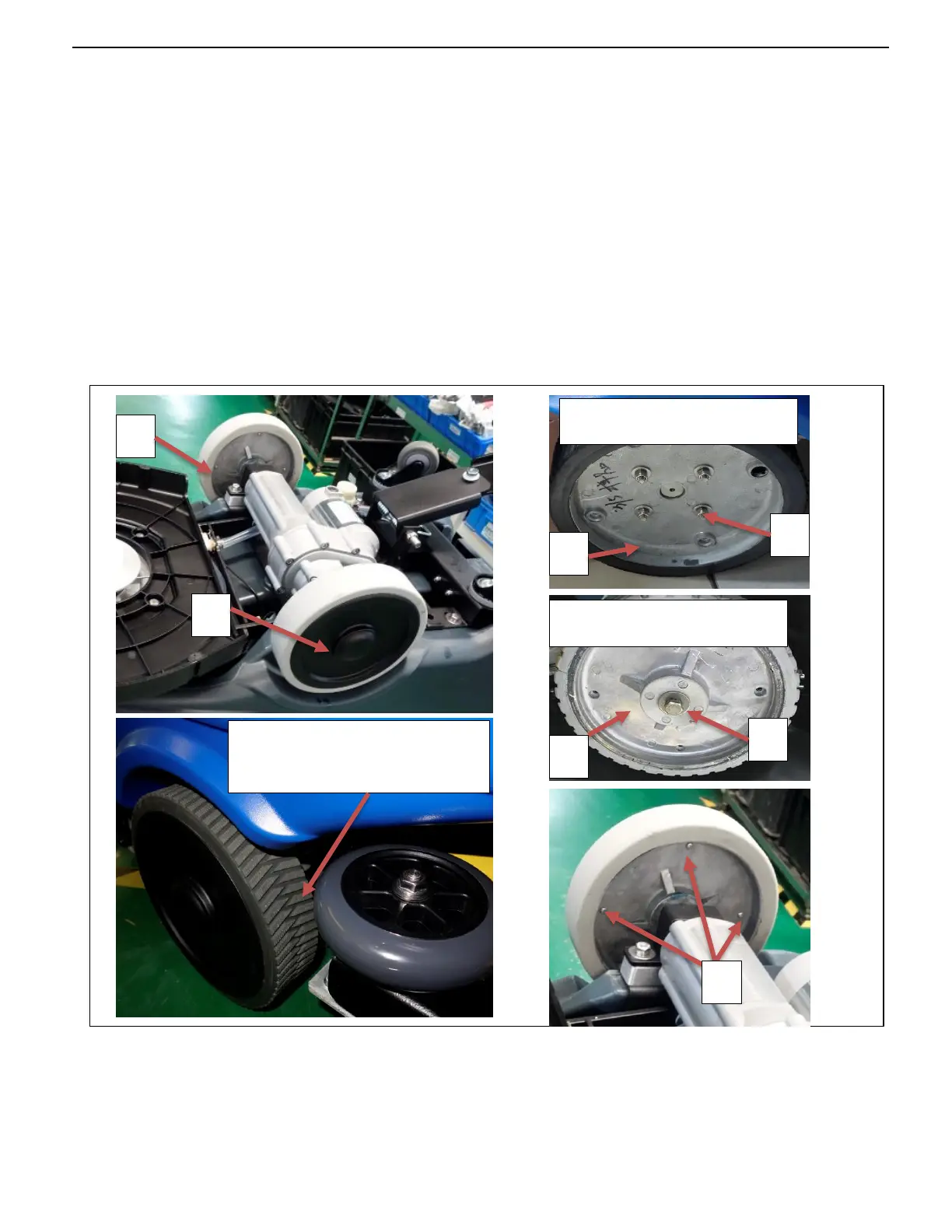

Figure 10
A
D
D
C
C
CA60 20B/24B
CA60 20D/20TD
B
D
Wheel for(CA60
20B/CA6024B)
