Service Manual-CA60 34 Scrub System REV (CA60 20B/24B) 70
Orbital deck Disassembly/Assembly
（
Continues
）
9.

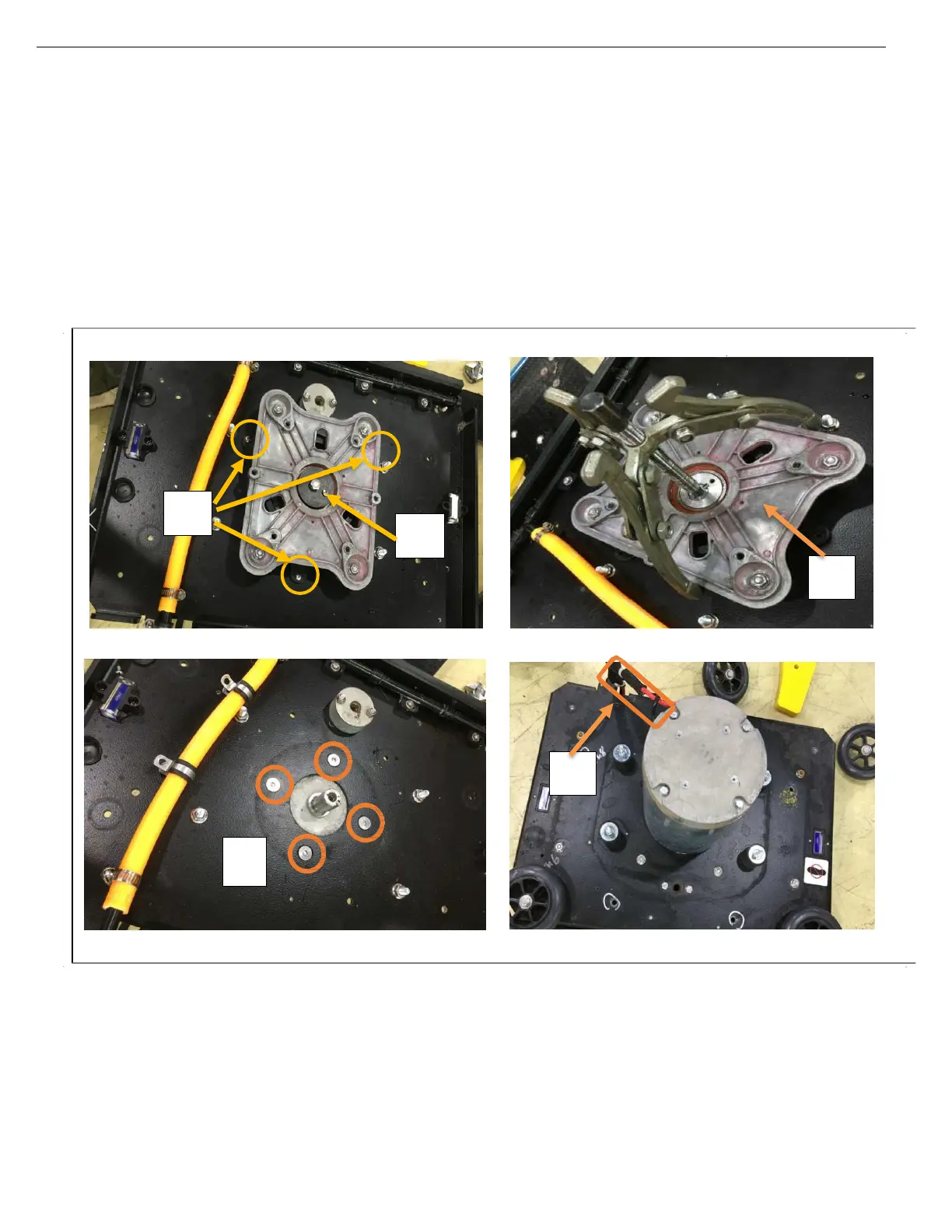

Unscrew the screws(M). Unscrew the screws(N).
10.
Use three-jaw catch the driver plate(O) and take out it.
11.
Remove the orbital motor fastening screws (P).
Assembly
12.Assemble the components in the reverse order of disassembly, and note the following. Position the orbital
motor in the position (X) shown in the figure.
To Next Page
