Service Manual-CA60 38 Squeegee System (CA60 20B/24B) 77
3.

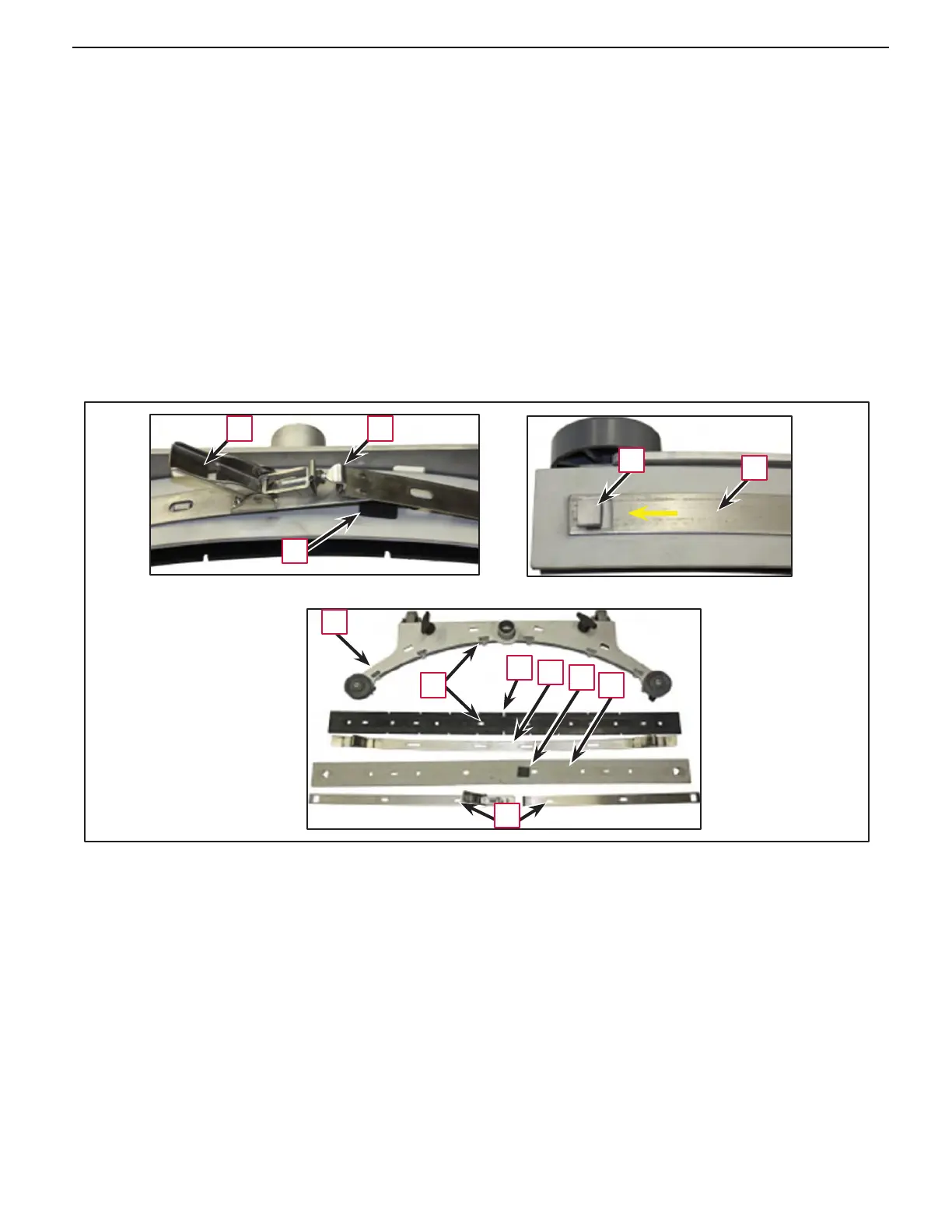

Pull out on the latch (D) to release the tension on the retaining strap.
4.
Separate the retaining hooks (E) from the two halves of the retaining strap.
5.
Slide each retaining strap (G) toward the outside, and lift them off the edge retaining hooks (H).
6.
Remove the backing pad (F), and retain it for placement after rotating or replacing the squeegee blade.
7.
Remove the squeegee blade from the squeegee frame.
•
The squeegee can be rotated and/or flipped 3 times to expose a new edge (4 edges total) to the lower
front. If all 4 edges are worn, replace the squeegee blade with a new one.
8.
Lay the squeegee blade (H) over the frame (K), and make sure the tabs and slots (J) are aligned.
9.
Replace the strap (G) and make sure the backing pad (F) is positioned at the seam between the straps.
10.
Before tightening the latch, make sure the blade is straight without waves.
D E
H
G
F
K
M
L
F
J H
G
