Service Manual-CA60 38 Squeegee System (CA60 20B/24B) 79
Squeegee Trim Adjustment
The squeegee trim adjustment ensures that the squeegee frame is level with the floor when the squeegee is in the
lowered, operating position. If the trim is out of adjustment, the squeegee can leave streaks of water at either the
center or the edges of the squeegee.
1.
If this procedure is not being performed as a follow-up to replacing the squeegee blade(s), then make the
blade examinations.
2.
With the machine parked on a level surface, lower the squeegee to the floor.
3.
Examine the contact area between the squeegee blades and the floor. The squeegee blades should be
in even contact with the floor.

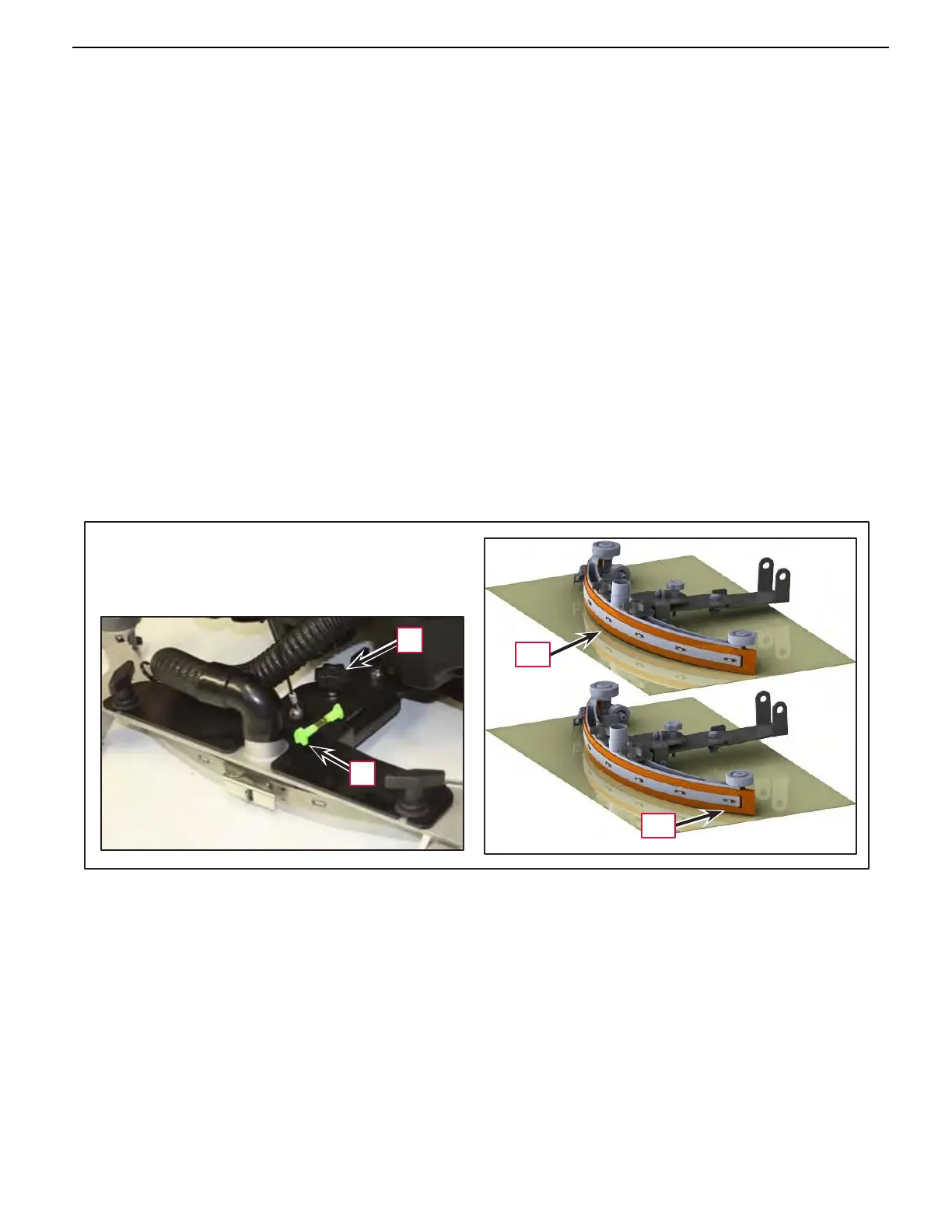

– A small bubble level (B) may be used to set the frame of the squeegee to be level with the floor.
4.
If the squeegee is tilted up, there will be a gap at the center, and the level’s bubble will be toward the
rear of the machine.
– Turn the adjustment knob (A) counterclockwise.
5.
If the squeegee is tilted down, there will be a gap at the outsides of the squeegee, and the level’s bubble
will be toward the front of the machine.
– Turn the adjustment knob (A) clockwise.
A
Gap
B
Gap
