20 Tempest®2400 2-Channel Wireless Intercom System

6- CALL Buon

The CALL Buon sends a 2-Wire compable call signal to any wireless BeltStaon and any hard wired intercom device on

the intercom channel. The Call signal will be routed to intercom channels indicated by the user’s acve Talk buon(s).

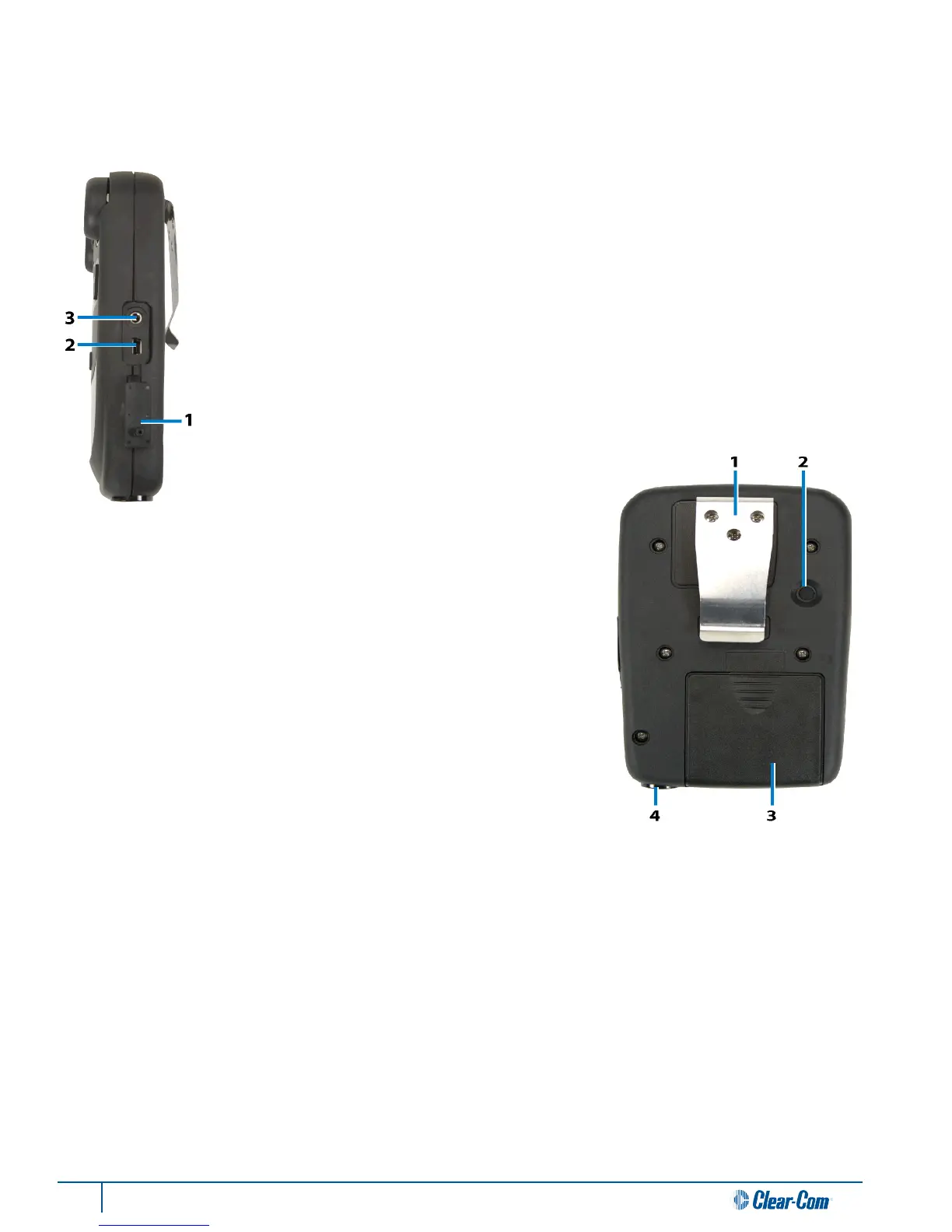

1- Rubberized Access Cover

The Rubberized Access Cover helps prevent dust, dirt and liquid from entering the BeltStaon

through the USB or the BeltStaon pairing connector. Keep this cover securely closed at all mes

to ensure the best possible seal.

2- USB Mini B Connector

The USB Connector is used to charge the BeltStaon with the supplied wall charger. In addion,

the USB connect is used to update the rmware of the BeltStaon.

3- BeltStaon Pairing Connector

The BeltStaon Pairing Connector is used to pair the BeltStaon with BaseStaons using the

supplied 1/8” stereo mini connector.

1- Belt Clip

The Belt Clip enables the BeltStaon to be worn on the user’s belt or other clothing

item.

2- Power ON/OFF Buon

The Power ON/OFF buon is used to turn the BeltStaon ON or OFF. Press and

hold the Power ON/OFF buon for two seconds to turn the BeltStaon ON. Press

for four seconds to turn the BeltStaon OFF.

3- Baery Compartment

The Baery Compartment holds either one Tempest Lithium-Polymer rechargeable baery or (3) standard alkaline AA

cells. To remove the baery door, press down on the thumb markings and pull the baery door toward the boom of the

BeltStaon. To remove baeries from the baery compartment turn the BeltStaon baery side down and tap the boom

of the BeltStaon on the palm of your other hand. Please be careful to insert alkaline AA baeries according to the marked

polarity. All of the alkaline AA cells face the same direcon. If the baery cover does not t or close properly, the baery

may not be inserted correctly.

4- Headset Connector

The 4-pin XLR male headset connector mates with most Dynamic or Electret headsets that have 4-pin XLR female connectors.

This Headset connector allows a user to communicate in “Dual Listen” or “Single Listen” mode on either intercom channel.

The mic detect circuit (dynamic/electret) will indicate dynamic when it sees a load of 600Ω or less. It will indicate an

electret when it sees 1kΩ or greater. Between 600Ω and 1kΩ is not recommended as it may not accurately detect mic type.

If you are using dynamic mics, you should short the input to ground. If you are using electret mics you should open the

circuit. This will keep the belt from switching back and forth between modes.
