4.1.5 — CB Falcon setup
The Model CBT boiler uses the CB Falcon boiler control system. Primary controller functions include:
• Flame supervision
• Burner sequencing
• PID Modulation control
• Operating Limit Control
Additional features include:
• User-friendly touchscreen interface
• Modbus communication capability
• Alarm/lockout messaging with history (last 15 messages)
• Annunciation
• Password protection of configurable parameters
• Time of Day (dual setpoint) control
• Remote reset
• (3) configurable pump relays
• Remote modulation/remote setpoint

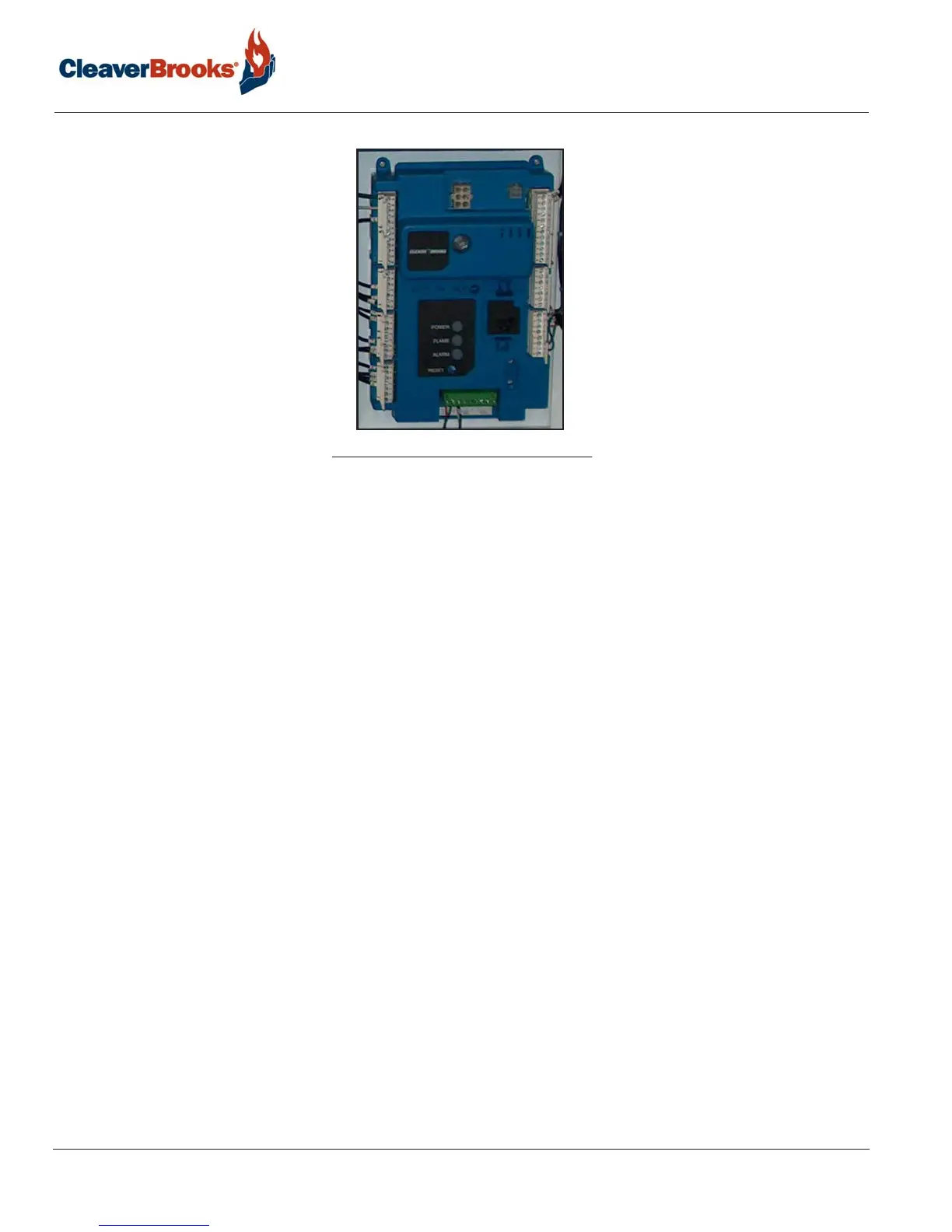

FIGURE 4-2. CB Falcon controller
