Full modulation boilers
Operation page
From the Operation Page page the user can change setpoints, manually control the boiler’s firing rate, manually
turn pumps on, and view annunciation information. If a password is required to change any of the settings on
this page, the user can press the Login button to enter the password.
The burner is enabled from this page by turning the <Burner enable> screen button ON.
4.1.7 — Lockouts, Holds, and Alerts
The CB Falcon implements two kinds of faults: lockouts and alerts. The Falcon will also annunciate hold condi-
tions which automatically clear when the condition is removed or satisfied.
Lists of fault codes and alerts can be found in Appendix A, CB Falcon Control.
LOCKOUT
• A lockout causes the boiler control to shutdown and requires manual or remote reset to clear the lockout.
• Always causes alarm contacts to close.
• Logged in lockout history in controller non-volatile memory.
ALERT
• Any fault condition that is not a lockout is an alert. Examples include boiler control abnormal conditions, faults
from non-safety functions, etc.
• Alerts never require manual intervention to reset them; they are for informational use only. Normal operation
continues.
• Alerts are logged in a 15-item volatile alert history sorted in chronological order. Only one instance of each alert
code occurs in the history, corresponding to the most recent occurrence of that alert.
HOLD
• A hold prevents the boiler from continuing until the hold condition is satisfied.
• Holds are not alarm conditions and are not logged in memory.

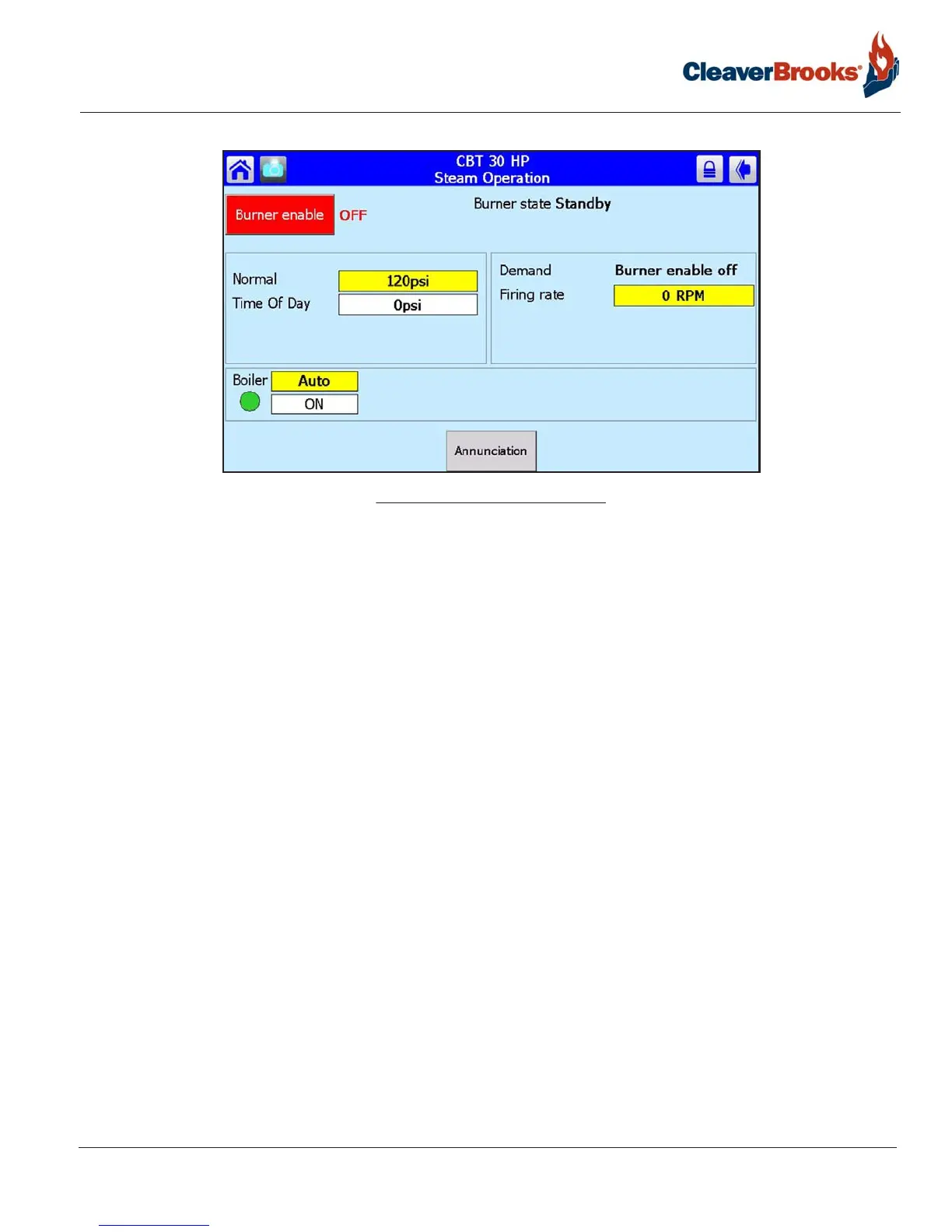

FIGURE 4-9. Operation page
