Full modulation boilers
Please review the tables within this Commissioning section to familiarize yourself with the functions and
parameters of the Controller. Also see Appendices A and B for details on control configuration and operation.
4.1.6 — CB Falcon display/operator interface
The CB Falcon display/operator interface is mounted in the boiler control panel for convenient access to all
operating controls.
Note: CBT boilers will be equipped with the 833-05105 System Display. For more information see Appendix B.
The Model CBT is factory tested. Nevertheless, all burner safety controls should be checked upon installation,
prior to initial firing. Failure to verify burner control functioning could result in severe bodily injury or death.

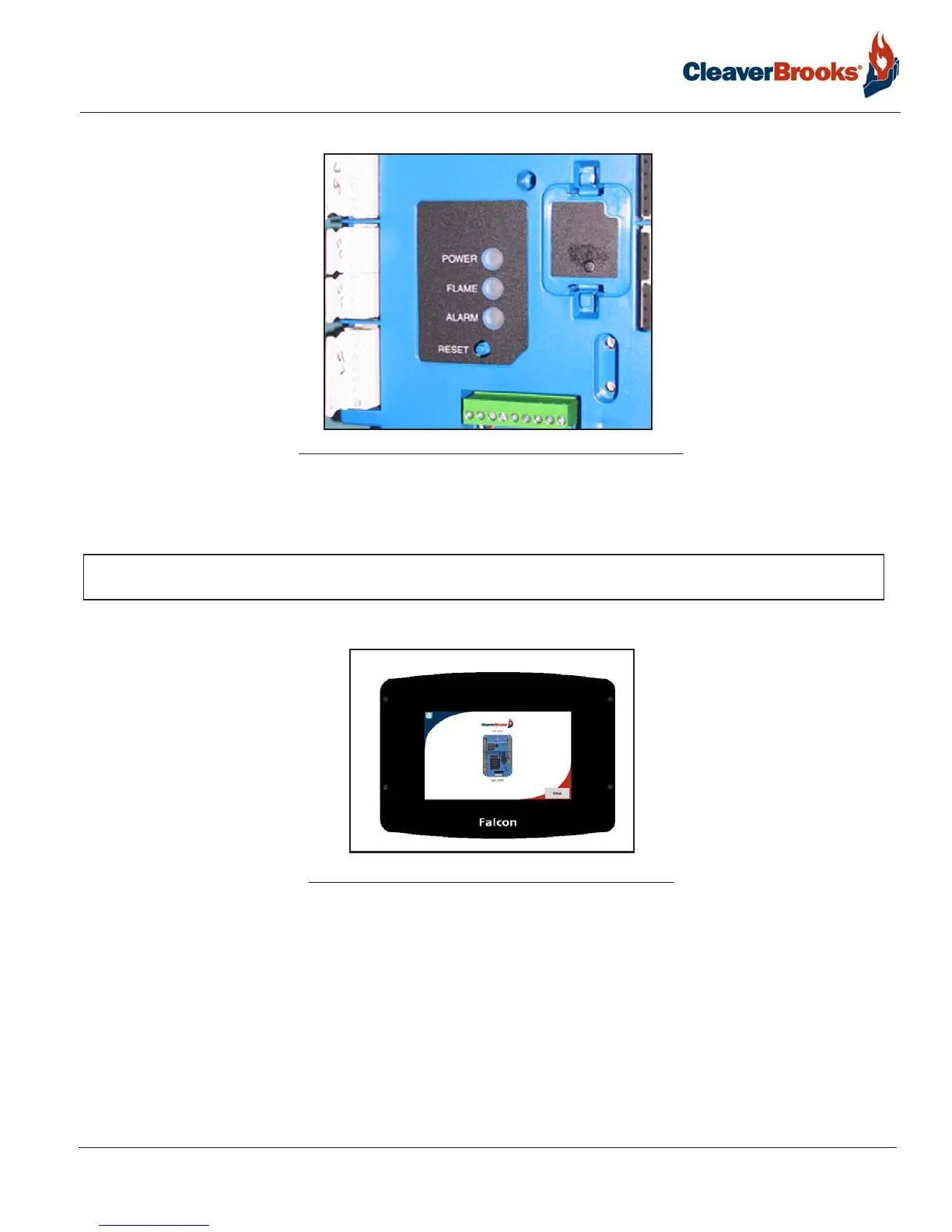

FIGURE 4-3. Controller status LEDs and reset button
FIGURE 4-4. CB Falcon display/operator interface
