Pressure vessel
The pressure vessel is fully insulated with minimal use of refractory to significantly reduce radiation and convec-
tion losses. Refractory is limited to the burner dry oven and a bottom furnace target plate.

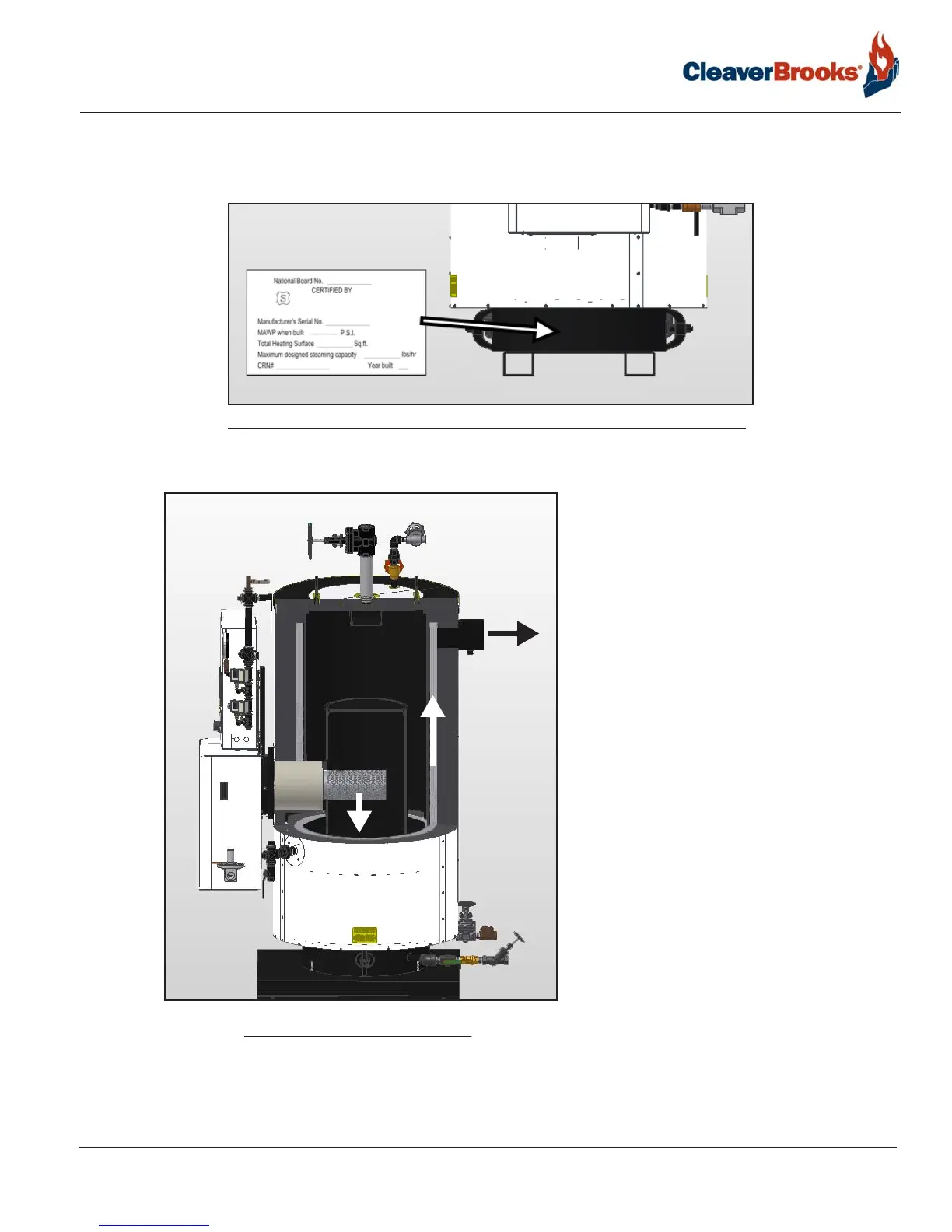

FIGURE 1-2. ASME data
FIGURE 1-2. CBT heat flow
Gases of combustion flow downward
through the furnace (1), then upward
through the 2nd pass (2) before exiting
the flue (3).
(1)
(2)
(3)
