Multi-Appliance Touch Pad
PNE2004 Series Control
Page 44
Controls – Installation / Setu
/ Commissionin
Setting the Water Management Systems Parameter Table – Continued…………..

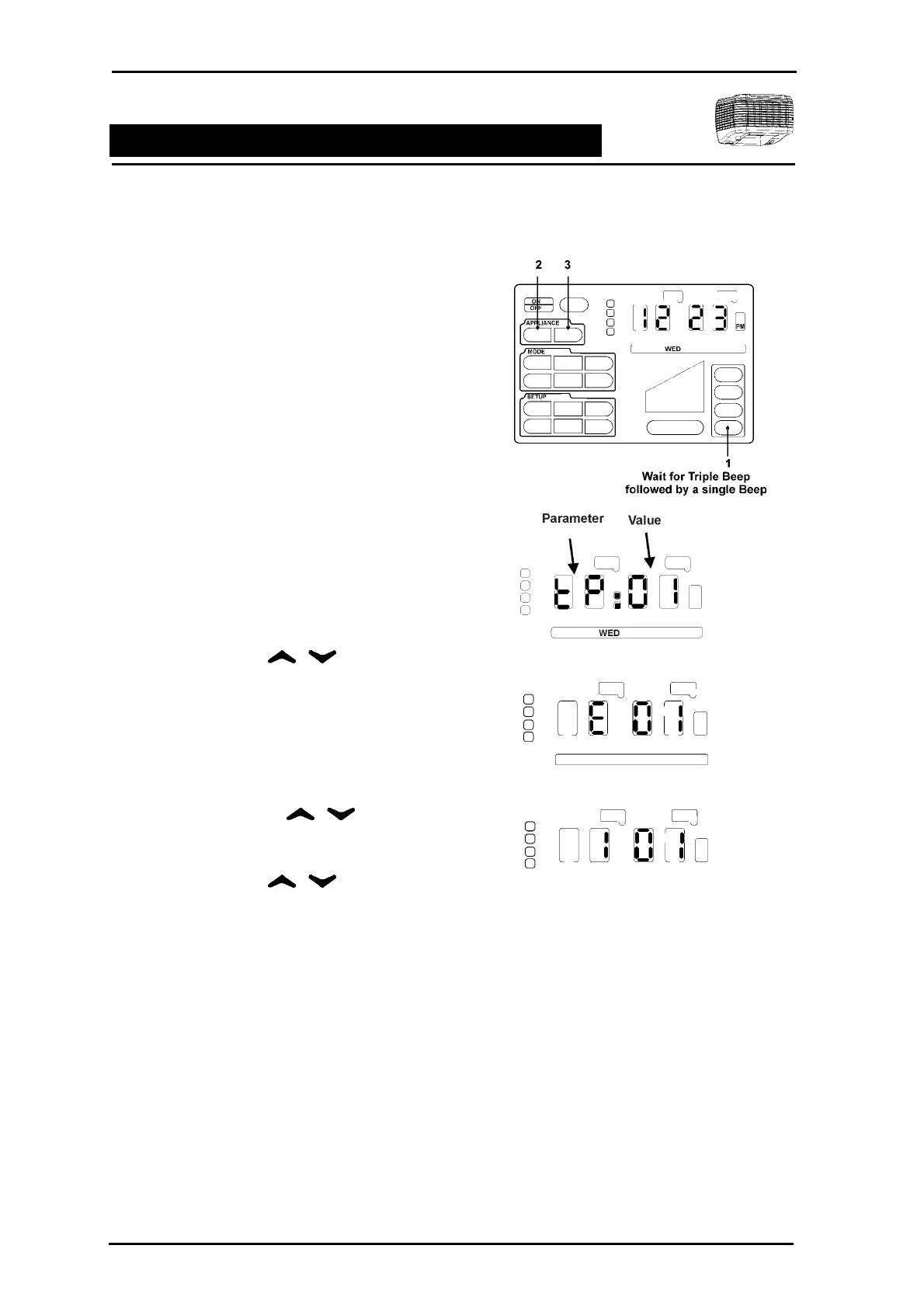

To enter into the installer setup mode for the water management options use the following steps.
Step 1 Ensure the control is in the OFF
mode.
Step 2 A series of unseen icons must be
pressed
1. Press and hold the ZONE 4 icon allowing
for a Triple BEEP followed by a Single
BEEP.
2. In quick succession press the unseen
APPLIANCE COOL icon followed by the
HEAT icon.
3. If successfully executed the clock LEDs
will display tP:01.
4. If unsuccessful repeat 1 and 2 of STEP 2.
Step 3 Using the select E:01 from
the LED display.
Step 4 Press ENTER. The display will now change to
1:01.
Step 5 Using the arrows select the
parameter to be changed as per the Water
Management Table. Press ENTER.
Step 6 Using the change the value
as per the ‘Water Management Table”. Press
ENTER.
Step 7 To change more water management
parameters repeat Step 4 – 7.
Step 8 Press FINISH to exit.
