3. Place the brackets against the wall and mark the
four
holes to be drilled.

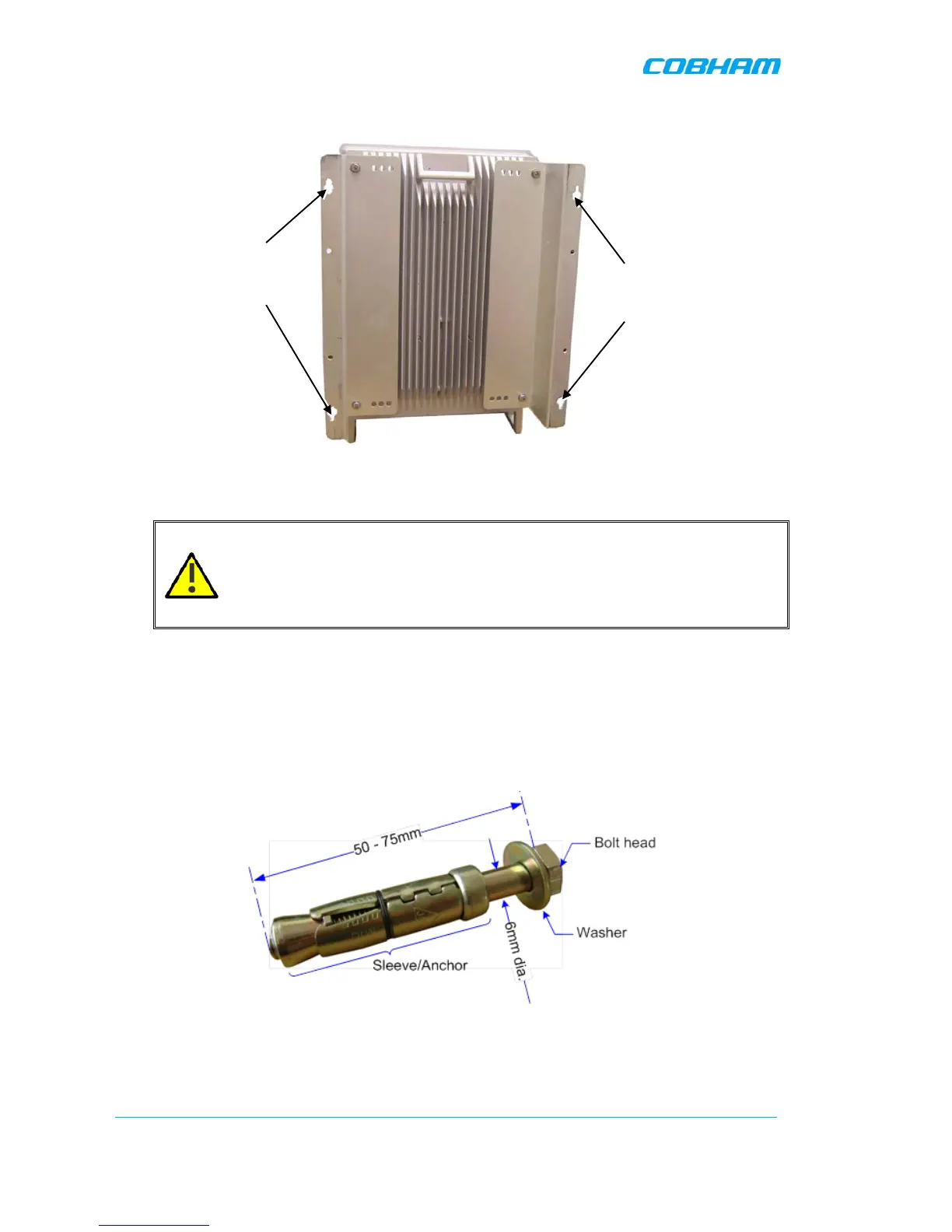

Figure 3-6. Mounting on wall
3.3.3.2 Wall Marking and Drilling
• Due to the weight of the unit, it is NOT recommended to fix to a hollow wall).
• Always check that there are no pipes or cables hidden in the wall beneath the
area to be drilled. Various pipe and cable detectors are available for this type of
inspection.
• The Repeater wall mount brackets assembly should be fixed to a solid wall (these include
brickwork, block work, and concrete).
• To provide secure fixing to a solid wall, the most common method is drilling and plugging. The
size of fixing is dependent on the item to be fixed and the nature of the wall, The Repeater
should be fixed with mild steel, M6 (50mm to 75mm) rawlbolts or similar.
• Care must be taken to ensure the alignment of the four fixings. A spirit level or plumb line should
be used to ensure horizontal/vertical alignment.
Figure 3-7: M6 Rawlbolt – recommended for wallmount.
Bracket-to-wall
mounting holes x 2
