D-MBR 3707-3708 PS NFPA CLASS A SIGNAL BOOSTER
PRODUCT DESCRIPTION AND USER’S MANUAL
Cobham Wireless – Coverage
Date: 17-Jan-16
www.cobham.com/wireless
Doc. No.00060CDUM Rev. 1.1 Page | 17
3.3.3 Wallmount Installation
IMPORTANT!!
• The unit mounting procedure is for concrete or brick walls only.
Verify the
suitability of the wall on which the unit is to be to be fitted.
• The weight of the unit requires that two people mount the unit on the wall.
• The signal booster must always be installed vertically with the connectors on
the underside for protection.
Horizontal installation on a bench for long time
may cause damage to the signal booster due to over-heating.
3.3.3.1 Wallmount Bracket Assembly
NOTE: In addition to the mounting brackets, it is recommended to use additional fixings as described
in section 3.3.3.4. Washers are not supplied with the repeater.
To mount the unit on the wall
1. Determine the location of the unit on the wall according section 3.3.1.
2. Assemble the brackets to the Repeater using the supplied 4 x M4 bolts as shown in the following
figure.

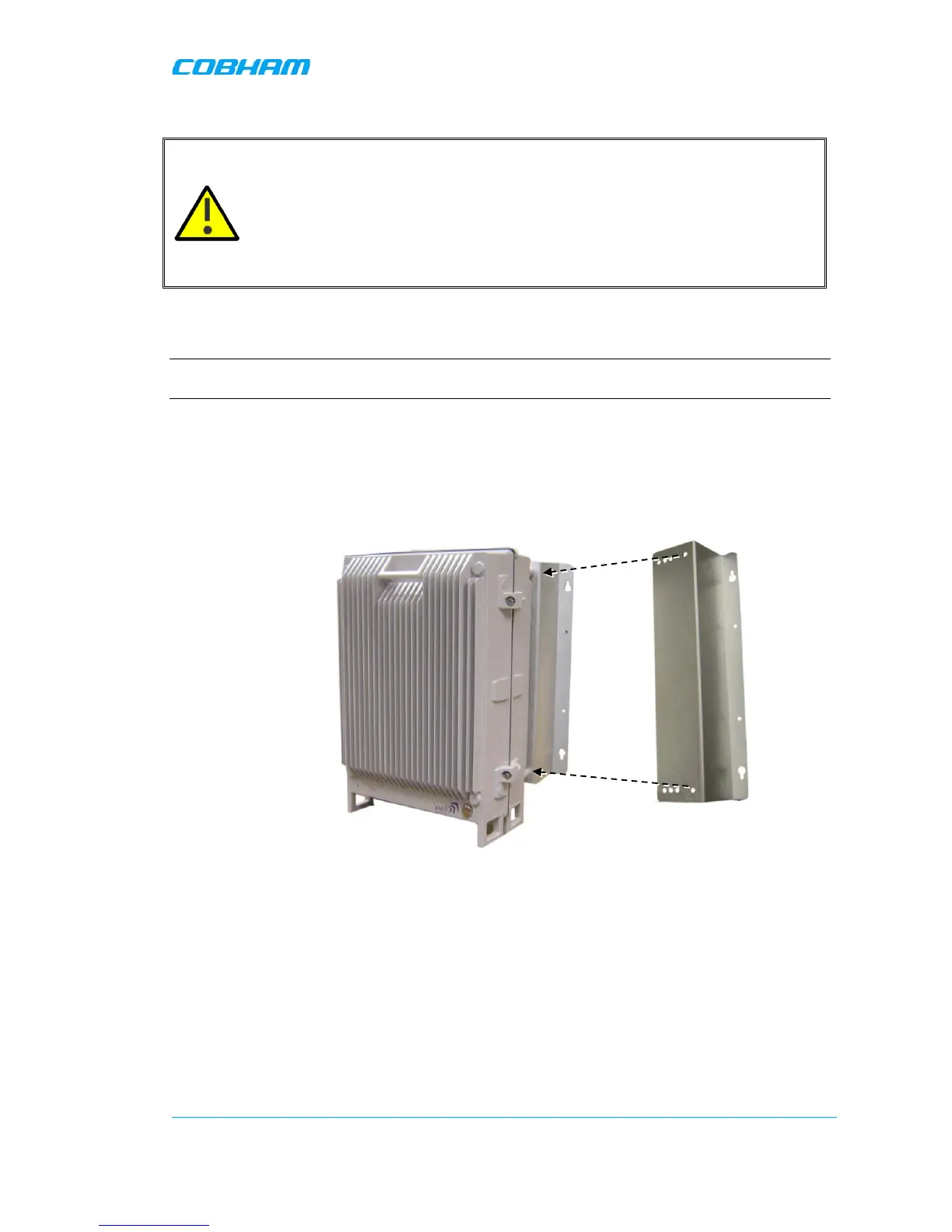

Figure 3-5. Bracket Assembly
