D-MBR 3707-3708 PS NFPA CLASS A SIGNAL BOOSTER
PRODUCT DESCRIPTION AND USER’S MANUAL
Cobham Wireless – Coverage
Date: 17-Jan-16
www.cobham.com/wireless
Doc. No.00060CDUM Rev. 1.1 Page | 43
5.3 RF Parameters and Channel Configuration
Define up to 12 sub-bands with dedicated parameters for the 700 MHz and 800 MHz band according
to the instructions in this section. The defined filters are
graphically
displayed in the lower part of the
screen.
To configure the signal level and channels
1. In the left pane, click the 700-800 item.
2. View the valid filter definition options by clicking the Band Info tab.

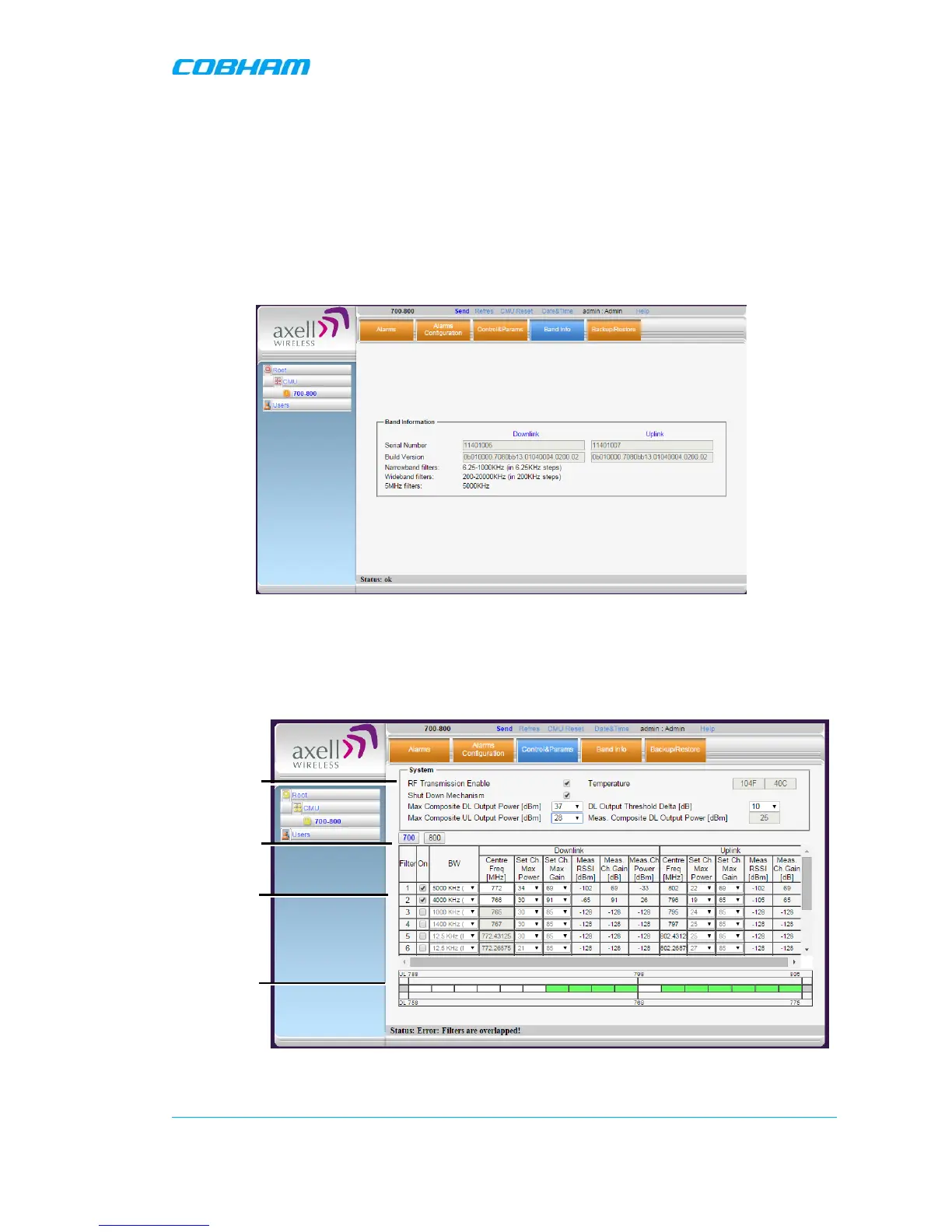

Figure 5-8. Available Filters Options
3. To define the filters:
• Click the Control&Params tab.
• Click the button corresponding to the required band: 700 or 800.
Figure 5-9. Sub-band Allocation Configuration
Global RF
