COBHAM D-MBR 3707 User Manual

D-MBR 3707-3708 PS NFPA CLASS A SIGNAL BOOSTER
PRODUCT DESCRIPTION AND USER’S MANUAL
www.cobham.com/wireless
Date: 17-Jan-16
Cobham Wireless – Coverage
Page | 16 Rev. 1.1 Doc. No.00060CDUM

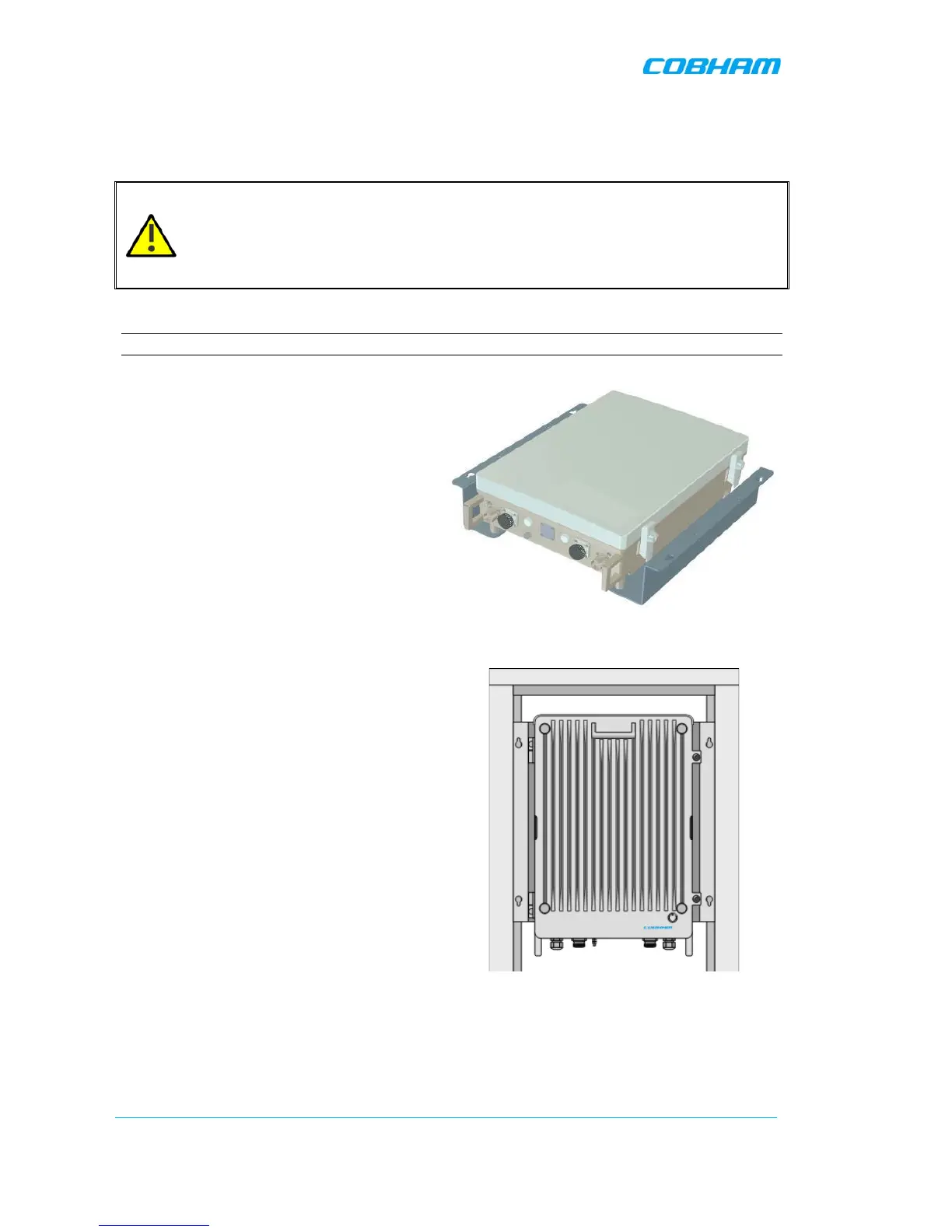

3.3.2 Rack Mount Installation
The supplied brackets are used to mount the repeater either on a wall or in a 19” rack. The same
brackets are used for both medium and high-power repeaters.
IMPORTANT!!
• The weight of the unit requires that two people mount the unit.
• The signal booster must always be installed vertically with the connectors on the
underside for protection.
Horizontal installation on a bench for long time may cause
damage to the signal booster due to over-heating.
To mount the unit in a rack
NOTE: The required Spring Washers are not supplied.
1. Use the x4 (provided) M8 Fixing Bolts
and X4 Spring Washers (not provided)
to assemble the brackets as illustrated in
the adjacent figure.
Figure
3-3: Rack-mount bracket position
2. Mount the unit vertically in the rack, while
adhering to standard rack mounting
procedures, and secure.
Figure
3-4: Rack-mount unit position
