1.4.5 External Alarm and Battery Module
The external alarm and battery module performs
the following functions:
• Contains the rechargeable battery pack – allows the
modem to transmit an alarm in case input power loss
is detected. Switch for ON/OFF.
• Supports connections for four external alarms and one
alarm relay
• The relay can be configured to trigger on any number
of internal and external alarms. The maximum current
through the relay is 100mA.

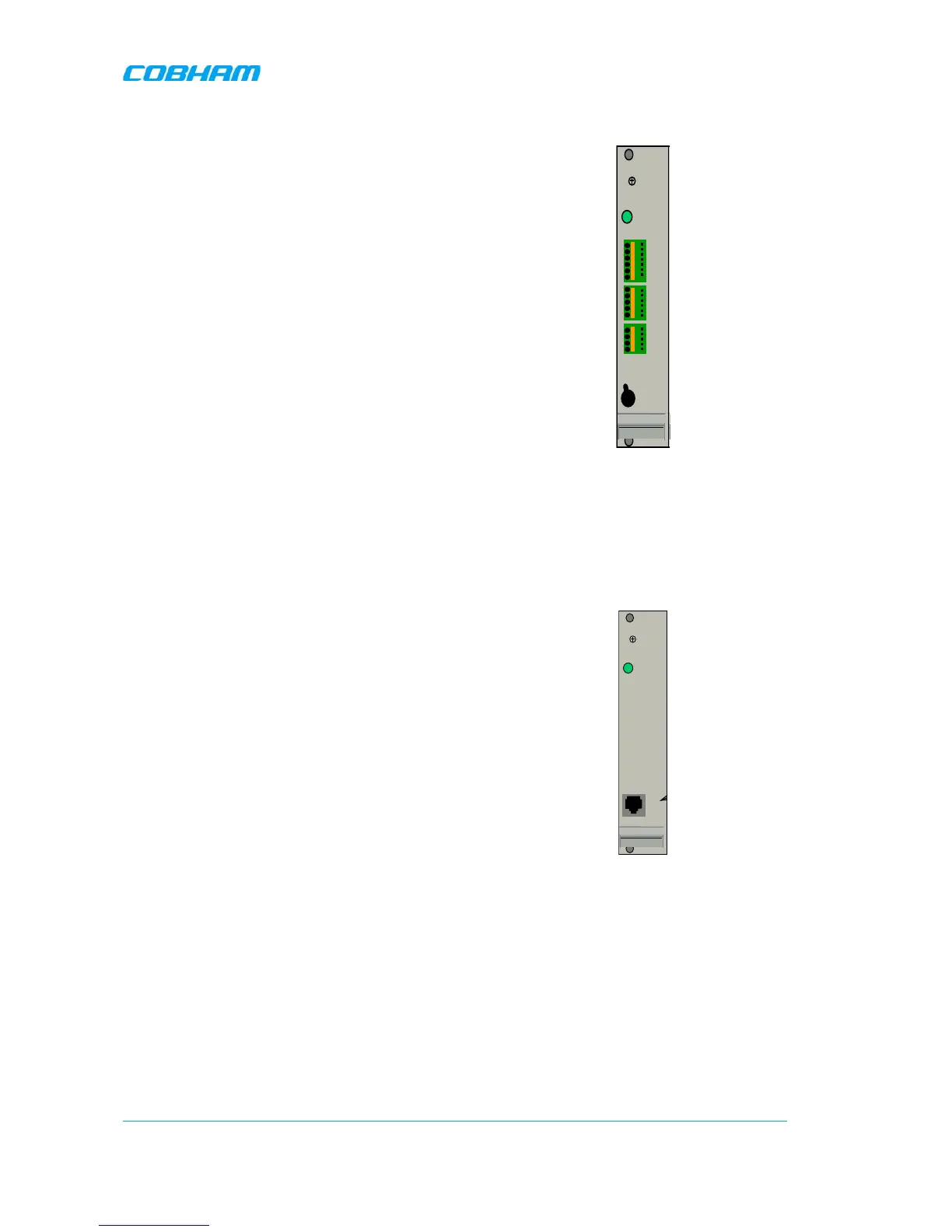

Figure
1-10. External Alarm and
Battery Module
1.4.6 Modem Unit
Optional – if a modem is not available on the Control unit. For example, PSTN modems or wireless
modems with a form factor that prevents it from being integrated with the Control Module.
This module performs the following functions:
• Provides modem functionality if the required modem
is not available on the Control Module.
• The access to a PSTN modem is via an RJ11
connector on the font of the module.
Figure
1-11. Modem Unit
PWR
Battery
Power
On
Off
PWR
