NETWORK

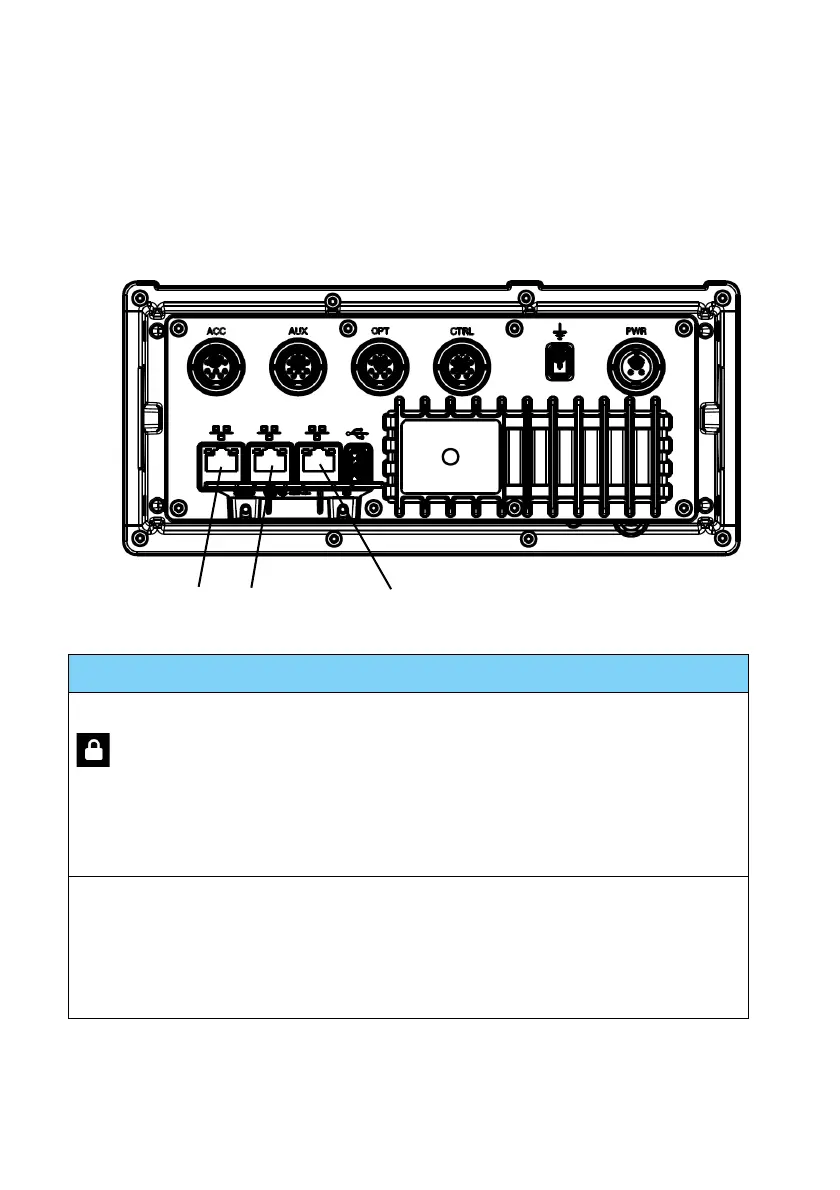

There are 3 LAN connectors on the Control Unit. The LAN connector closest to
the USB connector is the Service port, e.g. used for accessing the settings of the
Control Unit and for connection to an external network, the two leftmost LAN
connectors are for connecting other units in a local network.
Service portInterconnection ports
Parameter Description
SERVICE PORT Configuration of the Service port (LAN connector
•IP Mode:
DHCP Client (default) or Static
• IP address (only editable if Static is selected)
• Netmask (only editable if Static is selected)
• Gateway (only editable if Static is selected)
INTER-
CONNECTION
PORTS
• IP address (Read only)
• Netmask (Read only)
• Gateway (Read only)
If a DHCP server is not available, the interconnection ports
automatically use zeroconf to obtain an IP address.
