VHF radio with DSC Class A
98-171832-A Chapter 1: Introduction 3

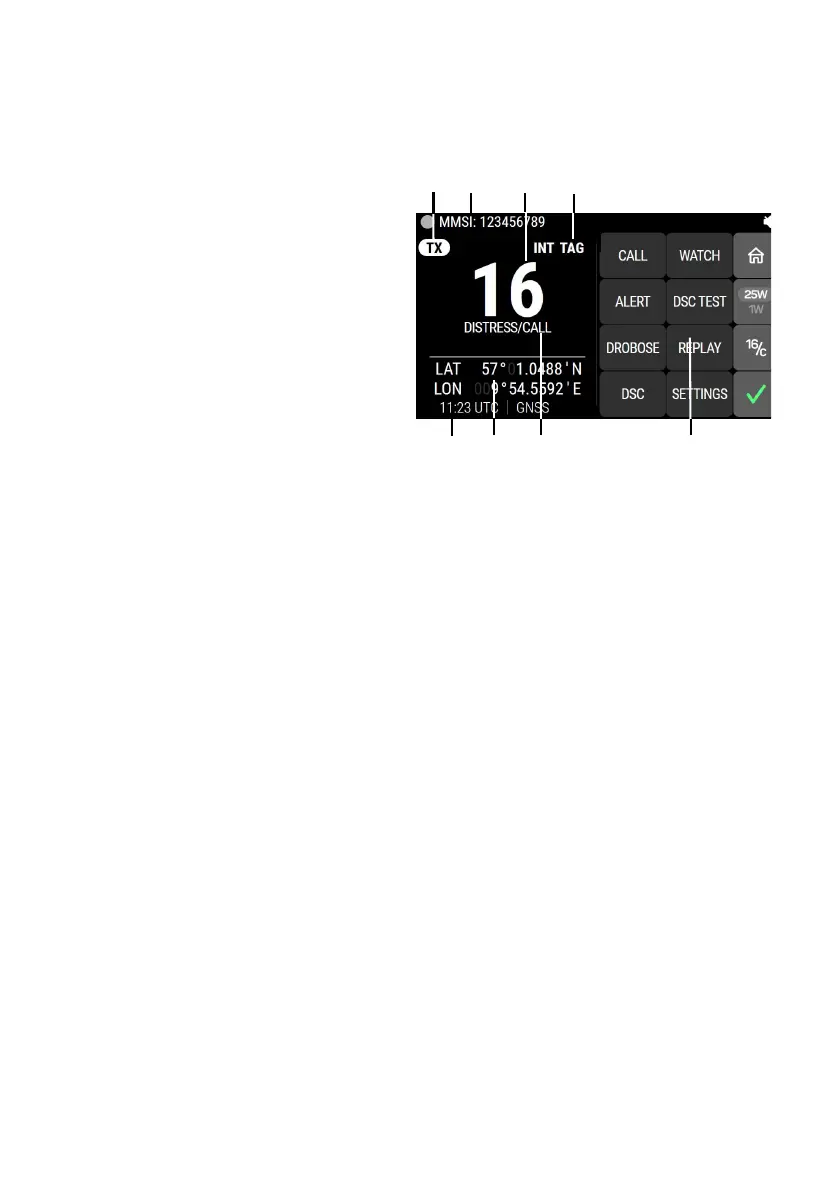

SAILOR 7222 VHF DSC display
The picture shows the display
after start-up. The display holds
various fields of information,
depending on the currently
selected function.
1. UTC time.
2. MMSI number.
3. Position information (latitude
and longitude).
4. Current working channel.
Tap to get an on-screen
keyboard for changing the
working channel.
5. Current communication direction: Rx (receive) or Tx (transmit).
6. Service line containing current temporary information relevant for the
current channel or function.
7. On-screen key functions.
8. Channel properties of the currently selected VHF channel (if any).
For a detailed description of the information shown for each of the functions
available see the chapter Operation on page 9.
