Cocoon Cooltech - Lined Screen; Spacer Washers

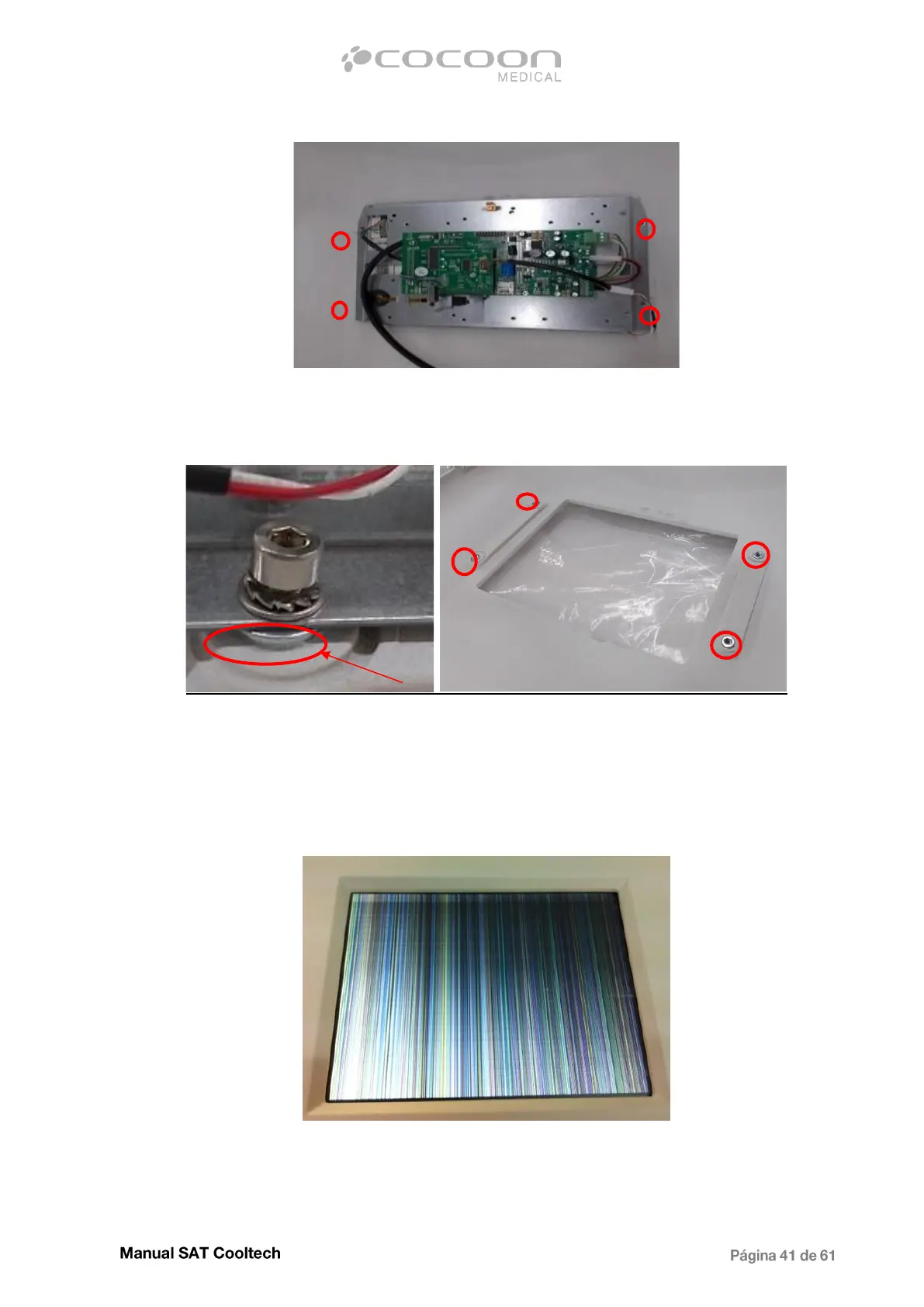

Remove the 4 screws fastening the display chassis to the front cover
Note: Be careful when removing the screws as there are 4 spacer washers between display
chassis and front cover.
Spacer washers
3.2.4 -Lined screen
Lined screen
When this problem appears, check the LVDS cable that between the CPU and the TFT for damage
and if is well connected. If can not solve it, replace the TFT block.
