Cooltech equipment consists of 3 large blocks: an electronic block - for control of all inputs and
outputs of the equipment, a refrigeration block – for cooling the hot part of the peltiers and a
vacuum block - for stopping blood circulation in the treated area, avoiding heating the area for
better results. Each of these blocks is described in more details below.
Electronics:
The electronic block consists of 2 CPUs: the Main and TFT control board.

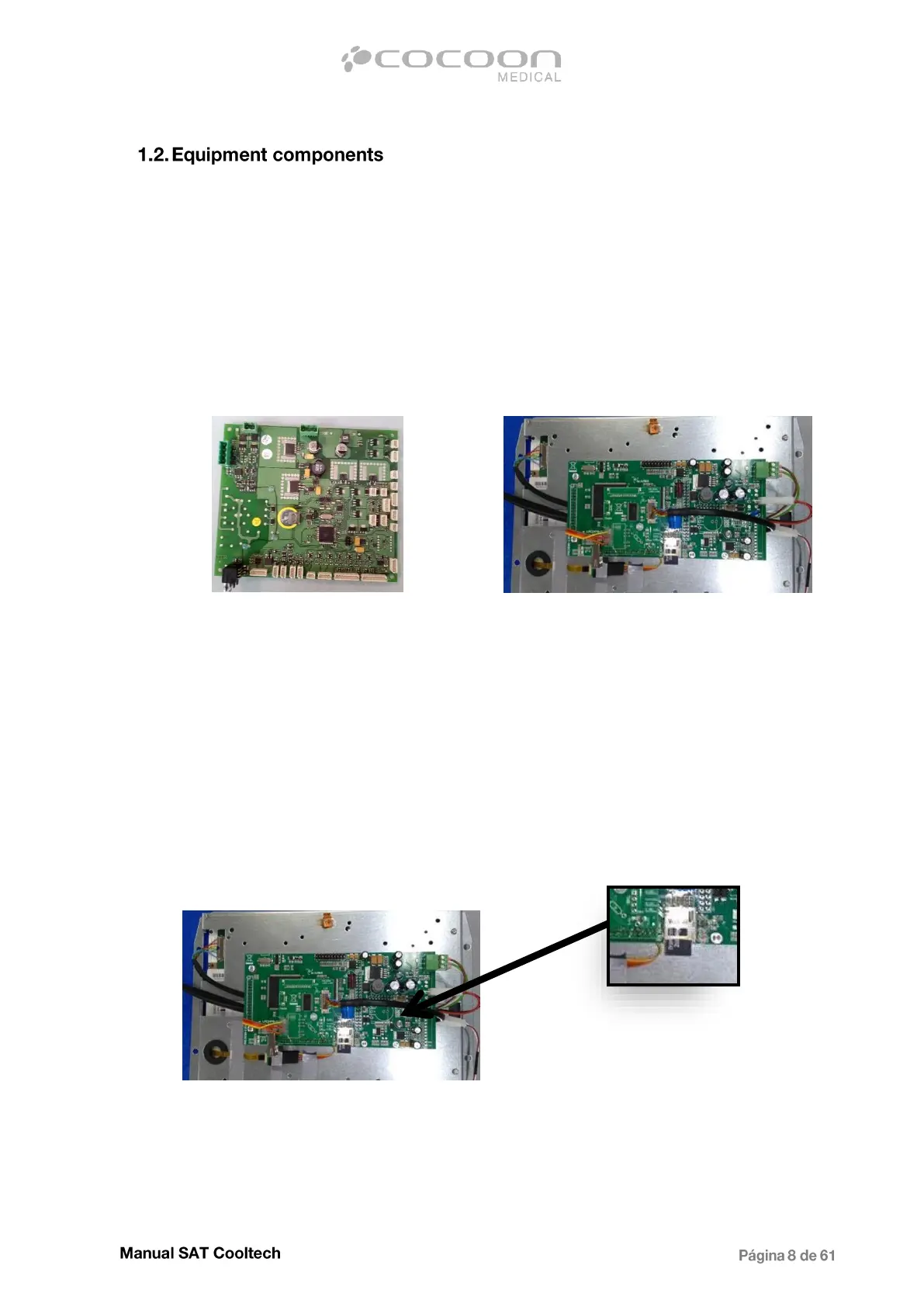

Main CPU TFT control board
Main CPU is located inside the electic cabinet of the equipment (on the left side, viewed from the
front), while TFT control board is mounted underneath the display.
TFT control board is responsible for displaying the necessary images on the screen, analyzing
and informing the Main CPU, when the user enters any data and commands on TFT.
All images, graphics and active zones for the screen are stored on a microSD inserted in TFT
control board.
