Technical Manual Page 20 CODEL
OPS.080 Issue : C Rev. : Date : 16/7/08 Doc. i/d : 0080/6 Ref. : 080040

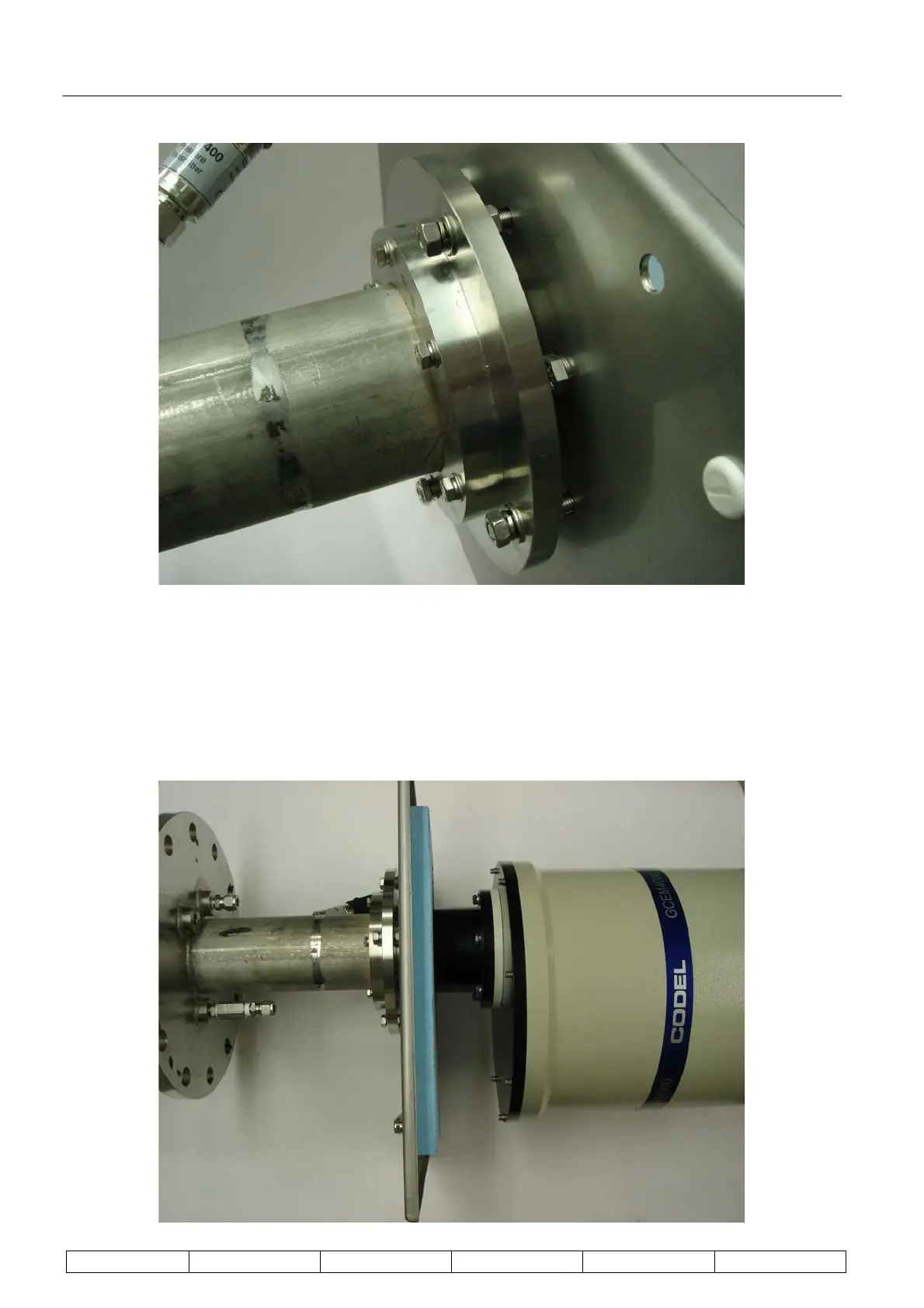

h) Referring to the illustration below, replace the sensor head mount and weather cover front plate
onto the probe ensuring that it is in the same orientation as when it was removed. Secure in place
with the M8 spring/flat washers and M8 x 1 pitch nuts.
i) The sensor head may now be fitted onto the head mount and secured in place with the mounting
screws as shown below. The cable from the sensor head should be passed through the largest of
the glands in the weather cover front plate (toward the probe) and routed to the GCU. The cables
from the thermocouple and pressure transmitter should be passed through the smaller glands
(toward the sensor head) and wired into the integral junction box at the rear of the sensor head.
