e-mark create marking device Chapter 5 Operation
CODI Standard 1.0 34/60
Operating and Maintenance Manual

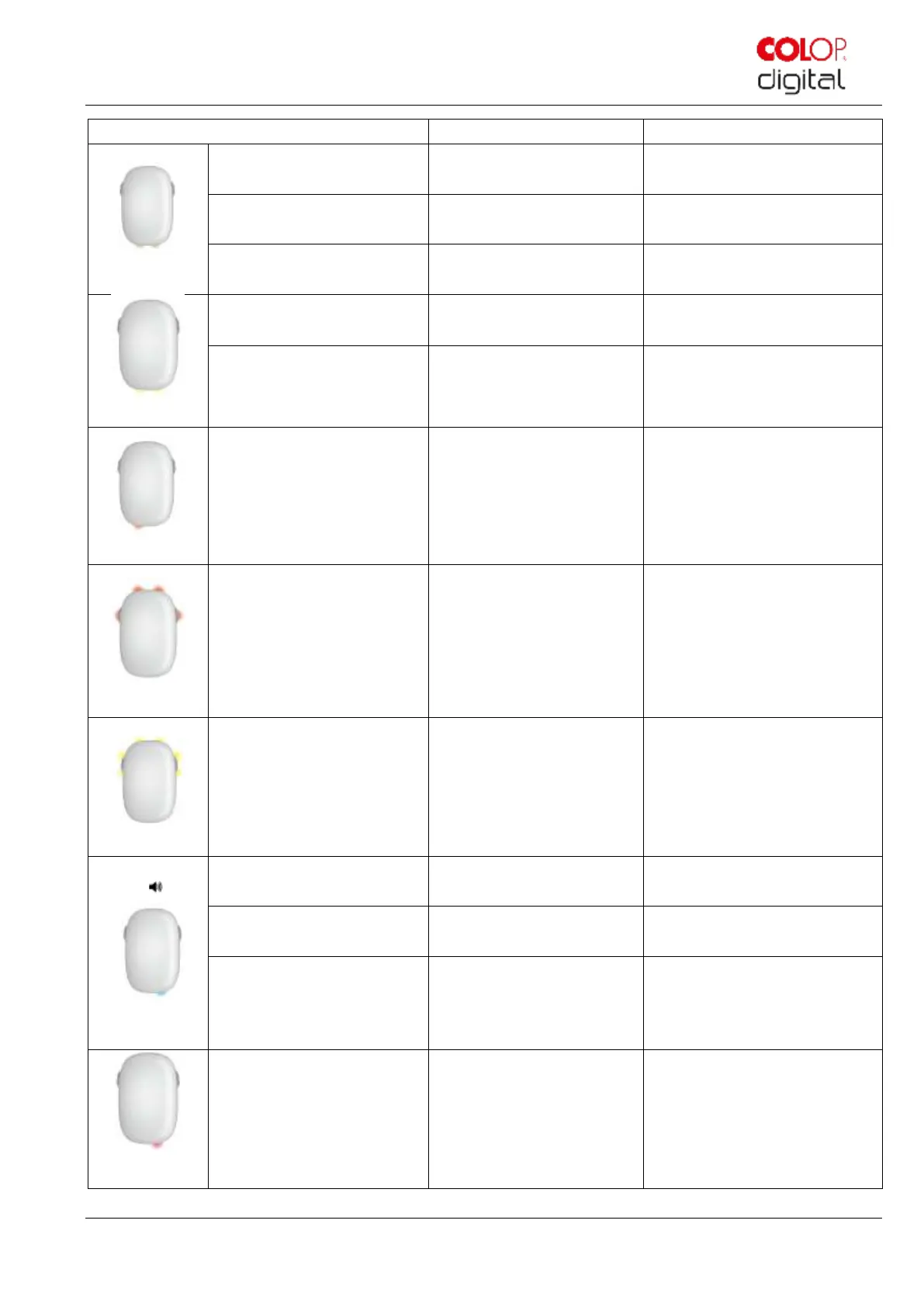

Light Guide
Designation
Description
LED 1, 7
Green light (only LED 1)
Battery level indicator
(sufficient)
The battery level is between 25
and 100 %
During charging
Green light
Charge indicator light
The battery is fully charged
(100%)
During charging
Flashing Green light
Charge indicator light
The battery is charged
(between 50% and 99%)
LED 1, 7
Yellow light (only LED 1)
Battery level indicator (low)
The battery level is between 10
and 24 %
During charging
Flashing Yellow light
Charge indicator light
The battery is charged
(between 0 % and 49 %)
LED 1
Red light
Battery level indicator (very
low)
The device must be charged
battery level lower than 10%
LED 4A, 4B, 8, 9
Flashing Red light front and
side
No ink cartridge inserted
The ink cartridge must be
inserted (correctly)
LED 4A, 4B, 8, 9
Flashing Yellow light front
and side
Wrong ink cartridge inserted
The right ink cartridge must be
inserted
LED 7
Blue light
WIFI connection
e-mark create has an active
WIFI connection
Flashing Blue lights and
sounds
WIFI connection
The WIFI connection has just
been established
Continuous blue flashing light,
sound at the end
An image is being transferred
An image is being transferred to
the e-mark create via WIFI. A
long signal sounds when transfer
is complete
LED 7
Pink light
USB connection
e-mark create has an active
USB connection
