e-mark marking device Chapter 4 Initial operation
CODI Standard 1.0 Page 25 of 61
Operating and Maintenance Manual

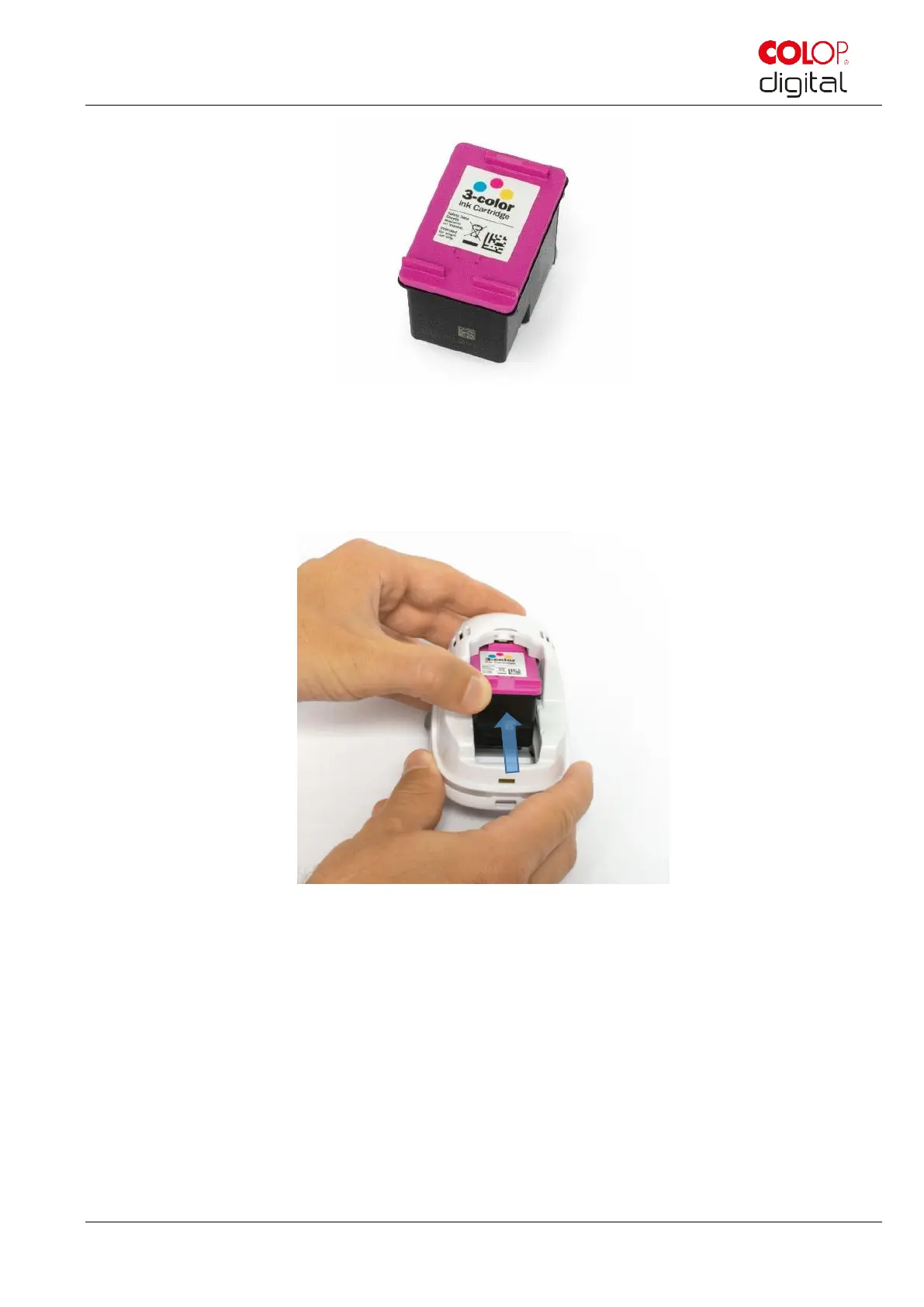

Fig. 12: Ink cartridge
 Insert ink cartridge
- Press towards the front end of the compartment.
- Cartridge snaps in.
Fig. 13: Insert ink cartridge
 Close lower flap cover
- Close the cover (click).
- The cover moves against the spring into the closed position.
