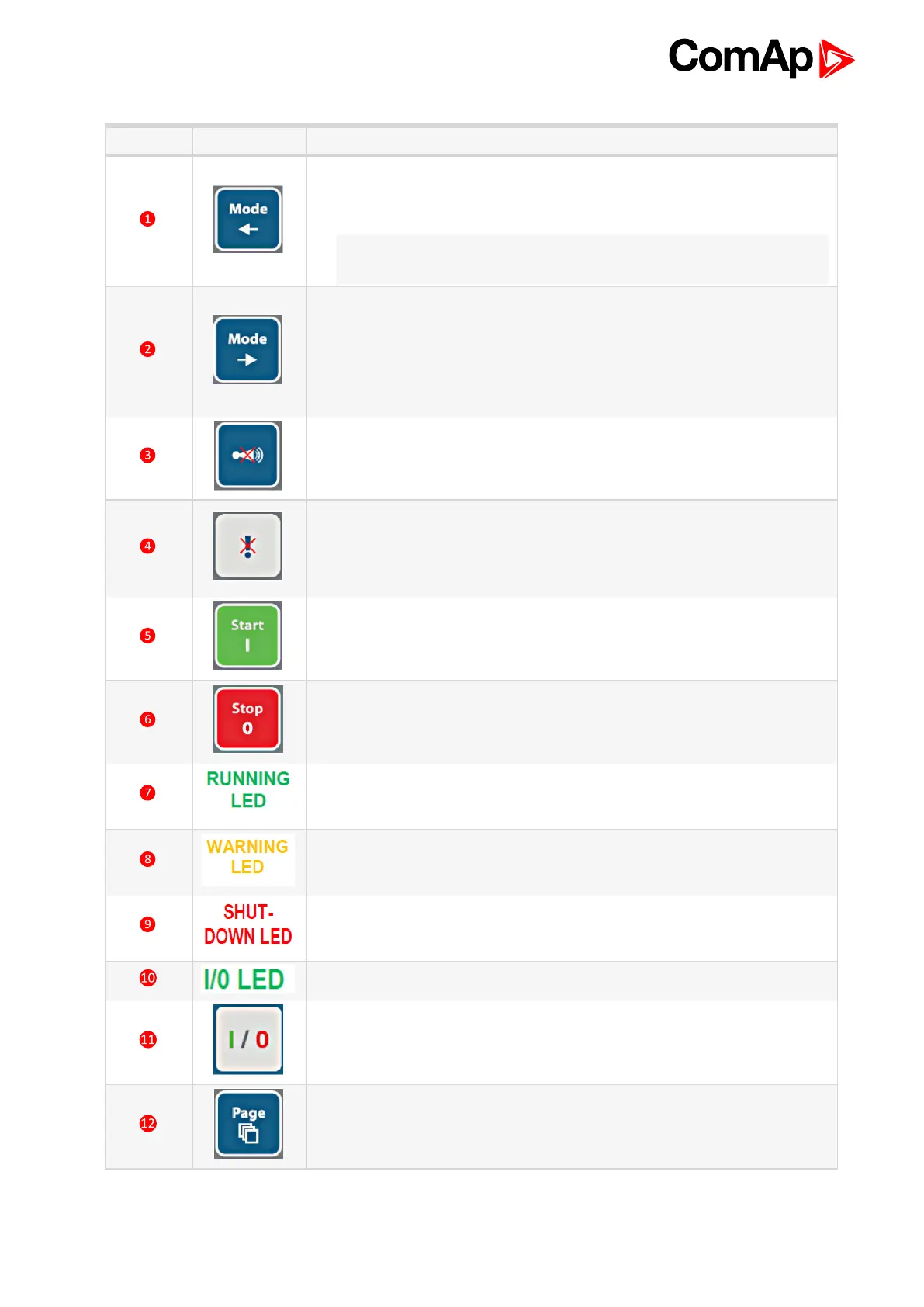

Number Button Description
MODE LEFT button. Use this button to change the mode. The button
works only if the main screen with the indicator of currently selected mode
is displayed.
Note: This button will not work if the controller mode is forced by one of
binary inputs Remote OFF, Remote MAN, Remote AUT, Remote TEST.
MODE RIGHT button. Use this button to change the mode. The button
works only if the main screen with the indicator of currently selected mode
is displayed.
Note: This button will not work if the controller mode is forced by one of
binary inputs Remote OFF, Remote MAN, Remote AUT, Remote TEST.
HORN RESET button. Use this button to deactivate the horn output
without confirmation of the alarms.
FAULT RESET button. Use this button to acknowledge alarms and
deactivate the horn output. Inactive alarms will disappear immediately and
status of active alarms will be changed to "confirmed" so they will
disappear as soon as their reasons dismiss.
START button. Works in MAN mode only. Press this button to initiate the
start sequence of the engine.
STOP button. Works in MAN mode only. Press this button to initiate the
stop sequence of the engine.
Engine running.
A failure but engine keeps running.
Engine is stopped because of red alarm.
Status of I/0 button.
ON/OFF button: according to the user setup, the button switches the
chosen parameter (TOGGLE (PAGE 217), NOMINAL/IDLE (PAGE 189),
CLOSE LOAD (PAGE 217) etc.)
PAGE button. Use this button to switch over display pages (see Display
screens and pages structure on page 54 for more details).
