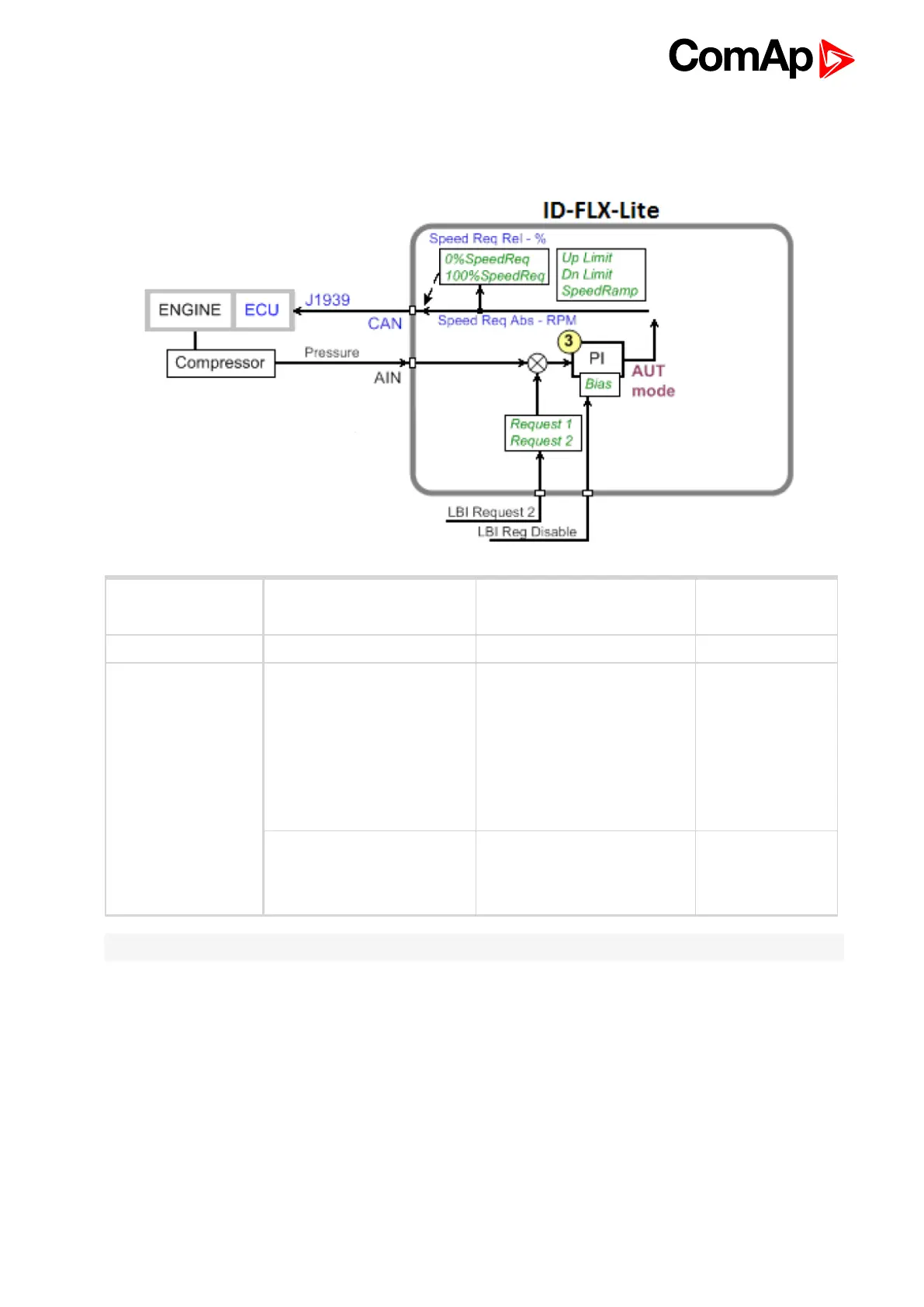

Pressure by RPM control via J1939
Actual pressure is measured via Analog input, compared with Requested value and the PI (function 3) output
controls the engine RPM via J1939.
Input
Binary input
Binary input
Request 2
R Reg Disable
(optional)
Output Analog output Speed Request
Setpoints
Regulator
Reg Input
Reg Bias
Request
Request 2
Reg Gain
Reg Integral
Engine params
MinSpeedLim
MaxSpeedLim
Speed Ramp
Note: Take care if the Speed request in AUT mode is not limited by Speed Ramp (page 122).
Pressure by RPM control via Analog output
Actual pressure is measured via Analog input, compared with Requested value and the PI (function 3) output
controls the engine RPM via Analog output.
