RET System Section 15–Changing the Boresight (Pan)-Single SmartBeam™
Bulletin 639536 • Revision L October 2014 15-3
6. Click the Activate button (Figure 15-2) to apply changes to the boresight (pan) for this antenna.
Alternately, to exit the screen without sending any changes, click on the Close button. Antenna
movement will begin after the Activate button is applied.
A progress indicator bar (located to the left of Current AZ/Pan) will continually update for as long
as the move is in progress.
7. You will be notified when movement is complete (Figure 15-3).
If for any reason the move failed to reach the new boresight (pan) azimuth specified, you will be
notified of the failure.

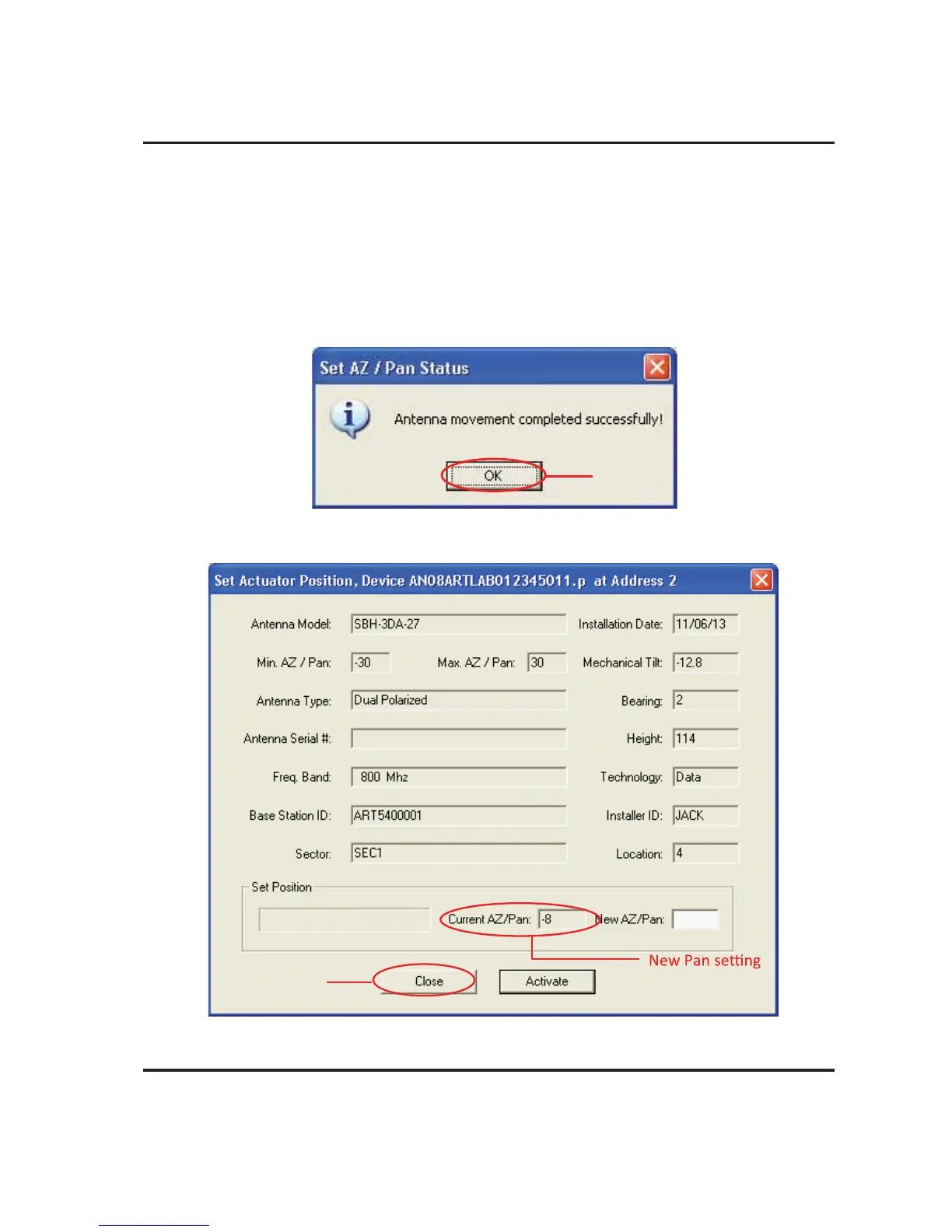

Figure 15-3. Boresight (Pan) Adjustment Complete.
Figure 15-4. New Boresight (Pan) Displays in Current AZ/Pan Field.
Click OK.
becomes current
Pan value.
Click Close.
