ATC200-LITE-USB Teletilt
®
RET System Section 8–Changing the Electrical Downtilt-Group
Bulletin 639536 • Revision L October 2014 8-4
10. You will be notified when all antennas
have successfully reached the new tilt
angle. Click OK (Figure 8-4).
11. The Set Electrical Tilt for Sector
screen will display the new electrical tilt
setting in the Current Tilt field. At this
point, either additional tilt angles may be
applied or you may return to the main
screen. To return to the main screen,
click Close (Figure 8-5).
12. After all electrical tilt adjustments are
made, a report can be saved to a file for
future reference (see Section 18).

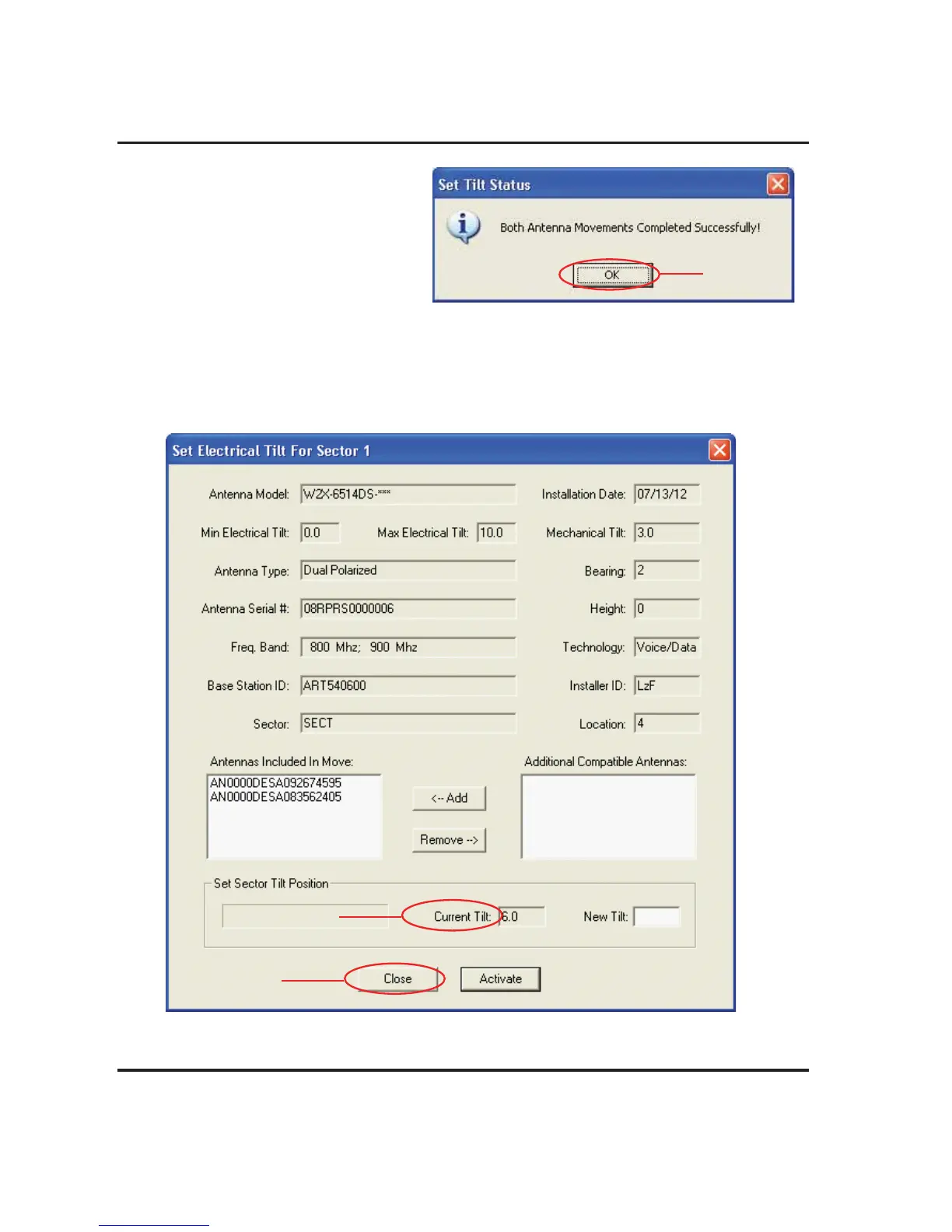

Figure 8-4. Movement Complete.
Figure 8-5. Closing Sector Move Screen.
Click OK.
Current Tilt.
Click Close.
