Installing CAP Ms

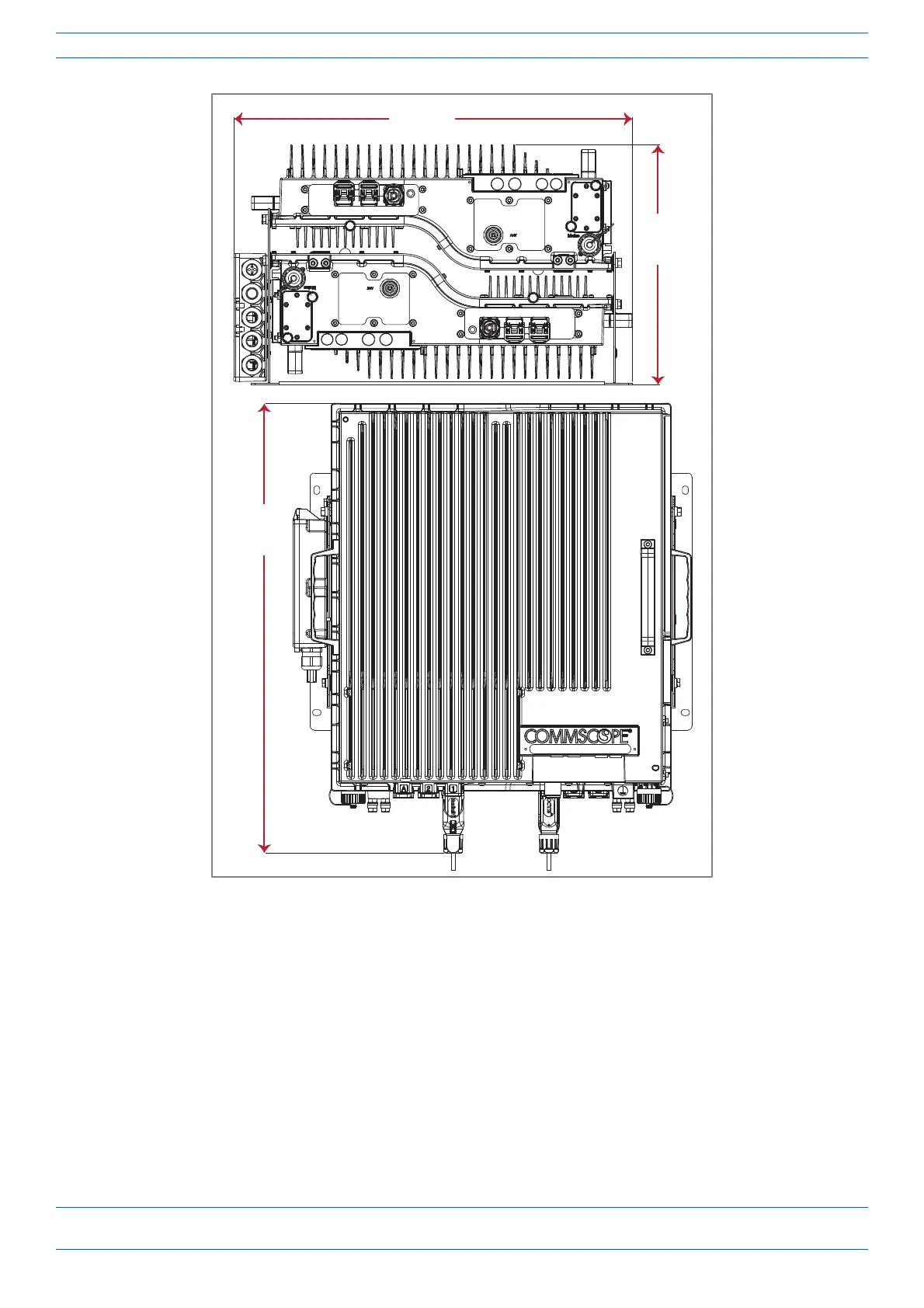

Figure 5. Mounting Dimensions with the Dual Mounting Bracket
502 mm
(19.74”)
302 mm
(11.88”)
565 mm
(22.26”)
