Medium Power Carrier Access Point Installation Guide M0201AJB
Page 42 © October 2018 CommScope, Inc.
Installing CAP Ms
Attach a Hybrid Fiber Splice Box to the CAP M
Followtheprocedurethatisappropriateforthisinstallation:
• "AttachingaHybridFiberSpliceBoxforaSingleMountInstallation”onpage42
• "AttachingaHybridFiberSpliceBoxforaDualMountInstallation”onpage44.
Attaching a Hybrid Fiber Splice Box for a Single Mount Installation

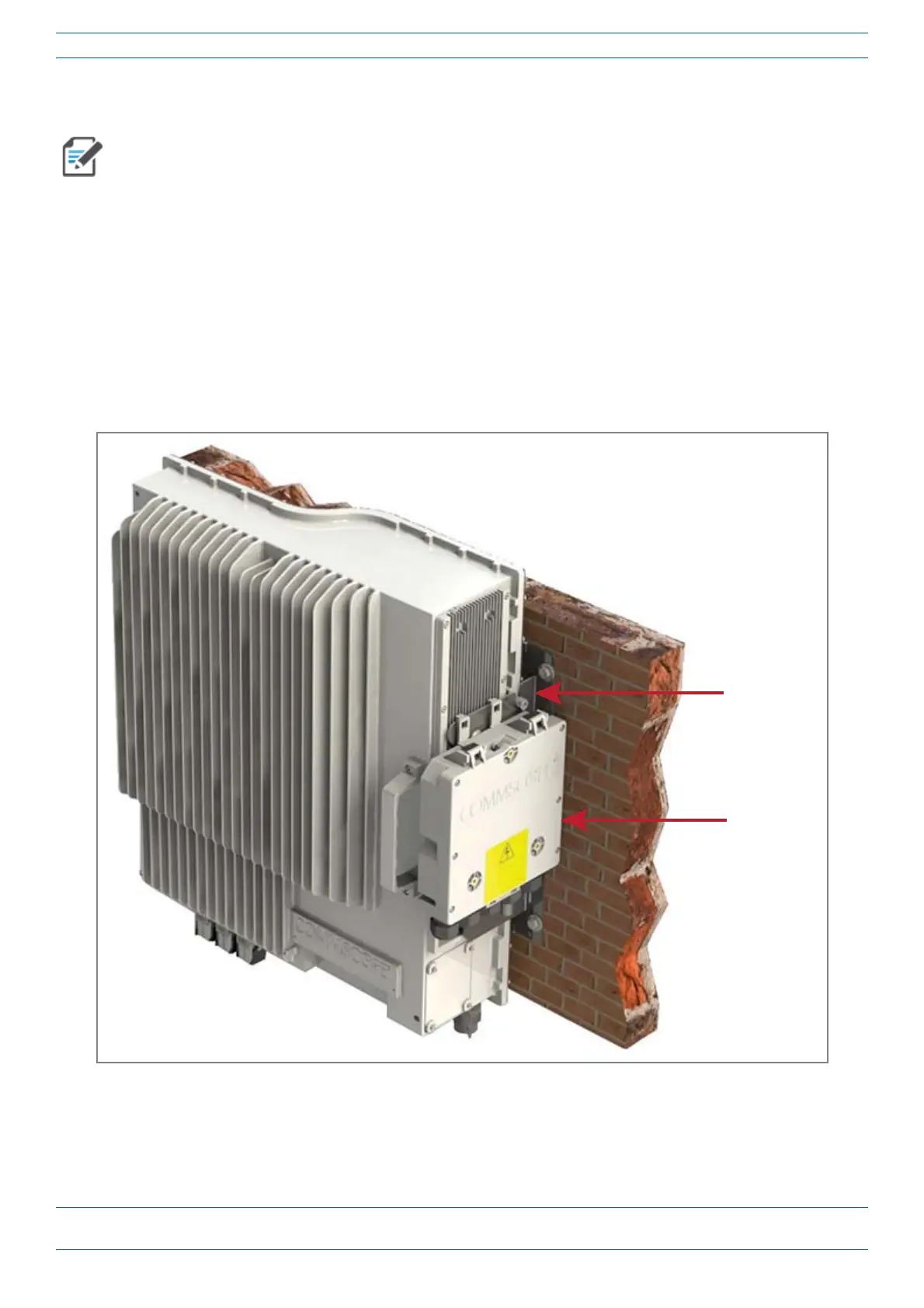

1 HangtheSpliceBoxontotheSingleMountingBracketontheright-handsideoftheCAPM,asshown
below.
The steps in this section pertain only to those installations that require the use of the optional Hybrid
Fiber Splice Box to provide fiber and power to the CAP M. If the optional Hybrid Fiber Splice Box is not
required for this installation, skip to "Grounding the CAP M” on page 46.
Single
Mounng
Bracket
Hybrid Fiber
Splice Box
