CommScope Era CAP M 9 - Connect the CAP M Cables; Obtain the Required Cable Material

M0201AJB Era
™
Medium Power Carrier Access Point Installation Guide
© October 2018 CommScope, Inc. Page 43
Installing CAP Ms

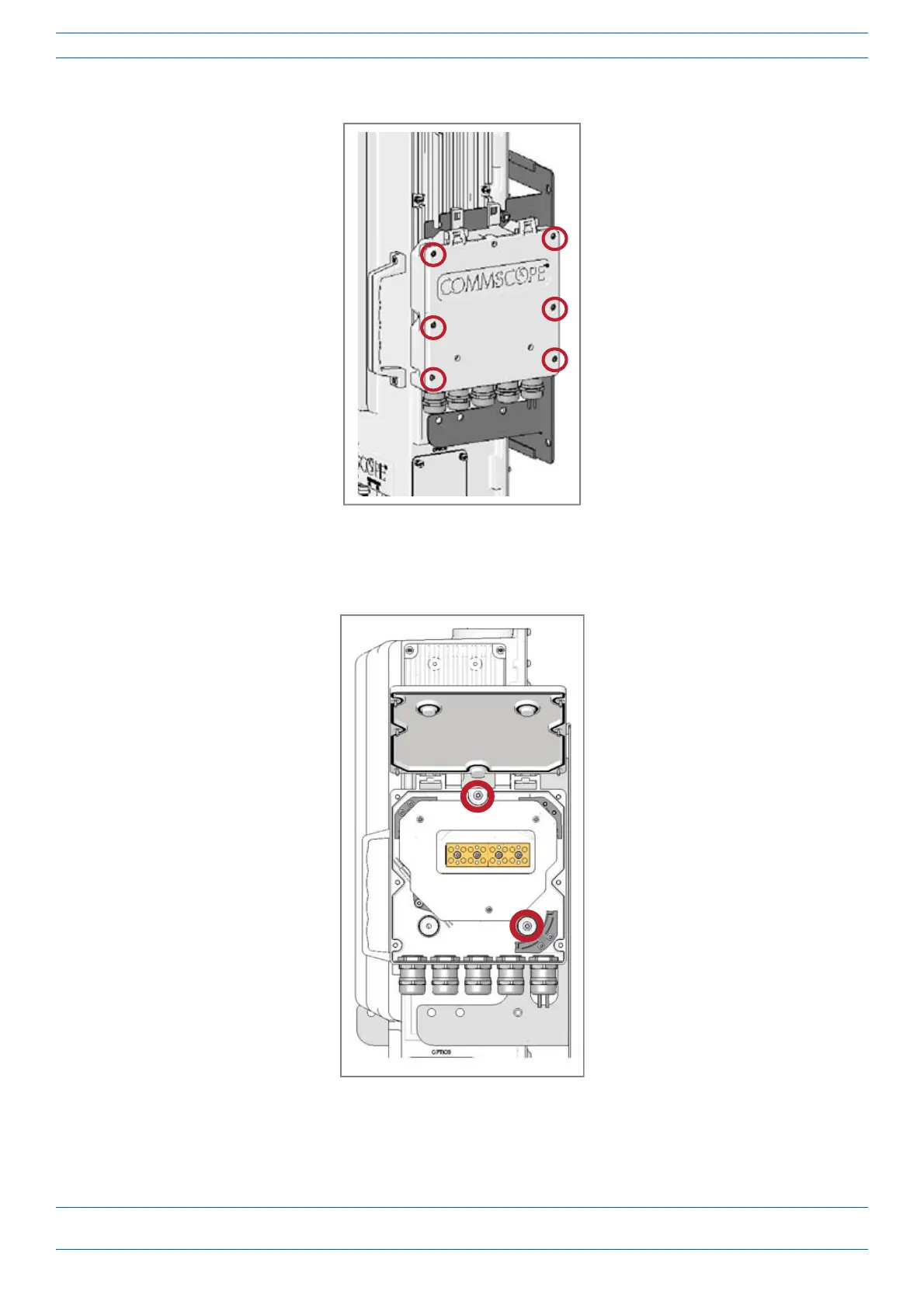

2 Removethesixneckscrews(shownbelow)fromthefrontcoveroftheSpliceBox.
3 OpentheSpliceBox.
4 AttachanM4x25pan-headscrewtotheupperhole,andasecondM4x25pan-headtotheholeonthe
lower,right-handsideoftheSpliceBox.
5 ClosetheSpliceBox.
6 ReplacethesixneckscrewsthatyouremovedfromthefrontcoveroftheSpliceBoxinStep2onpage43.
7 Goto"GroundingtheCAPM”onpage46.
