DEEP LEARNING PLUS USER MANUAL

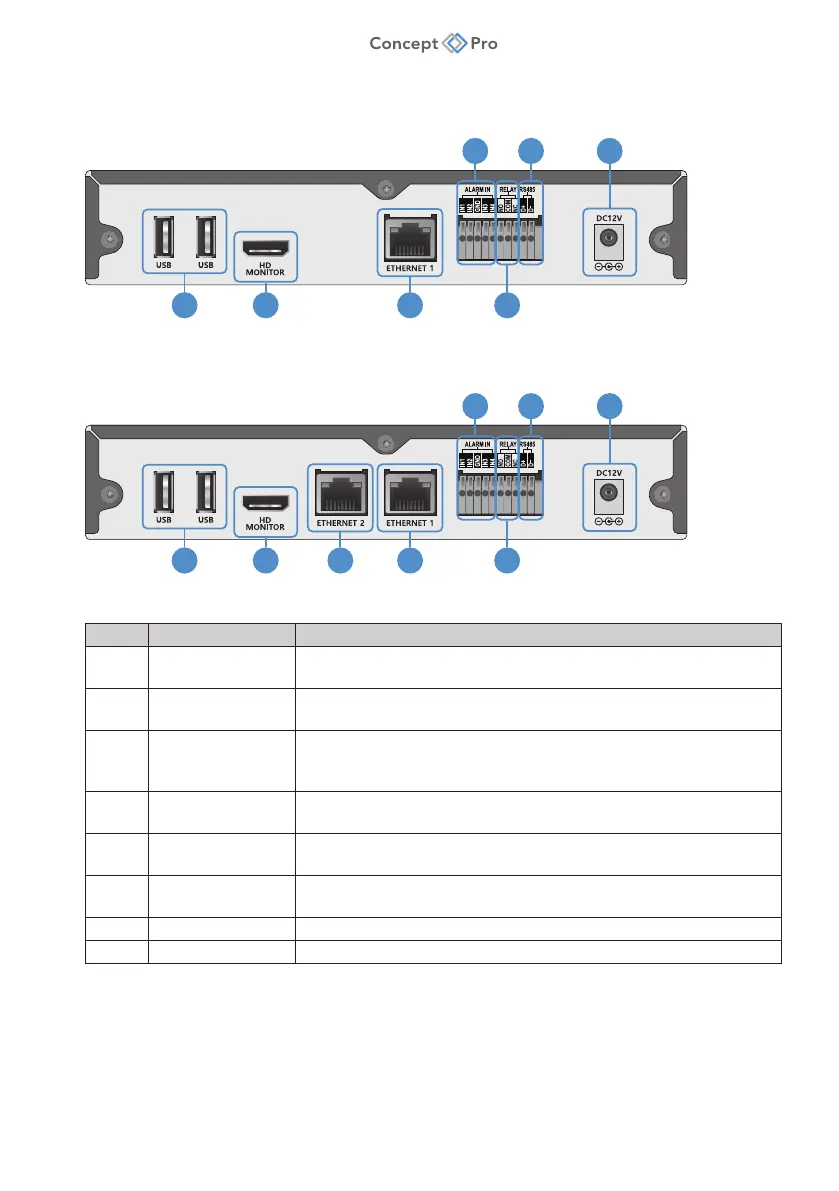

REAR PANEL OVERVIEW
DL PLUS-4
1
5
3 72
6 8
DL PLUS-8 & DL PLUS-16
41
5
3 72
6 8
No. Item Description
1 USB Universal Serial Bus (USB) ports for additional devices
(e.g., USB storage device for firmware upgrade).
2 HD MONITOR HDMI port for connection to monitor to view live video.
Note: DL PLUS cannot be configured locally.
3 ETHERNET 1 RJ-45 port for network connection. Allows DL PLUS device
configuration, interoperation with VMS, video recorder, and IP
camera equipment.
4 ETHERNET 2 RJ-45 port for connecting IP cameras and other equipment in a
separate network environment.
5 ALARM IN Alarm input signal terminal for connection with alarm sensor
equipment.
6 RELAY Alarm output relay terminal for connection with external alarm
equipment.
7 RS485 RS-485 communication device connection terminal.
8 DC12V DC12V power input for included power supply adapter.
