DEEP LEARNING PLUS USER MANUAL
70
DISPLAY
DL PLUS annotated video on-screen display options and video streaming quality settings can
be configured.
ON-SCREEN DISPLAY (OSD)
The DL PLUS product can provide an annotated video stream via RTSP for integration with
video players (e.g., VLC Player) or other video management software. The annotations can be
customised to display items such as object bounding boxes or trajectories. The annotated video
will display from the DL PLUS HDMI display output, or the RTSP video stream URL for the multi-
view or single channel view can be found from the <LIVE> tab (please refer to the section above
on Live overview for more information).
To configure the OSD annotation settings, please follow the steps below:

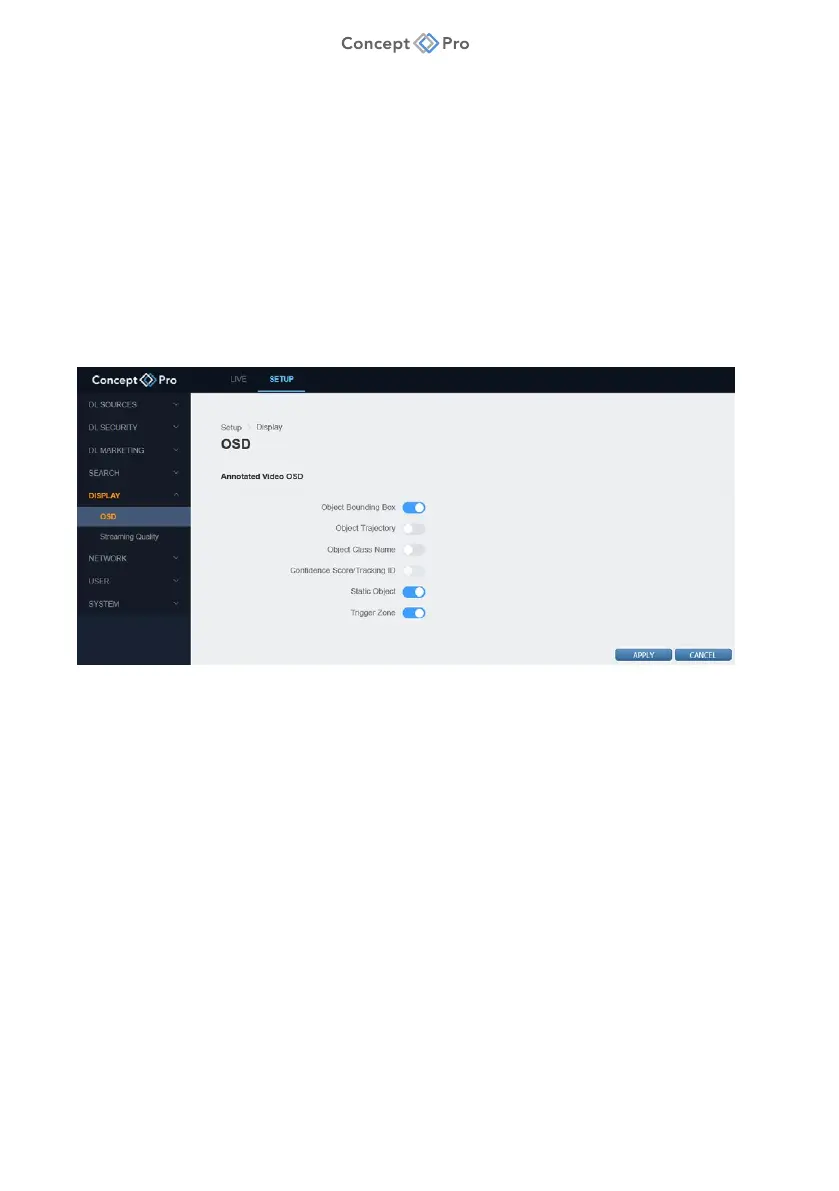

1. From the <SETUP> tab, select <DISPLAY> - <OSD> menu.
2. Configure the Annotated Video OSD settings as below:
a. Object Bounding Box: Displays a box around a detected object. Grey boxes appear
around objects in a static state. White boxes appear around objects in a dynamic
state. Purple boxes appear for a few seconds around an object that triggers a
configured Action Rule event.
b. Object Trajectory: Displays a line indicating the path of the detected object as it is
tracked.
c. Object Class Name: Displays the detected object type (person/bike/car).
d. Confidence Score/Tracking ID: Displays the confidence percentage in the detected
object classification and tracking ID number. Can be useful for debugging DL
performance.
e. Static Object: Displays a box around detected static objects.
f. Trigger Zone: Displays the configured DL Trigger lines/areas.
3. When finished, click <APPLY> to save these settings.
