RS485
A custom event notification message can be configured to transmit via DL PLUS rear panel RS-
485 port to external equipment, such as access control platforms.
To configure a RS485 Event Action, please follow the steps below:

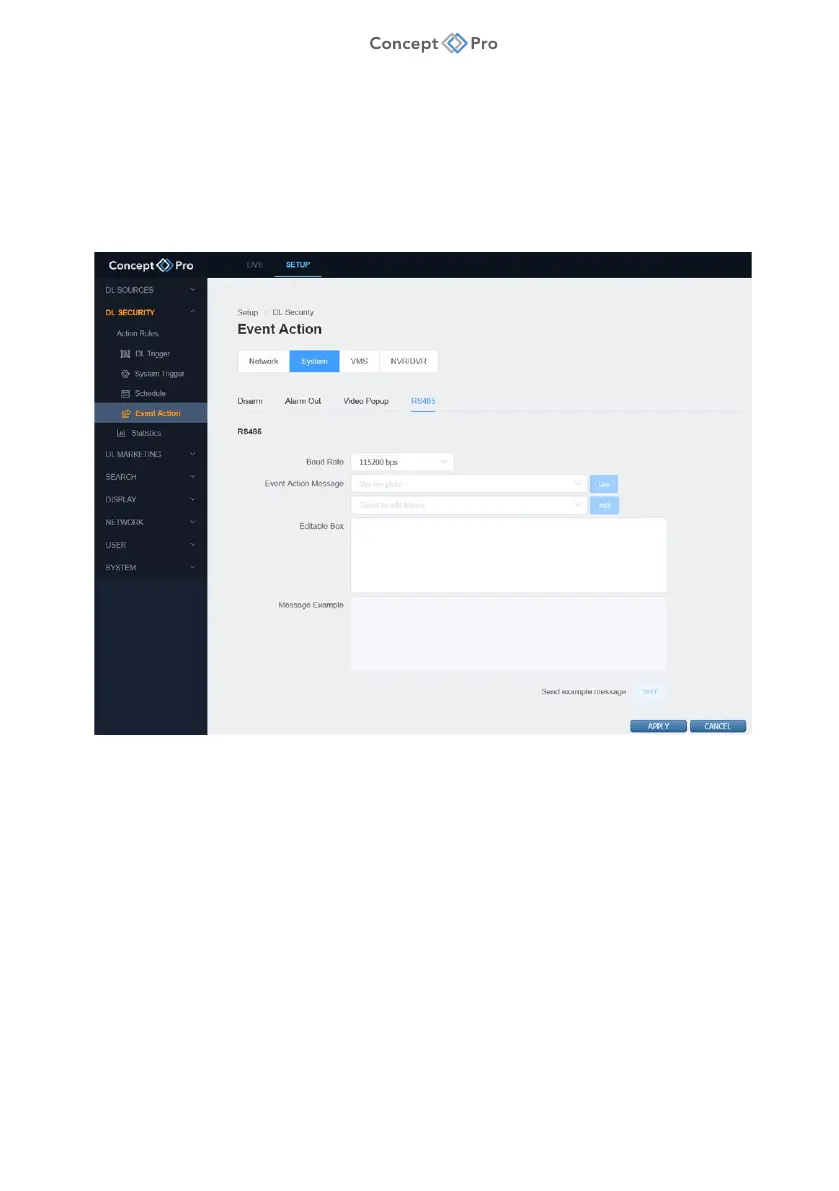

1. From the <SETUP> tab, navigate to <DL SECURITY> - <EVENT ACTION> menu.
2. Select the <SYSTEM> - <RS485> tab.
3. Review and configure the RS485 parameters shown:
a. Baud Rate: Set the baud rate for RS485 transmission (2400-115200 bps; please refer
to the RS485 equipment user manual for supported baud rates).
b. Event Action Message: Select to use a pre-existing event template or create a custom
template to contain only the information required. Templates include Sureview XML,
JSON, JSON (pretty), Simple Message, Basic Message, and Object List. Select any
additional information tokens from the dr
op-down menu and click <ADD> to add
upon an existing or custom template.
c. Editable Box: Move tokens around and make the template fit a desired format.
d. Message Example: Displays an example of the configured template.
e. Send Example Message: Click <TEST> to send a test RS485 command to confirm
the connection is working.
4. When all parameters are configured, click <APPLY> to save the settings.
