Condair UDC - Page 111

111Condair MHD

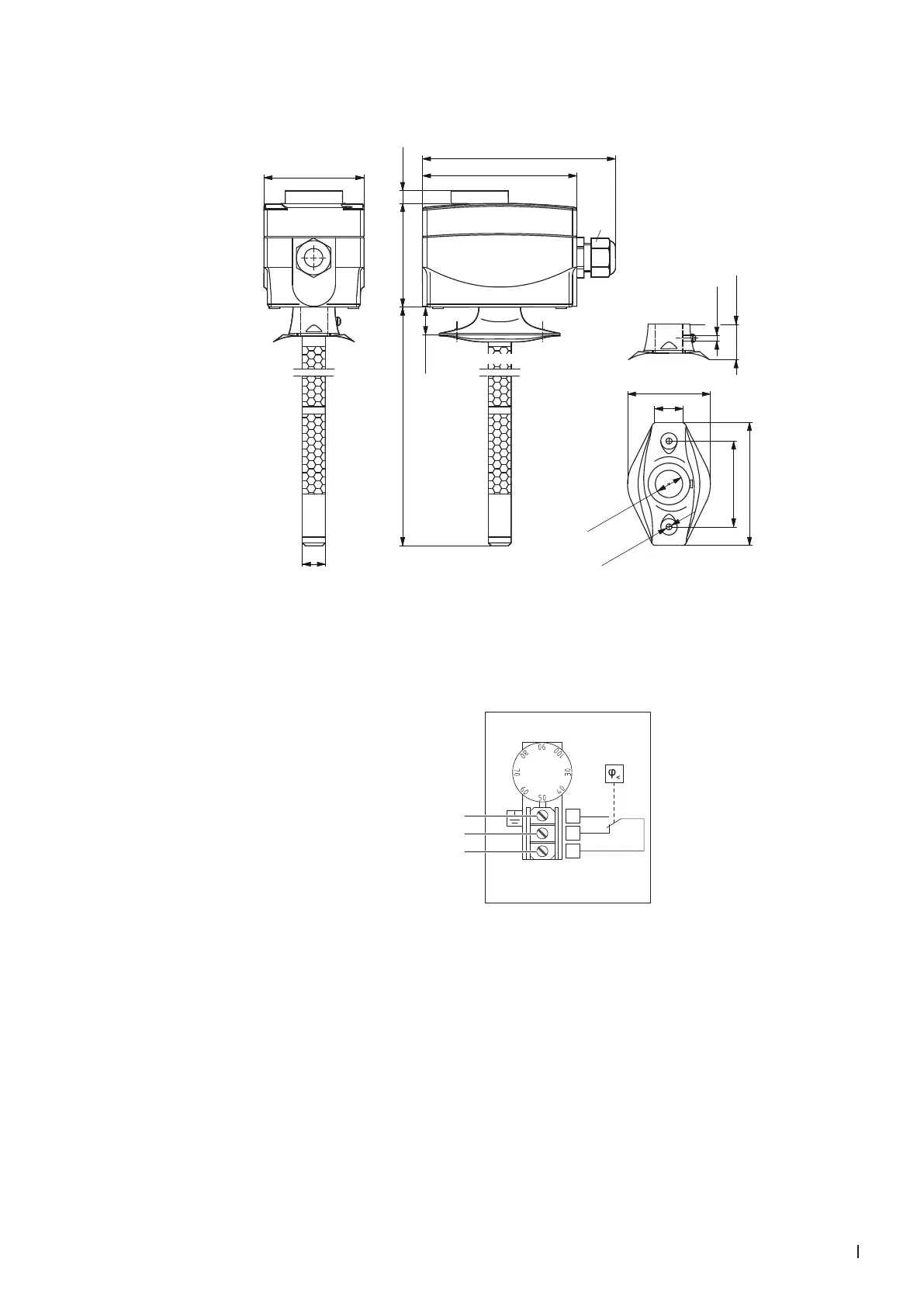

8.6.2 Dimensions MHD
70 (2.76)
ø20
(0.79")
~135 (5.31)
108 (4.25)
73.5 (2.89)~223 (8.78) 9 (0.35)
21 (0.83)
M20x1.5
~25 (0.98)
ø3 (0.12)
20 (0.79)
58 (2.28)
60 (2.36) 86 (3.39)
ø20.2 (0.80)
ø5.2 (0.30)
Dimensions in mm (inches)
8.6.3 Wiring diagram MHD
Dehumidication
Humidication
2
4
1
