120 Condair MHR
9.7 Connecting the MHR to Condair units

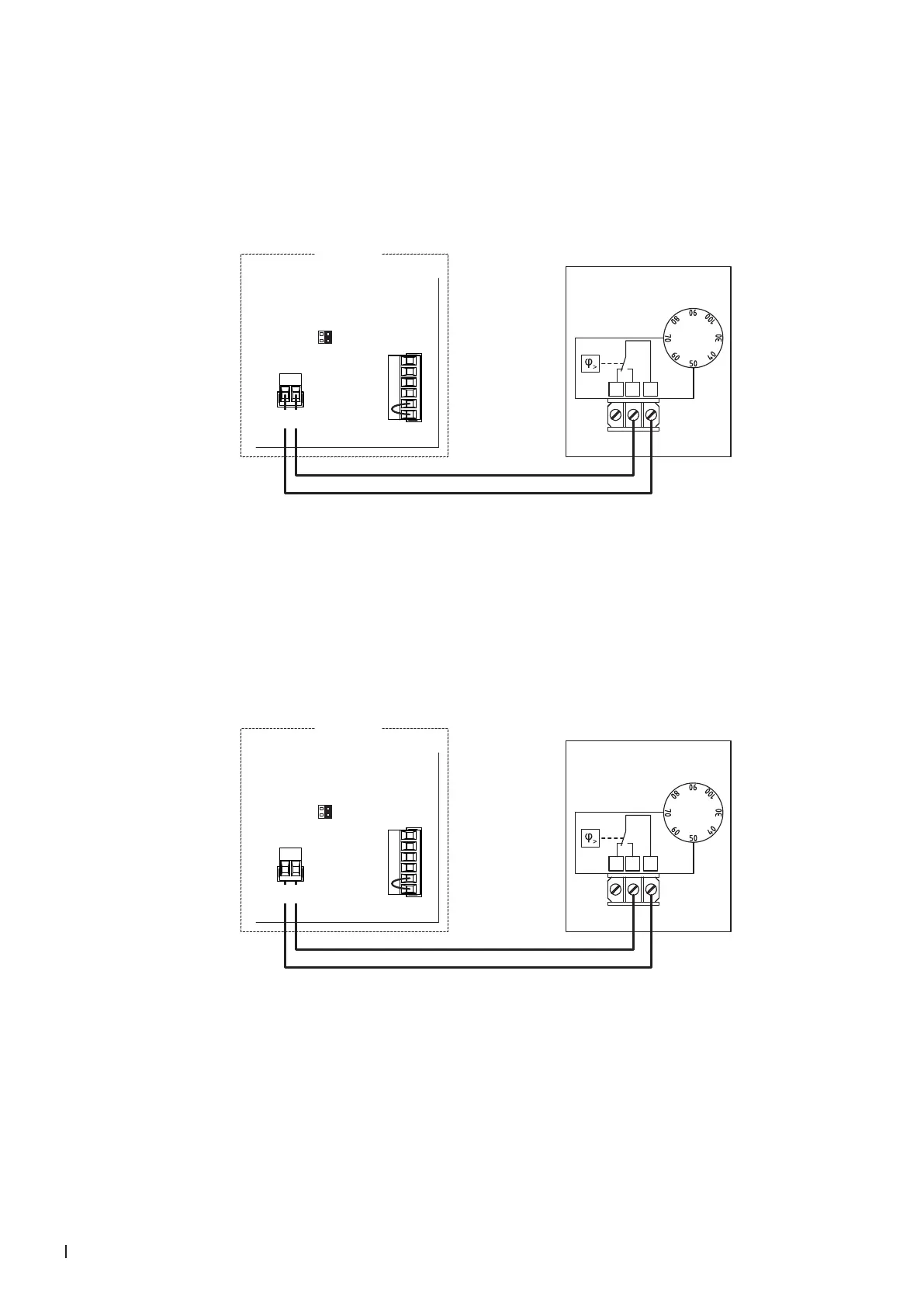

9.7.1 Connecting the MHR to the Condair DL
Connect the Condair MHR to the corresponding terminals on the driver board of the Condair DL accord-
ing to the following diagram
MHR
4 2 1
X1
X16
JP5: 10V JP4: 24V
24/10 V
TMP
GND
HUM
24V E
Enable
SC2 SC1
Condair DL
Driver board Condair DL
9.7.2 Connecting the MHR to the Condair ME
Connect the Condair MHR to the corresponding terminals on the driver board of the Condair ME ac-
cording to the following diagram
MHR
4 2 1
X1
X16
JP5: 10V JP4: 24V
24/10 V
TMP
GND
HUM
24V E
Enable
SC2 SC1
Condair ME
Driver board Condair ME
