2.7 Wiring diagrams/Conguration

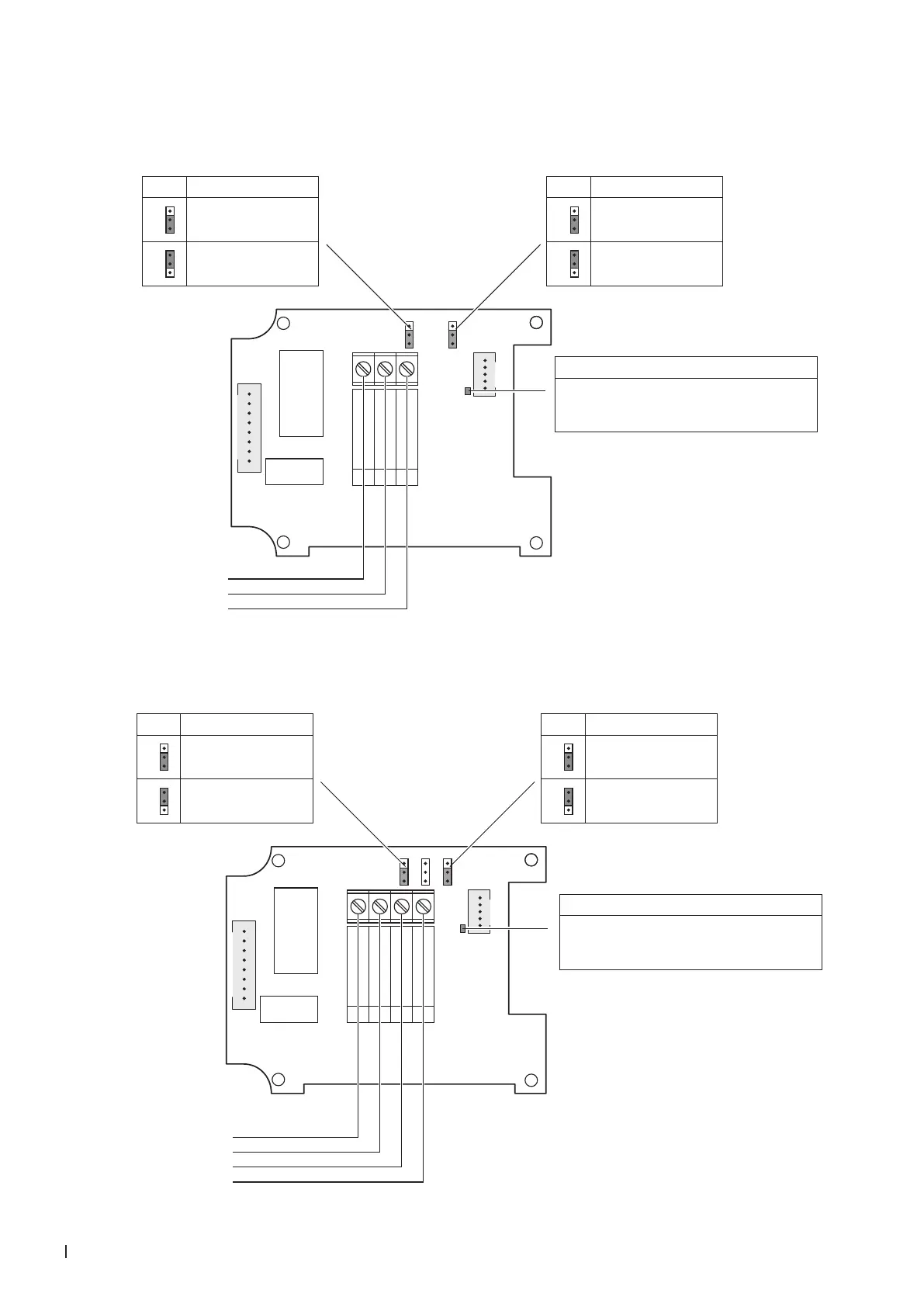

2.7.1 Wiring diagram/Conguration Condair CDC
2.7.2 Wiring diagram/Conguration Condair CDC-ST
24V AC/DC
1
0V / GND
2
H OUT
3
JP1 JP3
RH OUT
0V / GND
24 V AC/DC ±10%
STATUS
LED
JP1 Signal type
3
2
1
U1
0-10V, 2-10V
3
2
1
I1
0-20mA, 4-20mA
JP3 Signal range
3
2
1
U1: 0-10V
I1: 0-20mA
3
2
1
U1: 2-10V
I1: 4-20mA
Status LED
No light: no power
5 s blinking: Normal
1 s blinking: Sensor element defective
STATUS
LED
JP1 JP2 JP3
24V AC/DC
1
0V / GND
G G0
2
AO RH
3
AO T
U1 U2
4
T OUT
RH OUT
0V / GND
24 V AC/DC ±10%
JP1 Signal type
3
2
1
U1
0-10V, 2-10V
3
2
1
I1
0-20mA, 4-20mA
JP3 Signal range
3
2
1
U1: 0-10V
I1: 0-20mA
3
2
1
U1: 2-10V
I1: 4-20mA
Status LED
No light: no power
5 s blinking: Normal
1 s blinking: Sensor element defective
