112 Condair MHD
8.7 Connecting the MHD to Condair units
8.7.1 Connecting the MHD to the Condair DL

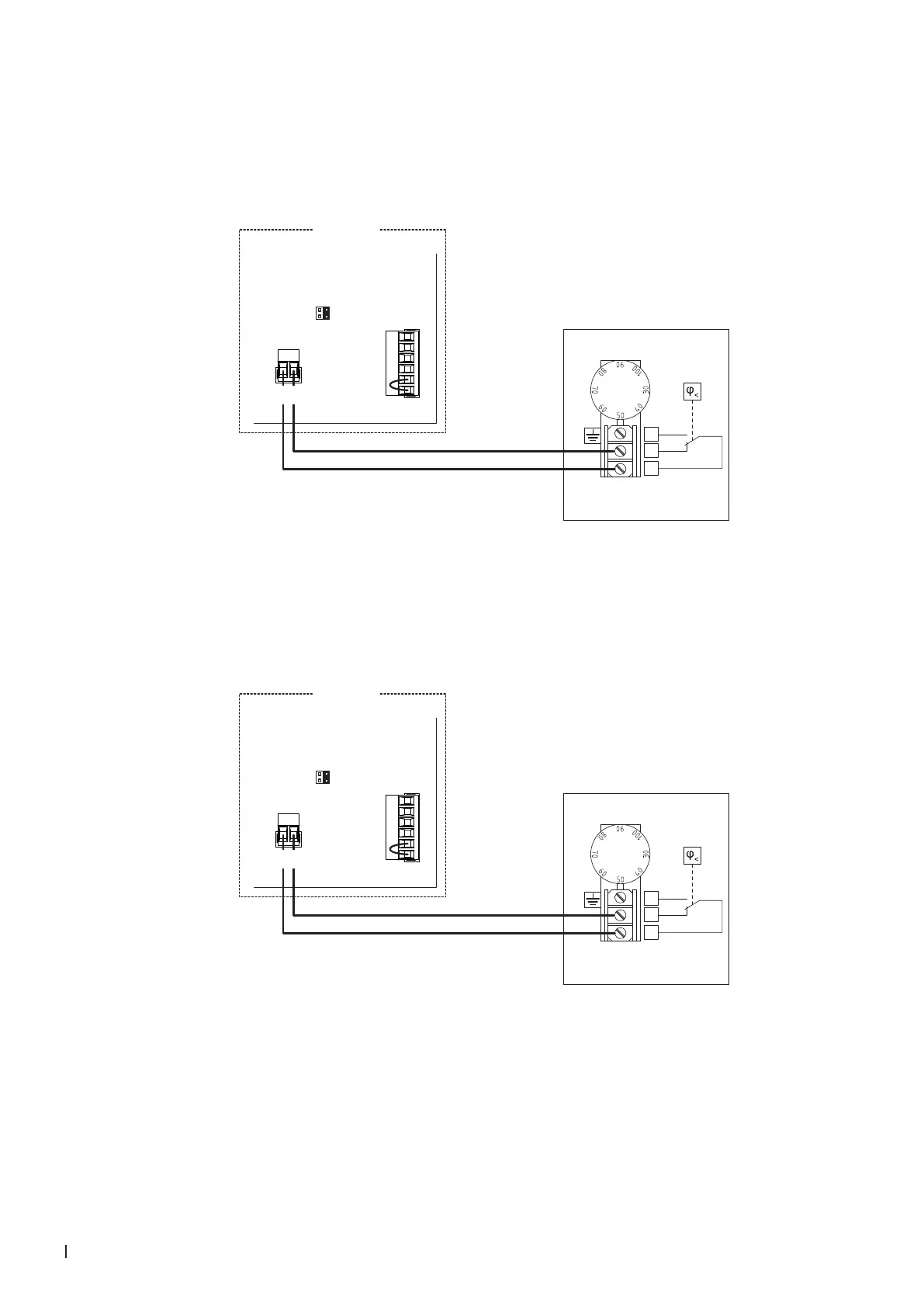

Connect the Condair MHD to the corresponding terminals on the driver board of the Condair DL accord-
ing to the following diagram
Driver board Condair DL
X1
X16
JP5: 10V
JP4: 24V
24/10 V
TMP
GND
HUM
24V E
Enable
MHD
SC2
SC1
Condair DL
2
4
1
8.7.2 Connecting the MHD to the Condair ME
Connect the Condair MHD to the corresponding terminals on the driver board of the Condair ME ac-
cording to the following diagram.
X1
X16
JP5: 10V
JP4: 24V
24/10 V
TMP
GND
HUM
24V E
Enable
MHD
SC2
SC1
Condair ME
2
4
1
Driver board Condair ME
