11.7 Connecting the APS or APS-NA to Condair units

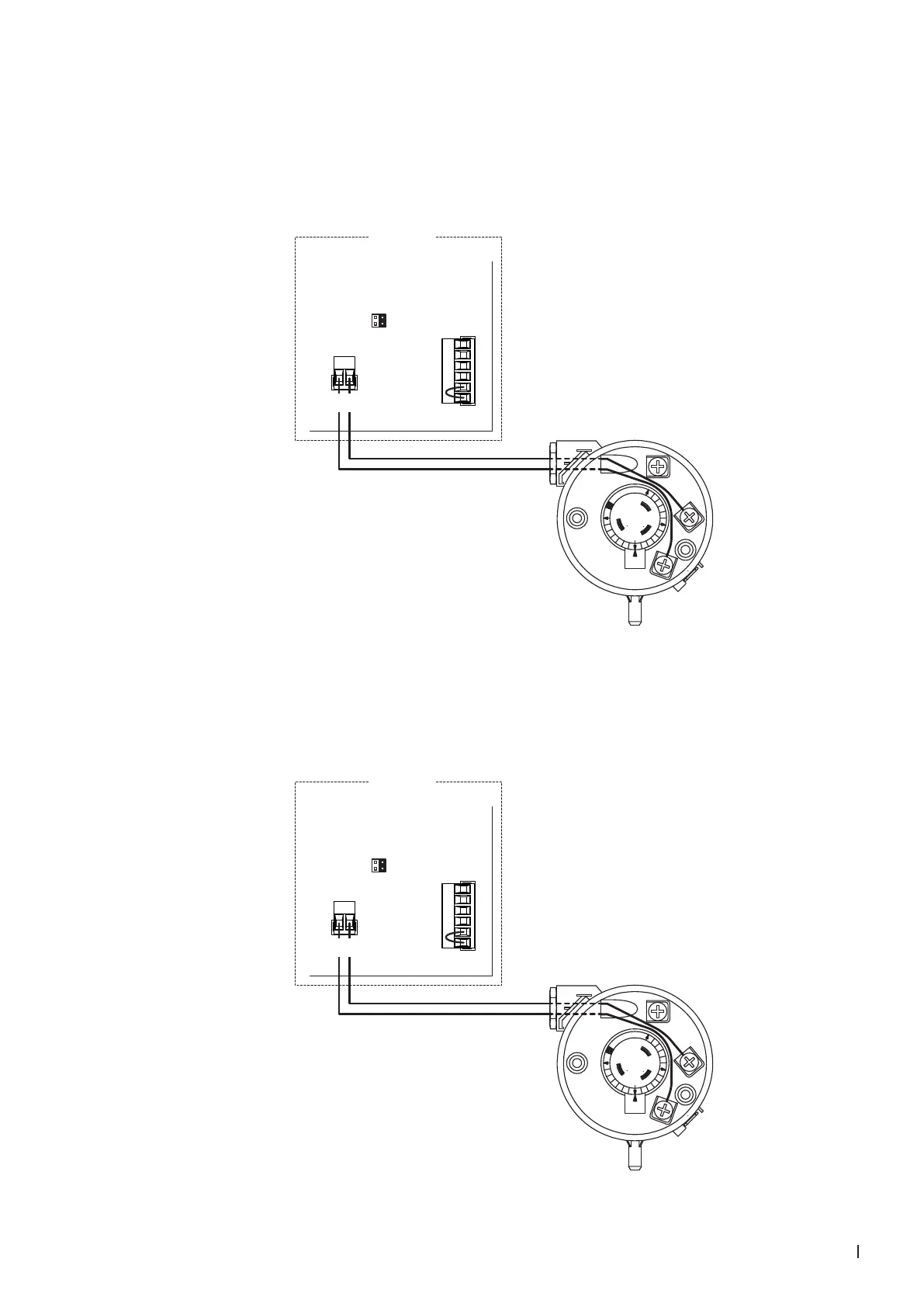

11.7.1 Connecting the APS or APS-NA to the Condair DL
Connect the Condair APS or APS-NA to the corresponding terminals on the driver board of the Condair
DL according to the following diagram.
X1
X16
JP5: 10V JP4: 24V
24/10 V
TMP
GND
HUM
24V E
Enable
Condair DL
1
3
2
SC2 SC1
APS / APS-NA
Driver board Condair DL
11.7.2 Connecting the APS or APS-NA to the Condair ME
Connect the Condair APS or APS-NA to the corresponding terminals on the driver board of the Condair
ME according to the following diagram.
X1
X16
JP5: 10V JP4: 24V
24/10 V
TMP
GND
HUM
24V E
Enable
Condair ME
SC2 SC1
1
3
2
APS / APS-NA
Driver board Condair ME
