23Condair CDC, CDC-NA, CDC-ST and CDC-SL

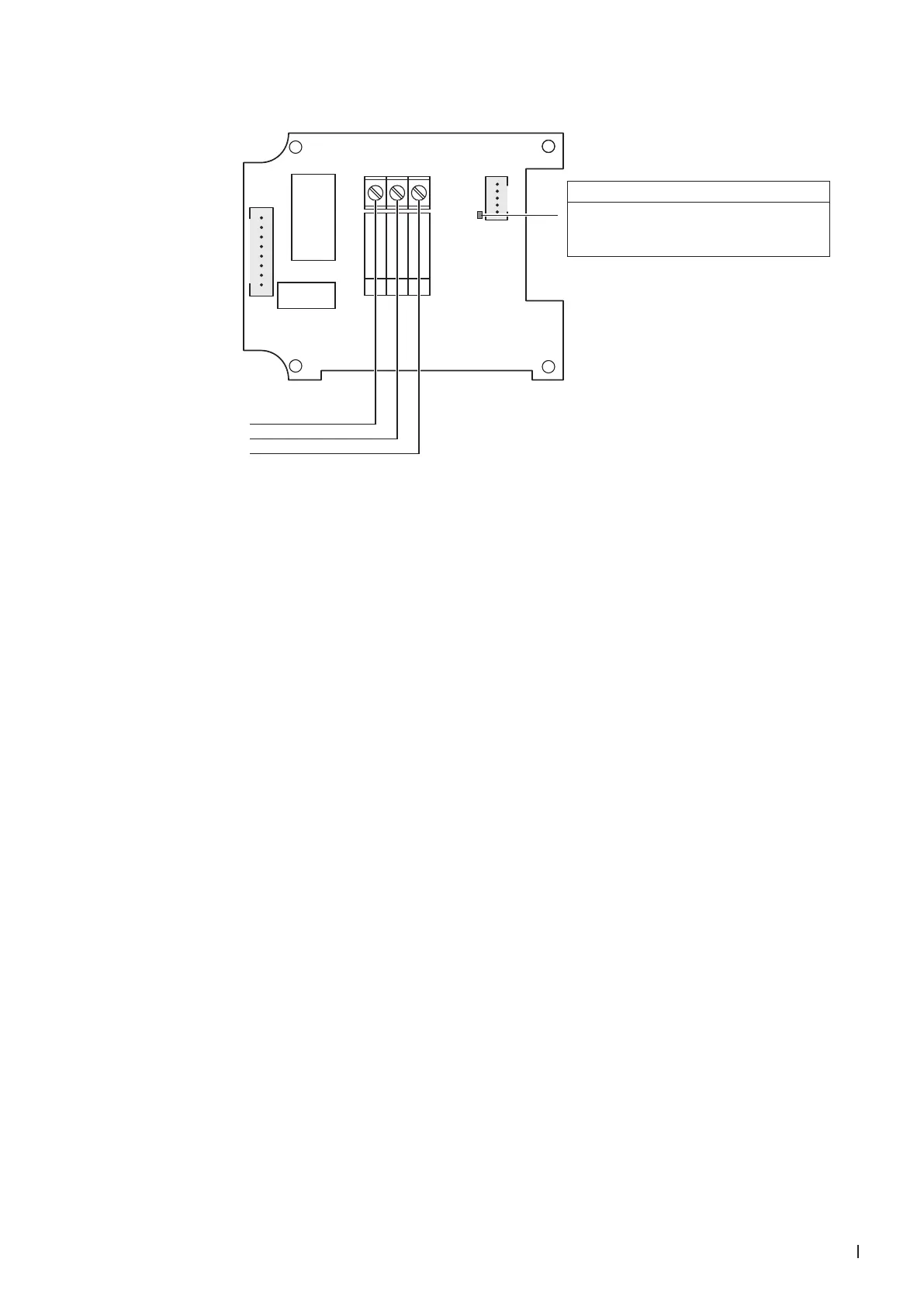

2.7.2.1 Wiring diagram Condair CDC-SL and CDC-NA
STATUS
LED
0V / GND
1
24V
2
H OUT
3
RH OUT
24 V AC/DC ±10%
0V / GND
Status LED
No light: no power
5 s blinking: Normal
1 s blinking: Sensor element defective
