9.7.7 Connecting the MHR to the Condair CP3mini

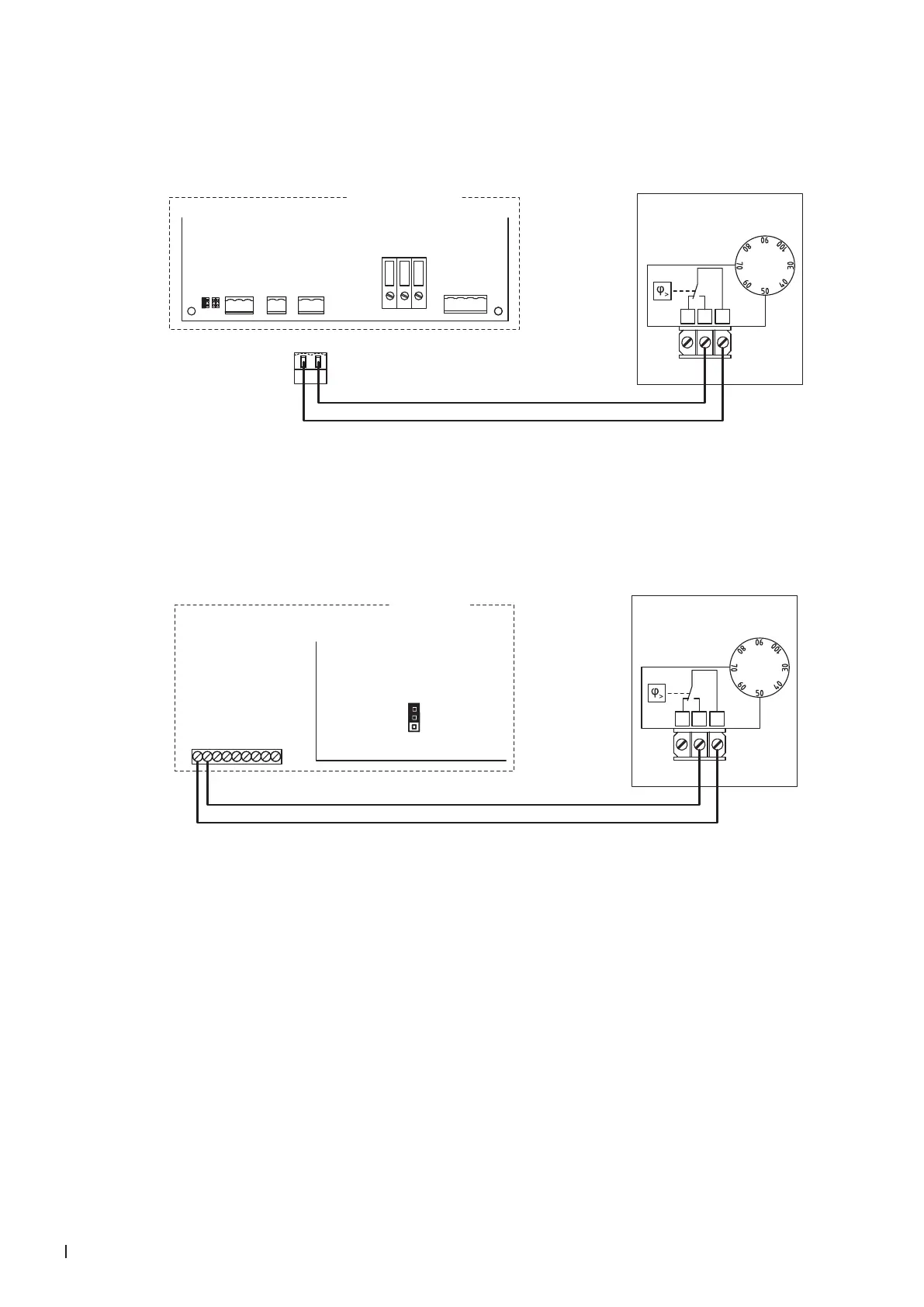

Connect the Condair MHR to the corresponding terminals of the terminal block "X6" on the power board
of the Condair CP3mini according to the following diagram.
X1 X4 X6
CTRL V+
1 21 21 2 3
GND
BASIC
0-10V
On/Off
24V
5V
PRO JP4 JP3 JP2 JP1
LIMGND SC1SC2
SAFETY
SC1SC2
Condair CP3 mini
PWR
MAIN SUPPLY
X9
L
N PE
X8
N L SW N SWL
MHR
4 2 1
Power board Condair CP3mini
9.7.8 Connecting the MHR to the Condair US
Connect the Condair MHR to the corresponding terminals of terminal block "XE2" of the Condair US
according to the following diagram.
J1
24V
10V
Condair US
Security (VDC) External Safety Loop Control Signal (GND) Control Signal (IN) Limit Signal (IN) Control Signal (V+) Limit Signal (GND) Safety Circuit Safety Circuit
1 2 3 4 5 6 7 8 9
XE2
MHR
4 2 1
